60 - 300 Mesh Magnetic Separator, Electro magnetic Equipment Medicine Plastics Lithium Battery
Price:
Negotiable
MOQ:
1set
Delivery Time:
Within 25 days after the advance payment is made
Brand:
ZT
Product Description

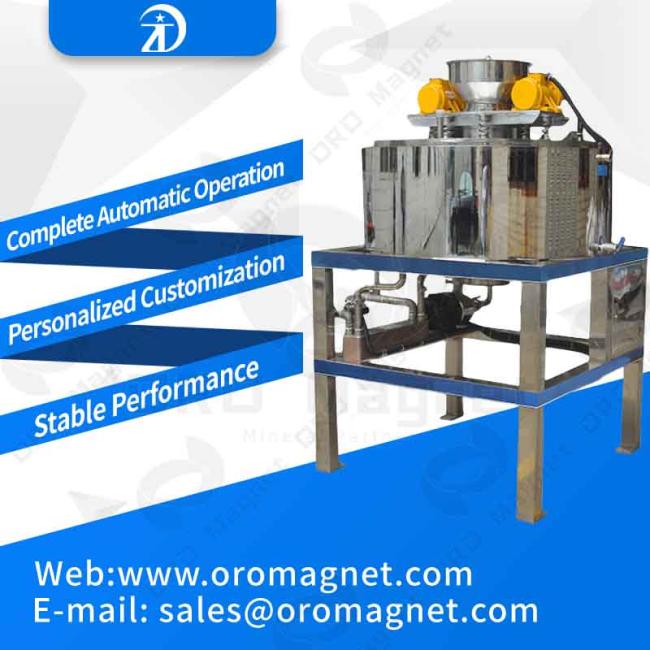

60-300 Mesh Magnetic Separator ,Electromagnetic Equipment for Lithium Battery
Magnetic separators are designed to separate ferrous materials from non-magnetic materials. The ferrous materials are usually impurities of varying particle size (from the micron level upto large pieces of tramp iron) and their extraction either improves the purity level of a bulk product or protects sensitive machinery (crushers, blades et.c) Separation techniques are also used in metal recycling to sort ferrous from non-ferrous material and for conveying cans in canning factories.
- Designed for maximum field strength and depth of magnetic field.
- Extremely robust structure
- Custom made units available upon request.
- Powerful, Oil-cooled electromagnet for 24hours continuous operation
- All Unit feature Class “H” insulation levels.
- For removing ferrous from shredded, crushed materials, industrial wastes, mined products, construction & demolition wastes, recyclables, electronic scraps, wood chips, glass, mould sand, etc
- Automatically removes ferrous from conveyed products.
- Comes complete with a Control panel.
- Extreme pulling power for fast moving processing materials
- Choice mounting / suspension style
Technical parameter
| Model | WG160B-V-3 | WG220B-V-3 | WG300-V-7 | WG220B-V-11 | WG430-V-11 | WG220-V-15 | WG600-V-20 |
| Magnetic field strength(t) | 2 | 2 | 3 | 3 | 3 | 5 | 3 |
| Input voltage(VAC) | 380 | 220 | 380 | 380 | 380 | 380 | 380 |
| Maximun output current(A) | 15 | 7 | 20 | 20 | 20 | 30 | 40 |
| Maximum coil power(KW) | 3 | 3 | 7 | 11 | 11 | 15 | 20 |
| Insulation category | E | E | E | E | E | E | E |
| Cooling method | water and oil cooling | water and oil cooling | water and oil cooling | water and oil cooling | water and oil cooling | water and oil cooling | water and oil cooling |
| Magnetic lumen diameter(mm) | 160 | 220 | 300 | 220 | 430 | 220 | 600 |
| Yield(m3/h) | 0.5-1.5 | 43833 | 1.5-4 | 0.5-3 | 1.5-6 | 1-3 | 3-8 |
| Dimension(mm) | 700*700 | 860*860 | 1320*1320 | 1300*110 | 1500*1500 | 1350*1100 | 1500*1500 |
| *1450 | *1540 | *2500 | *1800 | *2500 | *1850 | *2000 | |
| Main machine weight(kg) | 450 | 490 | 1020 | 1130 | 1210 | 1500 | 2000 |
| Usage | 60-300 mesh feedstock of iron elimination | ||||||
