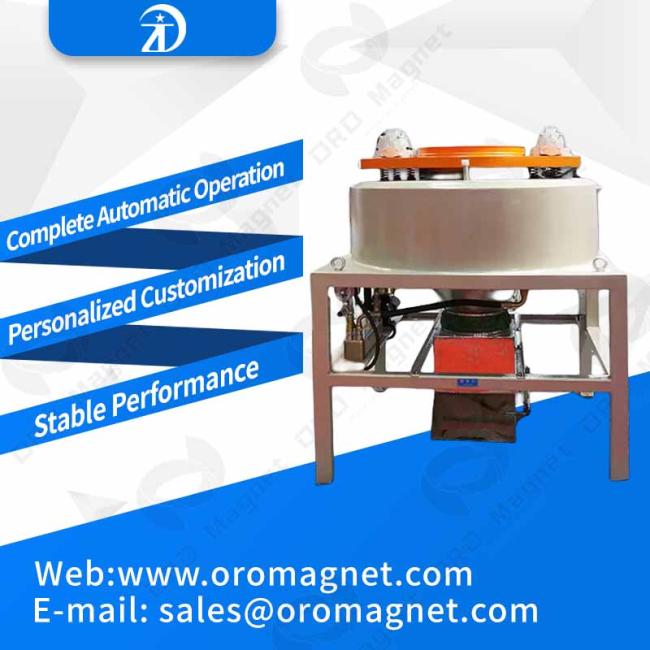

Dry Powder Mineral Permanent Electro Magnetic Separator Equipment 20A600 For Feldspar,quartz，medicine
Dry powder mineral permanent electromagnetic separator
1> The Application Scope: Clean the low magnetic material to improve the material grade from the industrial mineral, ceramic, abrasive materials, plastic, silicon sand, medicine, glass, founding, building material, the special material ,metal and electronicproducts grade, resources recovery and so on.
2> Structure
Manufactured with rare earth magnet and Kevlar belt, the surface can be over 17000 Gs after belt. The separator can clean silica, sulfur dioxide, stainless steel (SUS 304) from the material. The demagnetization is no morethan 6% after 10 years. Used for 0.03-3mm material.
The material also have flow arrangement according the the material dimension. The part flow system can be set on feeder or belt to confirm the material pass the strongest magnetic material to confirm the best purity.
| Model | WG160B-V-3 | WG220B-V-3 | WG300-V-7 | WG220B-V-11 | WG430-V-11 | WG220-V-15 | WG600-V-20 |
| Magnetic field strength(t) | 2 | 2 | 3 | 3 | 3 | 5 | 3 |
| Input voltage(VAC) | 380 | 220 | 380 | 380 | 380 | 380 | 380 |
| Maximun output current(A) | 15 | 7 | 20 | 20 | 20 | 30 | 40 |
| Maximum coil power(KW) | 3 | 3 | 7 | 11 | 11 | 15 | 20 |
| Insulation category | E | E | E | E | E | E | E |
| Cooling method | water and oil cooling | water and oil cooling | water and oil cooling | water and oil cooling | water and oil cooling | water and oil cooling | water and oil cooling |
| Magnetic lumen diameter(mm) | 160 | 220 | 300 | 220 | 430 | 220 | 600 |
| Yield(m3/h) | 0.5-1.5 | 43833 | 1.5-4 | 0.5-3 | 1.5-6 | 1-3 | 3-8 |
| Dimension(mm) | 700*700 | 860*860 | 1320*1320 | 1300*110 | 1500*1500 | 1350*1100 | 1500*1500 |
| *1450 | *1540 | *2500 | *1800 | *2500 | *1850 | *2000 | |
| Main machine weight(kg) | 450 | 490 | 1020 | 1130 | 1210 | 1500 | 2000 |
| Usage | 60-300 mesh feedstock of iron elimination | ||||||
3> Technical parameter
