Feldspar Quartz Powder Deironing Dry Magnetic Separator Oil Double Cooling
Price:
Negotiable
MOQ:
1set
Delivery Time:
Within 25 days after the advance payment is made
Brand:
ZT
Product Description

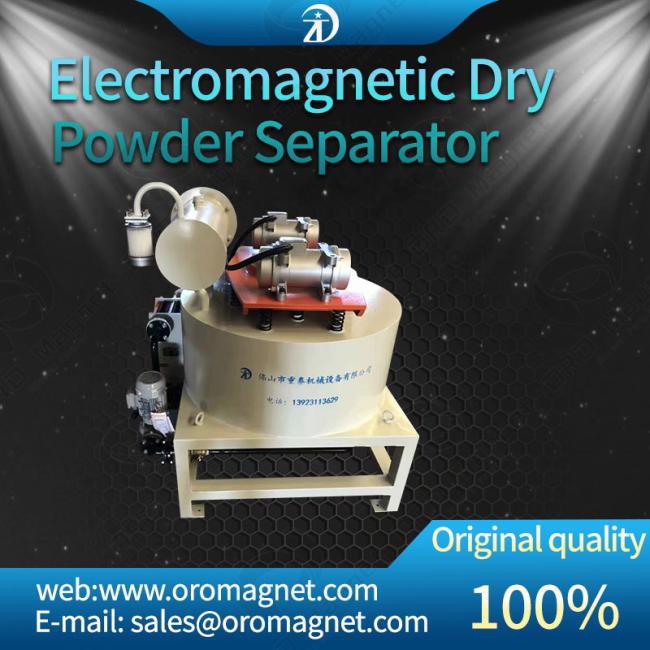

Deironing Dry Powder Magnetic Separator
Magnetic Separators are designed to recover ferromagnetic materials. It’s usually used for separation fine-grained iron magnetite from non-magnetic materials.
It's applied for particle size less than 3mm magnetite, pyrrhotite, limonite and other materials, wet magnetic separation, but also for coal, non-metallic minerals, building materials and other materials in addition to iron work. Available downstream, semi-reflux, reflux-type and other forms of magnetic separator machine, cylinder surface magnetic field strength can be produced according to the actual use of the special.
- Strong magnetic field intensity.
- The sealed structure makes the magnetic separator water-proof, dust proof and corrosion resisting.
- Low energy consumption.
- High efficiency, stable performance and good flexibility.
- Easy to install and use, Easy maintenance.
- Long service life.
The main component parts of Magnetic separator is consisted with Geared Motor, Drum, Support Frame, Feed box, Drum Scraper, Magnetics discharge, Tank and Tailings discharge.
The working principle of magnetic separator machine is as the following: When the ore pulp folw into the magnetic field, the strong magnetic minerals are adsorbed on the surface of the drum. The weak magnetic and non-magnetic minerals are cast off and discharged, while the strong magnetic minerals on the surface of the drum rotate with the drum and will be brought out of magnetic field to complete the sorting operation.
| Model | WG160B-V-3 | WG220B-V-3 | WG300-V-7 | WG220B-V-11 | WG430-V-11 | WG220-V-15 | WG600-V-20 |
| Magnetic field strength(t) | 2 | 2 | 3 | 3 | 3 | 5 | 3 |
| Input voltage(VAC) | 380 | 220 | 380 | 380 | 380 | 380 | 380 |
| Maximun output current(A) | 15 | 7 | 20 | 20 | 20 | 30 | 40 |
| Maximum coil power(KW) | 3 | 3 | 7 | 11 | 11 | 15 | 20 |
| Insulation category | E | E | E | E | E | E | E |
| Cooling method | water and oil cooling | water and oil cooling | water and oil cooling | water and oil cooling | water and oil cooling | water and oil cooling | water and oil cooling |
| Magnetic lumen diameter(mm) | 160 | 220 | 300 | 220 | 430 | 220 | 600 |
| Yield(m3/h) | 0.5-1.5 | 43833 | 1.5-4 | 0.5-3 | 1.5-6 | 1-3 | 3-8 |
| Dimension(mm) | 700*700 | 860*860 | 1320*1320 | 1300*1100 | 1500*1500 | 1350*1100 | 1500*1500 |
| *1450 | *1540 | *2500 | *1800 | *2500 | *1850 | *2000 | |
| Main machine weight(kg) | 450 | 490 | 1020 | 1130 | 1210 | 1500 | 2000 |
| Usage | 60-300 mesh feedstock of iron elimination | ||||||
