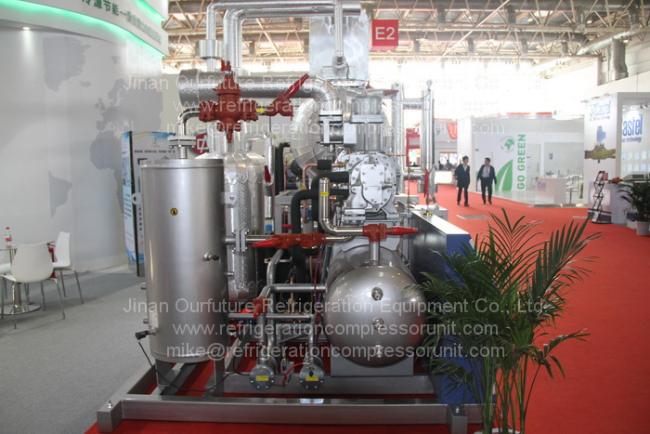

-45 deg C VFD freezer room Kobelco 2-stage screw compressor rack for R717/CO2

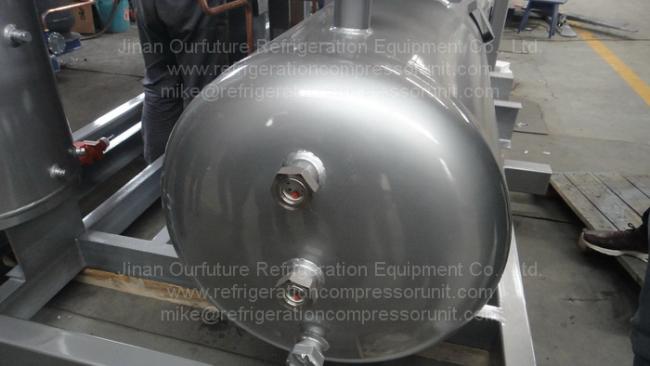

Equipped with large capacity heat/cold exchanger, can super-cold liquid and also effectively prevent liquid returning to compressor. Pump station liquid supply, it can be used for long distance liquid supply, simplify the system while offering a clear and easy control. The evaporator side uses CO2 as secondary refrigerant. It’s non-toxic, anti=flaming and has large latent heat of evaporation. Advanced user interface and control system with 10 inch PLC color touch screen display. With multi-touch function you can easily swap, enlarge just like using your ipad. It also support remote monitoring include data checking, modifying and downloading, it brings convenient to user.

Use environmental secondary refrigerant CO2, ODP=0, GWP=1Refrigerant: R404a, R717.Refrigeration capacity: 40KW~500KW.Application: Super low temperature cold storage, super low temperature brine system, fast frozen, etc.

Equipped with inverter, it settles the problems of requiring very large start-up power supply and start interval more than 10 mins. The Inverter type unit can be on/off at any time. It can reduce the impact to the power grid by reducing the installed power.
