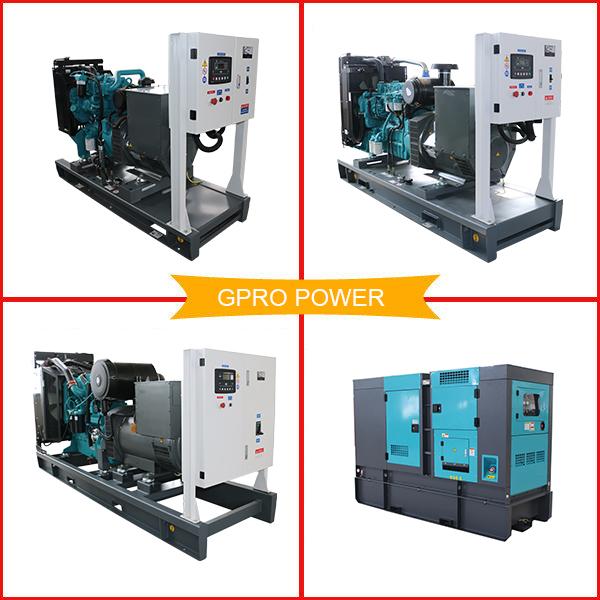

Open type Perkins water cooled diesel generator 138KVA 110KW
Open type Perkins water cooled diesel generator 138KVA 110KW
| Technical specification | |
| Genset Model | GP151PS |
| Prime Power | 110KW/138KVA |
| Standby Power | 121KW/151KVA |
| Phase Number | 3 |
| Power Factor | 0.8 |
| Rated Voltage | 230/400V |
| Frequency | 50 HZ |
| Rated Current | 199A |
| Genset Structure | SILENT |
| Dimension | 2250×860×1450mm |
| Net Weight | 1500KG |
| Noise level | 75dB at 7 meters |
| Fuel Tank Capacity | 270L |
| Engine Model | 1106A-70TG1 |
| Engine Features | 6-cylinder,4 stroke,water cooled |
| Bore * Stroke | 100mm × 127mm |
| Displacement | 6L |
| 12-hour Power(kw) | 144KW/1500 |
| Fuel Consumption L/H | 29.2L/H |
| Compression Ratio | 17:01 |
| Governor type | ELECTRIC |
| Alternator Model | STAMFORD / UCI274E |
| Excitation Mode | brushless self-excited |
| Insulation Class | H |
| Protection Class | IP23 |
| Construction Type | SAE Disc-coupling |
| Controler Panel | Deepsea/ ComAp/ Smartgen |
Description:
1. Diesel Perkins engine
2. Alternator: Italy Mecc alte / Stamford

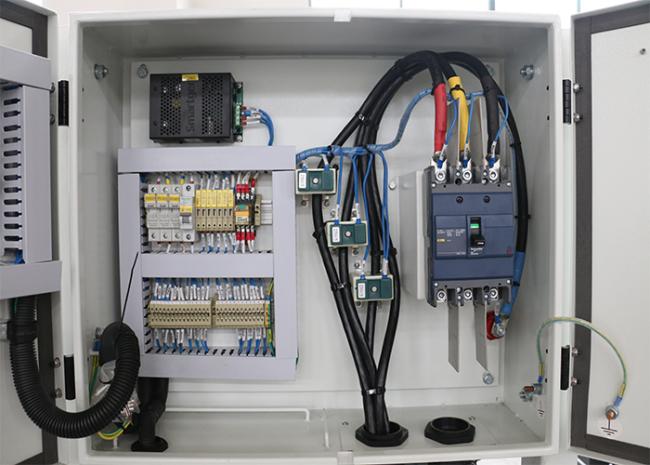

3. Controller: Deepsea or Smartgen with or without AMF.
4. Options: remote controller, synchronizing.
5. ATS: Upon detection of a mains(utility) failure the module automatically starts the generator set, once the mails (utility) power has been restored it instructs the generator set to stop.
6. Type: Silent type, weather proof, Trailer type
Applications:
1.Industrial area: real estate, hospital, hotel, bank, construction, factory, oil field, airport, mining
2. Home use: personal use for house, camping, party, etc
3. Telecom, Mobile tower, etc
4. Island, Desert or any place without electricity
5. As for emergency equipment special for natural disasters, such as typhoon, earthquake
Competitive Advantage:
1. User friendly with low emissions
2. More power reserve, better performance
3. Fast delivery. Big quantity of Engines in stock.
4. Good parts commonality
5. Original FAW engine , good quality , good price.
Company Details:
Wuxi Gpro Power Solution Co., Ltd is focusing on power generator products and service in China.Being in the power generation field for more than 10 years, we have very good connection with G-Drive Engines and brand alternators. We are not only assembling the generator set, but alsogiving you the best solution to meet your special needs on projects and your clients.
Our advantages:
1.Inspection
1) Each engine shall be tested at manufacturer’s workshop to certify the engine output according to present standard and fuel consumption in accordance with the site operating condition specified by purchaser on the specification datasheet.
2) All relevant information drawings pertinent to the testing and test procedure shall be transmitted to the purchaser in advance of the test date notification.
3) All accompanied documents are corresponding to the actual situation of generators, including the Qualified Certificate, Parameters and the Performance Index.
2.Guarantee
1) Guarantee Period: One year or 1000 running hours, depends on whichever comes first.
2) During the guarantee period, the spare-parts will be sent through your shipping agency in China.
3) Spare-parts can also be sent by air express.
4) 24 hours service hotline is available for customers.
If have any questions, please contact us. Your inquiry would be appreciated.
