160KW 200KVA Cummins Diesel Generators Electric Power Genset Low Noise Silent type
160KW 200KVA Cummins Diesel Generators Electric Power Genset Low Noise Silent type
|
Technical data |
|
|
Genset Model |
GP220DCS |
|
Prime Power |
160KW/200KVA |
|
Rated Voltage |
400/230V |
|
Frequency |
50/60Hz |
|
Power Factor |
0.8(lagging) |
|
The regulating rate of steady voltage |
≤±0.5% |
|
The regulating rate of instantaneous voltage |
≤-15%/ +20% |
|
The time of steady voltage |
≤1.5sec |
|
The waving rate of voltage |
≤1.0% |
|
The regulating rate of steady frequency |
≤3% |
|
The regulating rate of instantaneous frequency |
≤±10% |
|
The time of steady frequency |
3sec |
|
Dimension (L×W×H) (mm) |
2650*760*1600 |
|
Genset weight (kg) |
1450 |
|
Diesel Engine |
|
|
Brand |
CUMMINS |
|
Model |
6CTAA8.3-G2 |
|
Number of Cylinders |
6 |
|
Rotating Speed |
1500RPM |
|
Cycle |
Four stroke |
|
Type |
waste gas turbine boost,direct spurting type |
|
Bore×Stroke(mm) |
100*127 |
|
Displacement(L) |
6 |
|
Lubricating Capacity(L) |
19 |
|
Speed Governor |
Electrical |
|
Cooling System |
Water-cooled |
|
Speed Stability (%) |
≤5% |
|
Fuel Consumption at 100% Load |
208g/kw.h |
|
Starting Method |
DC24V Electrical starting |
|
Alternator |
|
|
Brand |
Stamford |
|
Model |
UCI274H |
|
Number of Phase |
3 |
|
Connecting Type |
Three Phase and Four Lines |
|
Number of Bearing |
1 |
|
Grading Protection |
IP23 |
|
Altitude |
≤1000m |
|
Exciter Type |
Brushless (AVR automatic voltage regulating) |
|
Insulation Class |
H degree |
|

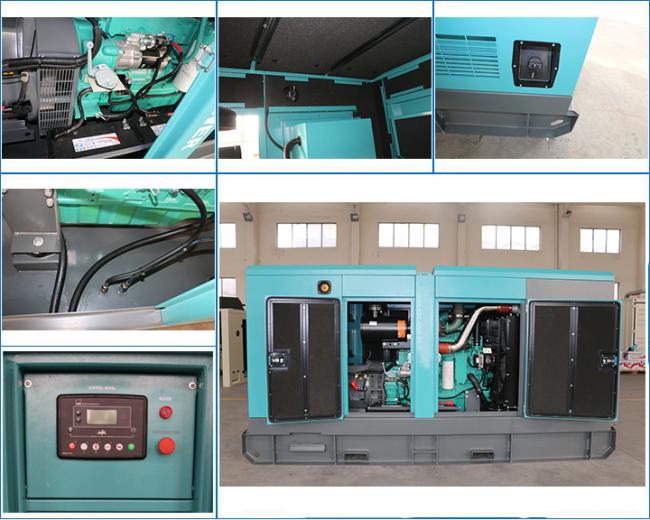

The components of the genset |
|
|
(1) Cummins Diesel Engine; (2) Stamford Alternator; (3) Control Panel |
|
|
Control Panel |
|
|
The control panel is Quadruplication protection control panel, with the display of frequency table/water temperature/schedule/battery voltmeter. The genset with low oil pressure, high water temperature, over speed emergency, stop and other pre-protection. |
|
There are many international brand generator controller for our cusomer 's choice,such as Smartgen, Deep sea, Compny, Harson and so on.
ATS: Upon detection of a mains(utility) failure the module automatically starts the generator set, once the mails (utility) power has been restored it instructs the generator set to stop.
Standard Supply Scope:
Generator set included: Diesel Engine, Brushless Alternator, Radiator, self-starting control panel, circuit breaker panel, Vibration damping pads, Hi-strength base frame
Accessories Included: industrial type silencer, flexible bellow, Elbow and Flanges, Starting Battery & battery charger, Battery switch with cables
Documents included: manual book, product qualified card
Optional supply scope:
1.ATS
2.SynchronizationSystem
3.External daily fuel tank
4.Silent Canopy
5.Trailer
6.Auto Fuel Pump
7.Fuel and Water Separator
8.Lub Oil Heater
9.Coolant Heater
10.Fuel Drain Pump
Advantages:
. We are a powerful and unity sales team:
. we are not just sales, but also professional engineers here to give you fast response of Technical support and power solutions.
90% of our sales team members are with more than 5 years of experience in the generator field.
. We have professional electrical & mechanical engineers, standby you, to solve the pre/after-sales service.
. We have strict Inspection dept. to make sure each genset is carefully test before leaving factory.
. With the experience and knowledge of Gensets, we are enthusiastic and patient, and can communicate with you easily and efficiently.
Sales Promises:
. Our company provides a full line of brand new and high quality products which are strictly tested before shipment
. Quality warranty is according to our standard conditions: One year or 1000 running hours
