6 Cylinder FAWDE Diesel Engine Generator Genset 138kva 50Hz Open / Silent Type
6 Cylinder FAWDE Diesel Engine Generator Genset 138kva 50Hz Open / Silent Type
Specifications of FAWDE diesel generator set:
| 1. SPECIFICATIONS OF GEN-SET | ||
| 1.1 | Set Model | GP138FWS |
| 1.2 | Prime at 50HZ, 40℃ ambient | 100KW 125KVA |
| 1.3 | Standby at 50HZ, 40℃ ambient | 110KW 138KVA |
| 1.4 | Rated Gen-set output | 230/400V 50Hz |
| 1.5 | Rated Relative humidity | ≤ 60 % |
| 1.6 | Dimension (L×W×H) | Open: 2600*1000*1600, Silent: 3400*1400*1900 |
| 1.7 | Weight | Open: 1600kg, Silent: 2200kg |
| 1.8 | Fuel consumption 100% prime load | 24L/hr |
| 1.9 | Structure of Gen-set | The Gen-set adopt integrative structure, engine is fix on high strength steel basic frame, anti vibration instrument between the engine and basic frame, cooling fan have protecting cap, control cabinet and circuit breaker installed on Gen-set. |
| 1.10 | Control system (Optional) | Basic control panel or Advanced control panel with automatically start-up function and other function. |
| 2. SPECIFICATIONS OF ENGINE | ||
| 2.1 | Engine Brand | FAWDE |
| 2.2 | Engine Model | CA6DF2-19D |
| 2.3 | Governor/Class | Electronic |
| 2.4 | Cylinder NO. | 6 |
| 2.5 | Engine build | Line |
| 2.6 | Emission compliant | Stage II |
| 2.7 | start-up method | 24V, electric |
| 2.8 | Air intake type | Turbocharged |
| 2.9 | Cooling mode | Radiator cooled (enclose water) |
| 2.10 | Bore and stroke | 110×125 mm |
| 2.11 | Compression ratio | 17:01 |
| 2.12 | Displacement | 7.13 |
| 2.13 | Engine Prime Power at 1500rpm | 125KWm |
| 2.14 | Engine Standby Power at 1500rpm | 138KWm |
| 2.15 | Lubrication oil capacity | 24L/hr |
| 2.16 | Oil consumption | 0.08 |
| 2.17 | Dry weight of base | 680Kg |
| 2.18 | Dry weight of Gen Pac | 880Kg |
| 2.19 | Overall dimension(G.P) | 1655×805×1310(mm) |
| 2.20 | Overall dimension(base) | 1320x680x1100(mm) |
| 2.21 | 27℃ air consumption ( m³/ min) | 9 |
| 2.22 | Fuel type | #0 Diesel (Natural temperature) |
| 2.23 | Filter system | Adopt whole changeable lubricating oil, fuel filter and air filter |
| 2.24 | Exhaust system | Adopt industrial high efficiency muffler and ripple pipe |
Description:
1. Power (Prime): 125kva
2. Engine: FAWDE
3. Alternator: Genuine Stamford, Marathon, Meccalte, Faraday, etc
4. Controller: Deepsea or Smartgen with or without AMF. Options: remote controller, synchronizing, etc.
5. ATS is optional

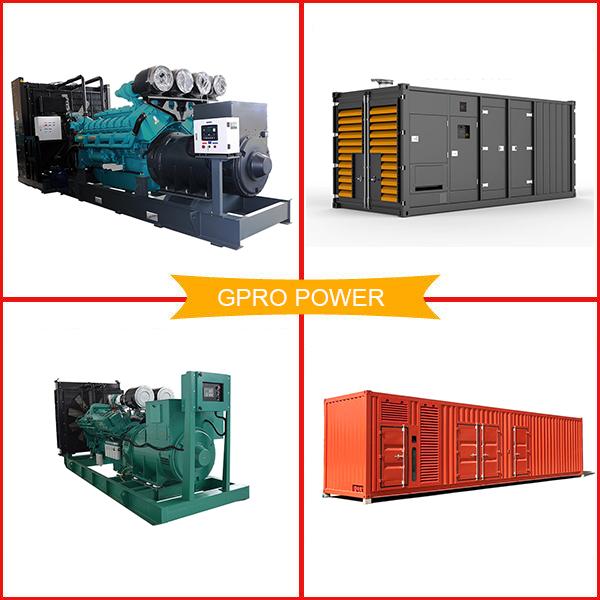

6. Type: Open type, Soundproof type, Trailer type, Container type, etc
7. Color: Can be customized
8. We do Denyo Type for the canopy also.
Applications:
1. Industrial area: real estate, hospital, hotel, bank, construction, factory, oil field, airport, mining, railway, etc
2. Home use: personal use for house, camping, party, etc
3. Telecom, Mobile tower, etc
4. Island, Desert or any place without electricity
5. As for emergency equipment special for natural disasters, such as typhoon, earthquake, heavy snow, etc.
6. Standby power or main power, indoor or outdoor using.
7. Rental field.
Competitive Advantage:
1. Full power range.
2. All genuine engines and alternators.
3. The components we use are in high quality.
4. Fast delivery. Big quantity of Engines in stock.
5. The generator set is mounted on a heavy duty fabricated steel skid type base–frame with anti vibration mounting pads.
6. Use high standard of sponge to make soundproof.
7. The canopy design is user friendly, and easy for maintenance.
8. Pre and after sales service is provided.
9. Fast response for the inquires, service, etc.
