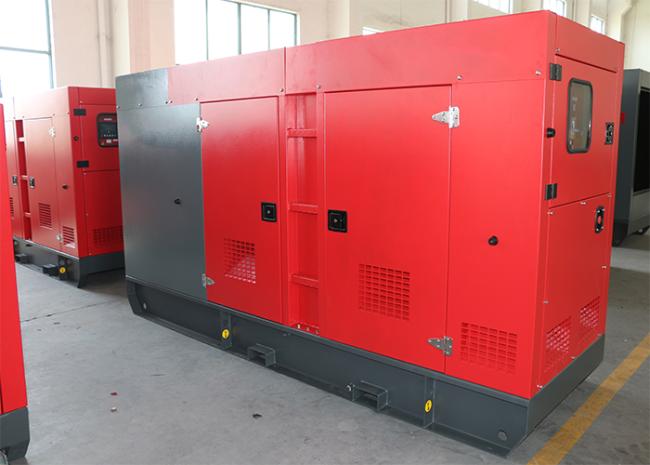

4 Stroke 120KW 150KVA YuChai Diesel Generator Set Brushless Self - Excited
4 Stroke 120KW 150KVA YuChai Diesel Generators Brushless self-excited
SPECIFICATION:
| Technical specification | |
| Genset Model | GP-YC165S |
| Prime Power | 120KW/150KVA |
| Standby Power | 132KW/165KVA |
| Phase Number | 3 |
| Power Factor | 0.8 |
| Rated Voltage | 230/400V |
| Frequency | 50 HZ |
| Rated Current | 217A |
| Genset Structure | SILENT |
| Dimension | 3400×1120×1785mm |
| Net Weight | 2020KG |

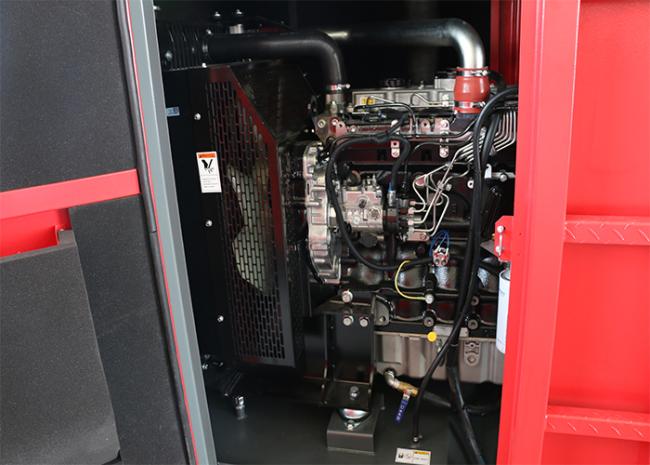

| Engine Model | YC6B205L-D20 |
| Engine Features | 6-cylinder,4 stroke,water cooled ,Turbo |
| Bore * Stroke | 108mm × 125mm |
| Displacement | 6.9L |
| 12-hour Power(kw) | 140KW/1500 |
| Fuel Consumption L/H | 31.8L/H |
| Compression Ratio | 17.5:1 |

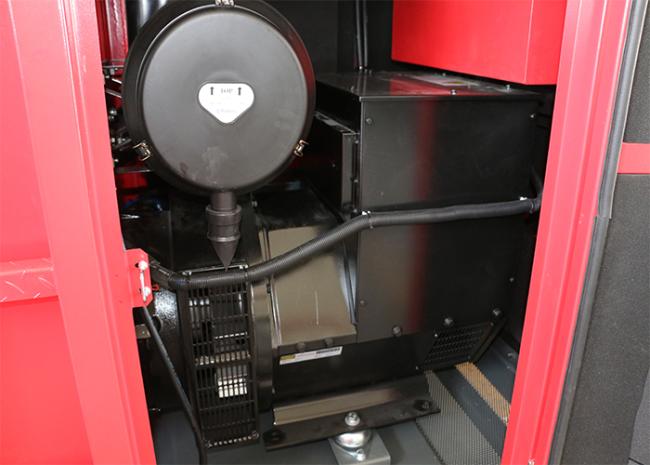

| Alternator Model | UP274E |
| Excitation Mode | brushless self-excited |
| Insulation Class | H |
| Protection Class | IP23 |
| Construction Type | SAE Disc-coupling |
| Controler panel | |
| Smartgen 6120 | intelligent and network techniques is used for automatic control system of diesel generator. It can carry out functions including automatic start/stop, data measure and alarming.automatic switching control functions (AMF), especially suitable for the automation system composed by Mains and Generator |
Guarantee:
Warraty period is one year or 1000 hours (depends on which occurs first ). If the failure is caused by turbine manufacturing defects, we will be responsible for problems caused by quality of production or raw material, except the damageable spare parts of genset caused by crew wearing parts, consumable parts for daily use, human error , negligence or failure of following the original maintenance manual provisions, etc.Power
1.Range: 20kva-1500kva
2. Type: Open type, Soundproof type, Denyo type , trailer type, Container type, etc
3. Color: Green / Yellow / Blue /White / Pink and so on
Optional supply scope:
1.ATS 2. SynchronizationSystem 3. External daily fuel tank 4. Auto Fuel Pump 5. Fuel and Water Separator
6. Lub Oil Heater 7. Coolant Heater 9. Fuel Drain Pump 9. Silent Canopy 10. Trailer
Standard Supply Scope:
Generator set included: Diesel Engine, Brushless Alternator, Radiator, self-starting control panel, circuit breaker panel, Vibration damping pads, Hi-strength base frame
Accessories Included: industrial type silencer, flexible bellow, Elbow and Flanges, Starting Battery & battery charger, Battery switch with cables
Documents included: manual book, product qualified card
Package & Delivery
Package: Plastic Package.
Payment: By 30 % T / T as deposit, 70% balance should be paid 10 days before shipment. Or 100 %L/C at sight.
Delivery: 25 days after we get the down payment.
Sales Promise:
1. GPRO Engineering provides a full line of brand new and high quality products. Each and every unit is strictly factory tested before shipment.
2.Quality Warranty is according to our standard conditions: 12 months from BL date or 1,000 running hours, whichever comes first.
3. Service and parts are available from XIAMEN GPRO Engineering Ltd. or distributors in your location.
4.All the products from Xiamen GPROEngineering Ltd. is CE marked.
Welcome to inquiry us!
