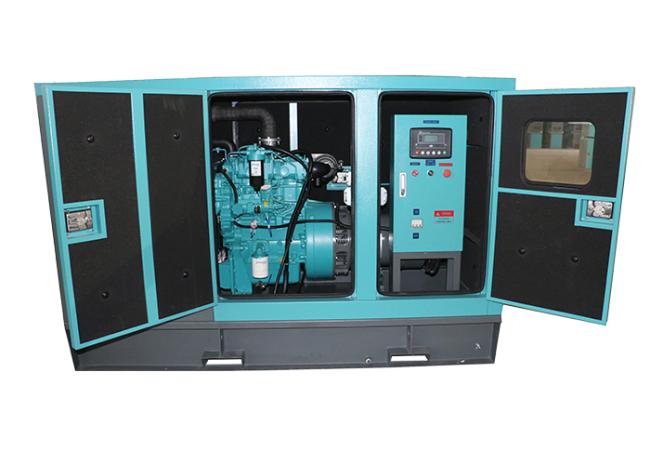

25KW 30KVA FAWDE Diesel Generator Set Brushless Self Excited Generator
25KW 30KVA FAWDE Generator , Brushless Self Exciting Generator
Product describition
| 1. SPECIFICATIONS OF GEN-SET | ||
| 1.1 | Set Model | GP-FW33S |
| 1.2 | Prime at 50HZ, 40℃ ambient | 25KW 30KVA |
| 1.3 | Standby at 50HZ, 40℃ ambient | 28KW 33KVA |
| 1.4 | Rated Gen-set output | 400/230V 50Hz/60HZ |
| 1.5 | Rated Relative humidity | ≤ 60 % |
| 1.6 | Dimension (L×W×H) | Open: 1800x760x1150 Silent: 2320x1060x1150 |
| 1.7 | Weight | Open: 800kg, Silent: 1100kg |
| 1.8 | Fuel consumption 100% prime load | 7 |
| 1.9 | Structure of Gen-set | The Gen-set adopt integrative structure, engine is fix on high strength steel basic frame, anti vibration instrument between the engine and basic frame, cooling fan have protecting cap, control cabinet and circuit breaker installed on Gen-set. |
| 2 | Control system (Optional) | Basic control panel or Advanced control panel with automatically start-up function and other function. |
| 2. SPECIFICATIONS OF ENGINE | ||
| 2.1 | Engine Brand | FAWDE/Xichai |
| 2.2 | Engine Model | 4DW92-39D |
| 2.3 | Governor/Class | Mechanical or Electronic |
| 2.4 | Cylinder NO. | 4 |
| 2.5 | Engine build | Line |
| 2.6 | Emission compliant | Stage II |
| 2.7 | start-up method | 24V, electric |
| 2.8 | Air intake type | Natural |
| 2.9 | Cooling mode | Water Cooling |
| 2.10 | Bore and stroke | 102×118 mm |
| 2.11 | Compression ratio | 17:01 |
| 2.12 | Displacement | 3.86 |
| 2.15 | Lubrication oil capacity | 12.5L |
| 2.16 | Oil consumption | 0.06 |
| 2.21 | 27℃ air consumption ( m³/ min) | 2.6 |
| 2.22 | Fuel type | #0 Diesel (Natural temperature) |
| 2.23 | Filter system | Adopt whole changeable lubricating oil, fuel filter and air filter |
| 2.24 | Exhaust system | Adopt industrial high efficiency muffler and ripple pipe |
| 3. SPECIFICATIONS OF ALTERNATOR | ||
| 3.1 | Alternator Model | G184F |
| 3.2 | Alternator Type | A.C. Synchronous |
| 3.3 | Rated Voltage | 230/400V |
| 3.4 | Rated Frequency | 50HZ |
| 3.5 | Rated speed | 1500 RPM |
| 3.6 | Voltage regulation mode | Auto |
| 3.7 | Alternator voltage regulation | ±0.5% |
| 3.8 | Exciting mode | Brushless self exciting |
| 3.9 | Power factor | 0.8 (lagging) |
| 3.10 | Phase & wires | 3 phase 12 wires |
| 3.11 | Rated currency | 45.1A |
| 3.12 | Efficiency | 0.862 |
| 3.13 | Insulation class | H |
| 3.14 | Protection class | IP23 |
| 3.15 | Single load step to NFPA110 | 100% |
| 3.16 | Standards | IEC34-1,NEMA1 |
| 3.17 | Max. Ambient Temperature | 40℃ |
| 3.18 | Min. Ambient Temperature | - 20℃ |
| 3.19 | Max. altitude | 1000m |
| 3.20 | Weight | 156KG |
Why choose us:
Description:
Wuxi Gpro Power Solution Co., Ltd ltp focuses on China's generator products and services.In the field of power generation for more than 10 years, all of our generators are designed and manufactured to provide full power performance and rated generators for actual capacity. The company and many well-known enterprises at home and abroad to maintain a long-term strategic friendship and cooperation.
1. Our warranty is 1 year or 1000 hours, whichever comes first.
2. Global warranty is available based on the engine and alternator of your choice.
3. The payment method is T/T 30% advance and 70% of the balance should be paid prior to shipment.
4. Our standard delivery time is 20 to 30 days.
We supply Generator Sets from 2kva to 3000kva.
If You Are Interesting In GPRO, Pls Contace Us Freely ,Welcome To Visit GPRO!!
