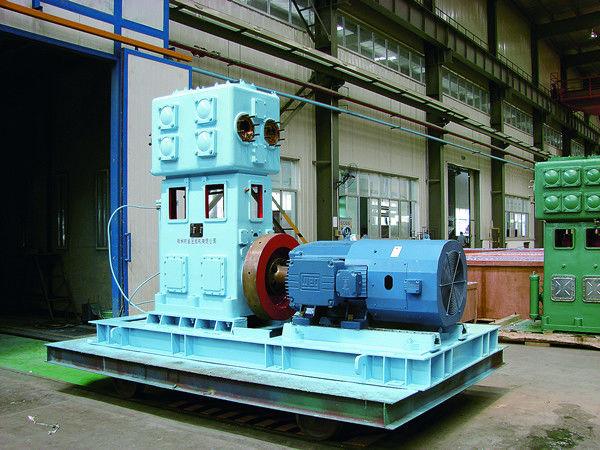

Hydrogen Compressor,Air Separation Plant Series ZW-95.6/30 ZW-71/30 Vertical,four row,three stage
Price:
USD
MOQ:
1set
Delivery Time:
3months
Brand:
Hangyang
Product Description
Hydrogen Compressor Series ZW-95.6/30 ZW-71/30 Vertical,four row,three stage casting steel grey colour
| Nitrogen Compressor Series Technical Data |
| Model No. | Flow m 3/h | Inlet Pressure MPa(A) | Innlet temp. ℃ | Dsicharge Pressure MPa | Discharge Temp. ℃ | Rotating Speed r/min | Total Water Comsumption t/h | Motor Model | kW/V |
| ZW-36/30 | 2160 | 0.108 | 34 | 3 | 40 | 593 | 45 | Y5001-10 | 400/6000 |
| ZW-58/30 | 3480/3500N | 0.107 | 14 | 3 | 40 | 495 | 90 | Y800-12/1450 | 800/10k |
| ZW-11/95 | 660 | 0.105 | 35 | 9.5 | 40 | 590 | 12.5 | Y355L2-10P | 185/380 |
| 3Z3.51.67/150 | 100 | 0.103 | 20 | 14.7 | 40 | 197 | 3 | Y250M-8 | 30/380 |
| ZW35.5/100 | 2130 | 0.105 | 30 | 10 | 40 | 593 | 48 | Y5004-10 | 560/6000 |
| ZW-71/30 | 4260 | 0.0936 | 25 | 3 | 40 | 495 | 90 | Y630-12 | 800/10k |
| ZW-95.6/30 | 5735/5500N | 0.106 | 25 | 3 | 40 | 495 | 110 | Y710-12 | 1120/10k |
| Model No. | Media | Type | Motor Model | Outer dim. mm | Machine weight kg |
| ZW-36/30 | N2 | Vertical,three row,three stage | Y5001-10 | 7500×5000×3600 | 20000 |
| ZW-58/30 | N2 | Vertical,four row,three stage | Y800-12/1450 | Two layers 11000×8000 | 38898 |
| ZW-11/95 | N2 | Vertical,three row,four stage | Y355L2-10P | 3800×3200×3000 | 9776 |
| 3Z3.51.67/150 | N2 | Vertical,three row,three stage | Y250M-8 | 2030×1500×2450 | 2810 |
| ZW35.5/100 | N2 | Vertical,four row,four stage | Y5004-10 | 7600×5000×3600 | 22685 |
| ZW-71/30 | N2 | Vertical,four row,three stage | Y630-12 | 12000×7100×4000 | 38760 |
| ZW-95.6/30 | N2 | Vertical,four row,three stage | Y710-12 | 9500×6900×4000 | 43290 |
