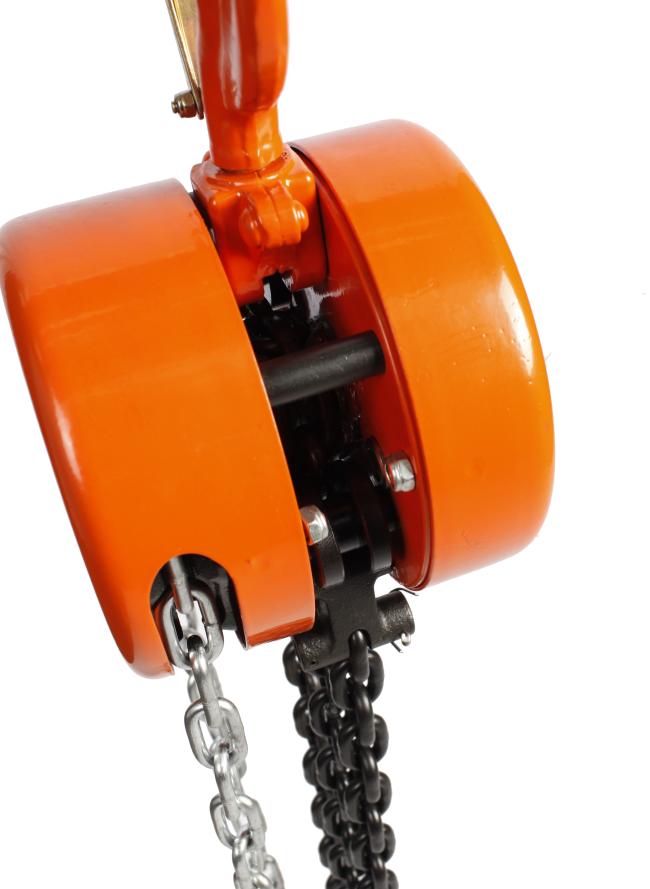

HSZ-Etype Round Chain Block Hoist Manual Chain Hoist Various Color OEM 1 Ton
Price:
Negotiable
MOQ:
100pcs
Delivery Time:
30 days
Brand:
SEAGULL
Product Description
HSZ-E series manual chain block chain pulley block 0.5 Ton-30 Ton CE TUV
features:
- Capacity from 0.5T to 30T
- Have certificate of CE
- Got certificate of ISO9001
- Automatic double-pawl braking system.
- Asbests-free brake discs.
- Drop forged hooks and hook holders to ensure superior quallity and safety
- More thickness of sheet cover,gear cover and side plates for good quality.
- The static test is 4 times of capacity,and running test is 1.5 times of capacity one by one
technical parameters
| HSZ-E CHAIN BLOCKS 0.5Ton-30Ton | |||||||||
| Model | HAS-0.5E | HSZ-1E | HSZ-1.5E | HSZ-2E | HSZ-3E | HSZ-5E | HSZ-10E | HSZ-20E | HSZ-30E |
| Rated load(T) | 0.5 | 1 | 1.5 | 2 | 3 | 5 | 10 | 20 | 30 |
| Standard lift(m) | 2.5 | 2.5 | 2.5 | 2.5 | 3 | 3 | 3 | 3 | 3 |
| Test load(T) | 0.75 | 1.5 | 2.25 | 3 | 4.5 | 7.5 | 12.5 | 25 | 37.5 |
| Efforts required at capacity(N) | 262 | 314 | 343 | 318 | 347 | 382 | 390 | 390 | 394 |
| Diameter of load chain(mm) | 6 | 6 | 8 | 6 | 8 | 10 | 10 | 10 | 10 |
| No. of load chains | 1 | 1 | 1 | 2 | 2 | 2 | 4 | 8 | 10 |
|
Dimensions (mm) A B C D |
142 126 280 28 |
142 126 300 32 |
178 142 360 38 |
142 126 380 40 |
178 142 470 44 |
210 165 600 50 |
358 165 730 64 |
580 195 1000 82 |
688 394 1050 82 |
| Net weight (kg) | 9.5 | 10.5 | 17.5 | 14.5 | 23 | 35 | 68 | 155 | 233 |
| Extra weight per meter of extra lift(kg) | 1.7 | 1.7 | 2.4 | 2.5 | 3.7 | 5.3 | 9.7 | 19.4 | 23.9 |
