3 Ton Electric Chain Hoist Mni Crane 220V 1m/Min Lifting
Price:
Negotiable
MOQ:
50pcs
Delivery Time:
30 days
Brand:
SEAGULL
Product Description
3ton / 3 Tonne / 3t Electric Chain Hoist , Electric Mni Crane 220 V
HHXG Electric Chain Hoist
Capacity:0.5-5ton
Lifting speed:1m/min-6.3m/min
Voltage:110-440V
Frequence:50/60Hz

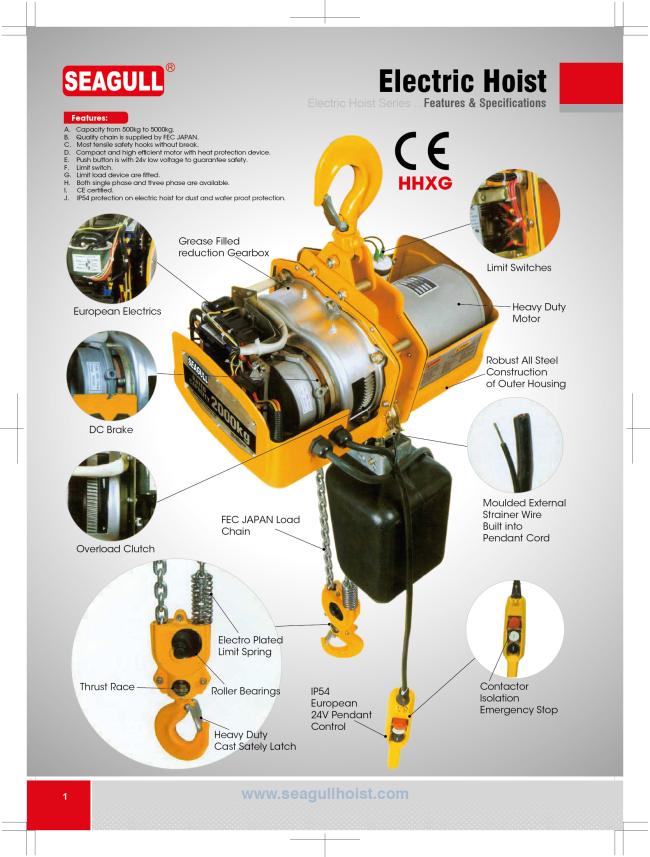

Feafures:
A. Capacity from 500kg to5000kg
B. Quality chain is supplied by FEC JAPAN.
C. Most tensile safety hooks without break.
D. Compact and high efficient motor with heat protection device.
E. Push button is with 24v low voltage to guarantee safety.
F. Limit switch.
G. Limit load device are fitted.
H. CE certified.
I. IP54 protection on electric hoist for dust and water proof protection.
Technical Parameters & Specifications:
|
HHXG2 SUSPENDED TYPE SINGLE PHASE ELECTRIC CHAIN HOIST |
|||||||
| Model | HHXG205 | HHXG210 | HHXG220 | HHXG230 | HHXG250 | ||
| Rated Load(Ton) | 0.5 | 1 | 2 | 3 | 5 | ||
| Lift(m) | 3 | 3 | 3 | 3 | 3 | ||
| Lifting Speed(m/min) | 5.2 | 5.2 | 2.6 | 1.7 | 1 | ||
| Hoist Motor | Output(kw) | 0.8 | 1.2 | 1.2 | 1.2 | 1.2 | |
| 1-phase | Ins Class | F | F | F | F | F | |
| %ED | 40 | 40 | 40 | 40 | 40 | ||
| Load | Dia(mm) | 7.1 | 7.1 | 7.1 | 7.1 | 7.1 | |
| Chain | Number of falls | 1 | 1 | 2 | 3 | 5 | |
| Dynamical Test(KN) | 5.5 | 11 | 22 | 33 | 55 | ||
| Min. Headroom | 545 | 580 | 740 | 790 | 950 | ||
| MaxG(mm) | |||||||
| Net Weight | 64 | 65 | 72 | 80 | 135 | ||
| (kg) | |||||||
|
HHXG3 SUSPENDED TYPE THREE PHASE ELECTRIC CHAIN HOIST |
|||||||
| Model | HHXG305 | HHXG310 | HHXG320 | HHXG330 | HHXG350 | ||
| Rated Load(Ton) | 0.5 | 1 | 2 | 3 | 5 | ||
| Lift(m) | 3 | 3 | 3 | 3 | 3 | ||
| Lifting Speed(m/min) | 6.3 | 6.3 | 3.2 | 2.1 | 1.3 | ||
| Hoist Motor | Output(kw) | 0.8 | 1.6 | 1.6 | 1.6 | 1.6 | |
| 3-phase | Ins Class | F | F | F | F | F | |
| %ED | 40 | 40 | 40 | 40 | 40 | ||
| Load | Dia(mm) | 7.1 | 7.1 | 7.1 | 7.1 | 7.1 | |
| Chain | Number of falls | 1 | 1 | 2 | 3 | 5 | |
| Dynamical Test(KN) | 5.5 | 11 | 22 | 33 | 55 | ||
| Min. Headroom | 545 | 580 | 740 | 790 | 950 | ||
| MaxG(mm) | |||||||
| Net Weight | 64 | 65 | 72 | 80 | 135 | ||
| (kg) | |||||||
|
HHXG3 DOUBLE SPEED SUSPENDED TYPE THREE PHASE ELECTRIC CHAIN HOIST |
|||||||
| Model | HHXG305B | HHXG310B | HHXG320B | HHXG330B | HHXG350B | ||
| Rated Load(Ton) | 0.5 | 1 | 2 | 3 | 5 | ||
| Lift(m) | 3 | 3 | 3 | 3 | 3 | ||
| Lifting Speed(m/min) | 5.2/1.7 | 5.2/1.7 | 2.6/0.85 | 1.7/0.58 | 1.0/0.35 | ||
| Hoist Motor | Output(kw) | 0.8/0.25 | 1.2/0.4 | 1.2/0.4 | 1.2/0.4 | 1.2/0.4 | |
| 1-phase | Ins Class | F | F | F | F | F | |
| %ED | 40 | 40 | 40 | 40 | 40 | ||
| Load | Dia(mm) | 7.1 | 7.1 | 7.1 | 7.1 | 7.1 | |
| Chain | Number of falls | 1 | 1 | 2 | 3 | 5 | |
| Dynamical Test(KN) | 5.5 | 11 | 22 | 33 | 55 | ||
| Min. Headroom | 545 | 580 | 740 | 790 | 950 | ||
| MaxG(mm) | |||||||
| Net Weight | 64 | 65 | 72 | 80 | 135 | ||
| (kg) | |||||||
