Safe And High-Quality Ammonia Cracker For Atmosphere Protective Heat Treatment Furnace

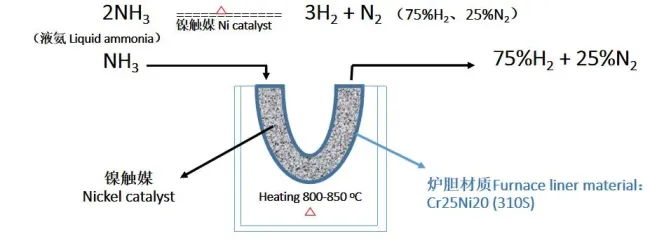

Working Principle of Ammonia Cracker



Product feature:
With a compact design, and convenient installation, the core part of the cracking system is made of INCO ALLOYS, which is
material of corrosion-resistant, Alka-resistant, and Acid-resistant, service life is more than 10 years.
Heat preservation of the furnace is full fire structure, with the advantage of rapid temperature rise.
The heating element is made of full alloy, heating type is a plug fuse, there's no need to stop the gas when replacing
the heat elements. Alarm automatically when the pressure is too high or too low.

Above are standard fittings. The 50-1000Nm3/h ammonia decomposition generator is non-standard equipment, which can be provided according to demand. Fitting also can be upgraded according to requirement:
1. PLC programmed controller can be added, which can automatically control the conversion of various working states of the equipment.
2. Dew point detector can be added.
3. Gas content testing system can be added.
4. Characteristics
(1) Small investment
(2) Reliable performance and long service life
(3) Heating element
(4) Thermal insulation material
(5) Electrical control
(6) Depressurization system
(7) Purification system
(8) Simple installation
(9) Easy operation and maintenance
(10) High safety
Ammonia Cracker Model Specification
