200kW Hydrogen Stationary Power Plant For Electric Generation Station
Price:
$290000-$350000
MOQ:
1set
Delivery Time:
90days after payment
Brand:
JOSHINING
Product Description
200kW Hydrogen Stationary Power Plant for electric generation station

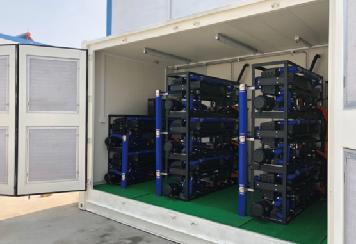

We have provided a 200kW system for overseas customers, utilizing the by-product hydrogen from the factory as a fuel source. This system is designed to replace the existing diesel backup generators in power plants.
| System rated power (kW) | 200kW |
| Output Voltage (V/AC) | 415VAC |
| Power Plant Efficiency | ＞39% |
| -30℃ Cold Start-up to Standby (mins) | ≤15min |
| Standby to Idle Power (seconds) | ≤30s@≥5℃ |
| Idle Power Output (kW) | ≤20kW |
| Hydrogen Purity | ≥99.97% Dry Hydrogen (CO<0.1ppm) |
| Hydrogen Inlet Pressure (Bar) | 11-13 Bar |
| Coolant |
Up to 50% pure ethylene glycol 50 % to 100% (deionized water); < 100 μm (particle size) |
| Communication Protocol | CAN2.0B/Modbus TCP |
| Operating Relative Humidity | 99% No Condensing |
| Installation Environment | Outdoors -30°C ~ +45°C |
