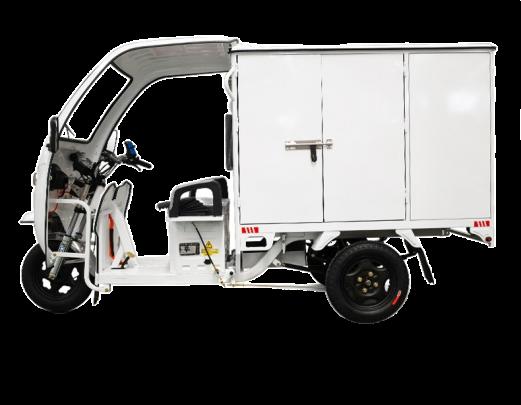

New Energy Hydrogen Fuel Cell Power Tricycle For Road Riding And Transportation
New energy hydrogen fuel cell power tricycle for road riding and transportation
Introducing:
JO-sys800B hydrogen powered tricycles are mainly powered by hydrogen energy, which is generated by the catalysis of hydrogen and oxygen in proton exchange membranes to power electric vehicles. The power system integrates fuel cell control, DC/DC control, and lithium battery BMS management internally; The system adopts an optimized energy allocation control strategy, which can quickly respond to changes in load power; Equipped with comprehensive fault protection and diagnostic functions, supporting fault self recovery and shutdown recovery; The system has reliable firmware upgrades and supports software version upgrades.
Parameters:
| size | 2890mm x1000mm x 1695mm |
| Wheelbase | 1930mm |
| weight | 255 kg( excluding battery ) |
| Maximum design speed | 51km/h |
| Range | 80km ~ 110km |
| Electricity consumption per 100 kilometers | 3.7kWh |
| Motor form | Permanent magnet |
| Rated speed | 60 V |
| Rated continuous output power | 800 W |
| Undervoltage protection value | 50 ± 0.5 V |
| Overcurrent protection value | 25 ± 1 A |
| Battery type | Hydrogen fuel cell |
| Rated voltage | 50 – 65 V |
| Rated output power | 800 W |
| Hydrogen capacity | 10 L ( 35Mpa ) |
| Carrying power | 550 Wh / 3790 Wh |
| Cooling method | Forced air cooling |
| working temperature | -5 ~ 40 ℃ |
| Working humidity | 20~95% RH, No condensation |
| Storage temperature | -5 ~ 45 ℃ |
| Noise | ≤ 60dB |
| Colour | White |
| Material quality | Mental stack |
| Function | Riding, transportation |
