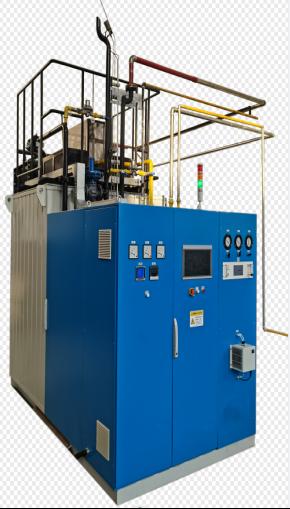

100 Nm3/H Heat Absorbing RX Gas Generator Reliable And Environmentally Friendly
100 Nm3/H Reliable And Environmentally Friendly Heat Absorbing RX Gas Generator
Technical Description
The RX generator uses a mass flow meter to precisely control the ratio of air to natural gas and control system integrated with temperature control; Over-temperature control; Catalyst life warning; Atmosphere PID control; PID control of gas pressure, and data recording and traceability system to meet the requirements of the heat treatment CQI-9 system. The system does not require human operation, and can automatically increase or decrease production according to actual needs, and automatically adapt to the needs of gas equipment.
FEATURES:
Gas or Electric heating system
Air cooled …
Technical parameters:
| Basic parameters | |
| Equipment Dimension | 3100L x 2400W x 4000H MM |
| Rated gas production | 20~100M3/H |
| Gas output pressure | 5~6KPa |
| RX gas content | CO:17%～23%, H2:38%～42% |
| Raw gas consumption |
Compressed air: ~100M3/H Nature gas: ~20M3/H |
| Electricity parameter | |
| Power voltage | AC380V±10% 50HZ |
| power | 65KW |
