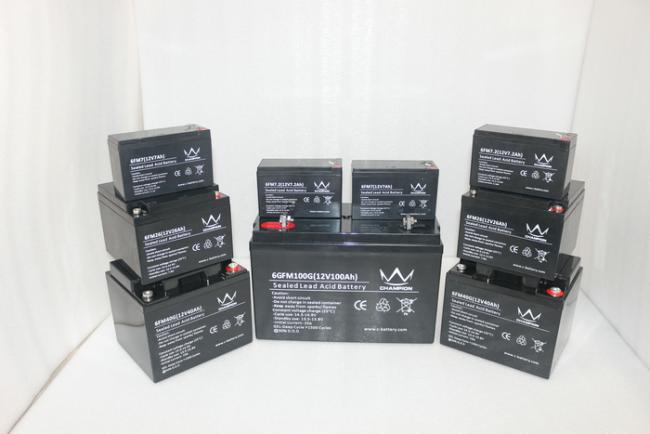

Rechargeable Long Life Lead Acid Battery , Agm Deep Cycle Battery 12V
Rechargeable Long Life Lead Acid Battery , Agm Deep Cycle Battery 12V
Long Life Lead Acid Battery Description:
• Operates at a low internal pressure.
• Power rang from 13W to 890W per cell for 10' @ 1.60Vpc
• A recognized component of UL
• Lead calcium grids for extended life Six months shelf life at 20oC
• Gas Recombination with good effection
Long Life Lead Acid Battery Applications:
-
Emergency Power Supply
-
High Power Backup Supply
-
LED Lighting
-
VAN
-
Wheel chairs
-
Security system"Alarm system" "CCTV"
-
"Video" Camera" "Loudspeaker"
-
Electric scooter
Inverter
UPS power supply
Offline or standby UPS
Long Life Lead Acid Battery Specifications:
| 12V Batteries | |||||||||
| Model | Voltage | Capacity | Dimension(mm) | Terminal | Terminal | Weight | |||
| V | (Ah) | L | W | H | TH | Type | Position | (Kg±5%) | |
| 6FM0.8 | 12 | 0.8 | 96 | 25 | 62 | 62 | AMP | 0.34 | |
| 6FM1.2 | 12 | 1.2 | 97 | 43 | 52 | 58 | F1 | 2 | 0.55 |
| 6FM2 | 12 | 2.0 | 178 | 35 | 61 | 67 | F1 | 6 | 0.80 |
| 6FM2.2 | 12 | 2.2 | 178 | 35 | 61 | 67 | F1 | 6 | 0.83 |
| 6FM2.3 | 12 | 2.3 | 178 | 35 | 61 | 67 | F1 | 6 | 0.90 |
| 6FM2E | 12 | 2.0 | 70 | 48 | 98 | 104 | F1 | 6 | 0.75 |
| 6FM2.3E | 12 | 2.3 | 0.80 | ||||||
| 6FM2.6 | 12 | 2.6 | 0.85 | ||||||
| 6FM7.5 | 12 | 7.5 | 151 | 65 | 94 | 100 | F1/F2 | 1 | 2.30 |
| 6FM8.5 | 12 | 8.5 | 151 | 65 | 94 | 100 | F1/F2 | 1 | 2.43 |
| 6FM9 | 12 | 9.0 | 151 | 65 | 94 | 100 | F1/F2 | 1 | 2.50 |
| 6FM9A | 12 | 9.0 | 151 | 65 | 94 | 100 | F1/F2 | 1 | 2.60 |
| 6FM10 | 12 | 10.0 | 151 | 65 | 111 | 117 | F2/F1 | 1 | 2.80 |
| 6FM10A | 12 | 10.0 | 151 | 98 | 95 | 101 | F2/F1 | 1 | 3.05 |
| 6FM10S | 12 | 10.0 | 181 | 77 | 167 | 167 | F17/F18 | 3 | 3.1 |
| 6FM10L | 12 | 10.0 | 181 | 77 | 117 | 117 | F2/F17 | 1 | 3.30 |
| 6FM10H | 12 | 10.0 | 151 | 98 | 95 | 101 | F2/F1 | 1 | 3.30 |
| 6FM12 | 12 | 12.0 | F2/F1 | 1 | 3.45 | ||||
| 6FM12H | 12 | 12.0 | 151 | 98 | 95 | 101 | F2/F1 | 1 | 3.60 |
| 6FM15 | 12 | 15.0 | 181 | 77 | 167 | 167 | F17/F18 | 3 | 4.8 |
| 6FM17 | 12 | 17.0 | 5.1 | ||||||
| 6FM18 | 12 | 18.0 | 5.25 | ||||||
| 6FM20 | 12 | 20.0 | 5.7 | ||||||
| 6FM20S | 12 | 20.0 | 181 | 78 | 172 | 172 | M5 | 3 | 6.5 |
| 6FM24 | 12 | 24.0 | 166 | 175 | 125 | 125 | F17/F18 | 3 | 7.6 |
| 6FM24S | 12 | 24.0 | 7.35 | ||||||
| 6FM26 | 12 | 26.0 | 7.8 | ||||||
| 6FM28 | 12 | 28.0 | 8.2 | ||||||
| 6FM24 | 12 | 24.0 | 165 | 125 | 175 | 182/175 | F18 | 3 | 7.5 |
| 6FM28A | 12 | 28.0 | 8.6 | ||||||
| 6FM31 | 12 | 31 | 195 | 130 | 155 | 166 | M6 | 6 | 9.6 |
| 6FM33 | 12 | 33 | 10 | ||||||
| 6FM35 | 12 | 35 | 10.5 | ||||||
| 6FM38 | 12 | 38 | 197 | 165 | 170 | 170 | M6 | 3 | 12 |
| 6FM40 | 12 | 40 | 197 | 165 | 170 | 170 | M6 | 3 | 12.5 |
| 6FM40H | 12 | 41 | 197 | 165 | 170 | 170 | M6 | 3 | 13 |
| 6FM42 | 12 | 42 | 197 | 165 | 170 | 170 | M6 | 3 | 13.5 |
| 6FM45 | 12 | 45 | 197 | 165 | 170 | 170 | M6 | 3 | 14 |
| 6FM50 | 12 | 50 | 229 | 138 | 211 | 214 | M6 | 6 | 15.5 |
| 6FM55 | 12 | 55 | M6 | 16.5 | |||||
| 6FM50A | 12 | 50 | 229 | 138 | 205 | 210 | M6 | 6 | 15.5 |
| 6FM60 | 12 | 60 | 260 | 168 | 211 | 214 | M6 | 6 | 19 |
| 6FM60E | 12 | 60 | 260 | 168 | 211 | 214 | M6 | 6 | 18.8 |
| 6FM70 | 12 | 70 | 260 | 168 | 211 | 214 | M6 | 6 | 21.5 |
| 6FM75 | 12 | 75 | 260 | 168 | 211 | 214 | M6 | 6 | 22.5 |
| 6FM80 | 12 | 80 | 260 | 168 | 211 | 214 | M6 | 6 | 23 |
| 6FM65 | 12 | 65 | 350 | 167 | 179 | 179 | M6 | 6 | 20 |
| 6FM80A | 12 | 80 | 350 | 167 | 179 | 179 | M6 | 6 | 22 |
| 6FM90E | 12 | 90 | 306 | 169 | 211 | 214 | M6 | 6 | 26.5 |
| 6FM95 | 12 | 95 | 306 | 169 | 211 | 214 | M6 | 6 | 27 |
| 6FM80S | 12 | 80 | 330 | 171 | 214 | 220 | M6 | 6 | 26 |
| 6FM90A | 12 | 90 | 330 | 171 | 214 | 220 | M6 | 6 | 27.3 |
| 6FM70S | 12 | 90 | 330 | 171 | 214 | 220 | M6 | 6 | 24.5 |
| 6FM90A | 12 | 90 | 330 | 171 | 214 | 220 | M6 | 27.5 | |
| 6FM90B | 12 | 90 | 330 | 171 | 214 | 220 | M6 | 6 | 28 |
| 6FM100E | 12 | 100 | 330 | 171 | 214 | 220 | M8 | 6 | 29 |
| 6FM100 | 12 | 100 | 330 | 171 | 214 | 220 | M8 | 6 | 30 |
Competitive Advantage:
- Gel condition: The effect of sealed reaction is over 99.9%.
- Minor self-discharge.
- Long service lift: The designed lift is over twelve years.
- Good deep charge cycle performance.
(1). What’s kinds of battery will you provide?
We have three type battery: AGM, Deep cycle and Gel.There are many different model battery here, we can supply 2v 100ah-3000ah battery, 4v 0.25ah-4v 4.5ah battery, 6v 1.3ah-6v 12ah battery, 12v 0.8ah-12v 250ah battery.
(2). Your battery can meet CE RoHS requirements?
Our battery are with the certificate of CE/RoHS.
(3). Can we change the color based on the original?
Yes, the color can be customer-made according to your requirement.
