AGM Gel Lead Acid Battery For Electric Bike Easy And Quick Connection
AGM Gel Lead Acid Battery For Electric Bike Easy And Quick Connection
Gel Lead Acid Battery Introduction
. Gel type suitable for deep cycle use
. Prevalling design in consturction
. Much more energy in comparison to the battery with the same rated capacity
. Front access terminals for easy and quick connection
Gel Lead Acid Battery Applications
Solar and wind energy storage system, Telecommunication, UPS and backup system, Emergency power, streetlight system
Gel Lead Acid Battery Specifications:
| Model | Voltage | Capacity | Dimension(mm) | Terminal | Weight | |||
| (V) | (Ah) | L | W | H | TH | Type | (Kg±2%) | |
| 3FM100G | 6 | 100 | 194 | 170 | 205 | 210 | M8 | 15.5 |
| 3FM150G | 6 | 150 | 260 | 180 | 245 | 250 | M8 | 23 |
| 3FM180G | 6 | 180 | 307 | 169 | 220 | 225 | M8 | 27 |
| 3FM200G | 6 | 200 | 321 | 176 | 226 | 229 | M8 | 29.5 |
| 3FM300G | 6 | 300 | 295 | 178 | 345 | 348 | M8 | 47 |
| 4FM180G | 8 | 180 | 260 | 182 | 295 | 298 | M8 | 36.5 |
| 6FM33G | 12 | 33 | 195 | 130 | 155 | 166 | M6 | 10 |
| 6FM75G | 12 | 70 | 260 | 168 | 211 | 214 | M6 | 22.5 |
| 6FM60G | 12 | 65 | 350 | 167 | 179 | 179 | M6 | 19.5 |
| 6FM65G | 12 | 65 | 350 | 167 | 179 | 179 | M6 | 20.5 |
| 6FM90G | 12 | 90 | 306 | 169 | 211 | 214 | M6 | 27 |
| 6FM100G | 12 | 100 | 330 | 171 | 214 | 220 | M8 | 30 |
| 6FM120G | 12 | 120 | 406 | 173 | 208 | 238 | M8 | 34 |
| 6FM134G | 12 | 120 | 340 | 172 | 282 | 284 | M8 | 42 |
| 6FM140G | 12 | 120 | 340 | 172 | 282 | 284 | M8 | 42.5 |
| 6FM150G | 12 | 150 | 485 | 172 | 240 | 240 | M8 | 43 |
| 6FM160G | 12 | 160 | 530 | 207 | 210 | 213 | M8 | 47.5 |
| 6FM180G | 12 | 180 | M8 | 52.5 | ||||
| 6FM200G | 12 | 200 | 522 | 238 | 218 | 221 | M8 | 60 |
| 6FM250G | 12 | 250 | 521 | 269 | 220 | 223 | M8 | 71 |
| GFM100G | 2 | 100 | 171 | 72 | 205 | 210 | M8 | 5.6 |
| GFM150G | 2 | 150 | 171 | 102 | 206 | 221 | M8 | 8 |
| GFM200G | 2 | 200 | 171 | 111 | 330 | 364 | M8 | 12.8 |
| GFM300G | 2 | 300 | 171 | 151 | 330 | 364 | M8 | 18 |
| GFM400G | 2 | 400 | 210 | 175 | 330 | 367 | M8 | 25 |
| GFM500G | 2 | 500 | 241 | 175 | 330 | 365 | M8 | 30 |
| GFM600G | 2 | 600 | 302 | 175 | 330 | 367 | M8 | 36 |
| GFM800G | 2 | 800 | 410 | 175 | 330 | 367 | M8 | 50 |
| GFM1000G | 2 | 1000 | 475 | 175 | 330 | 367 | M8 | 60 |
| GFM1500G | 2 | 1500 | 400 | 350 | 345 | 382 | M8 | 93 |
| GFM2000G | 2 | 2000 | 490 | 350 | 345 | 382 | M8 | 120 |
| GFM3000G | 2 | 3000 | 710 | 350 | 345 | 382 | M8 | 180 |
Competitive Advantage:
Capable of high discharge rates
Special grid and design technology
Manufacture with more than 15 years history
Special container size for more convenient installation

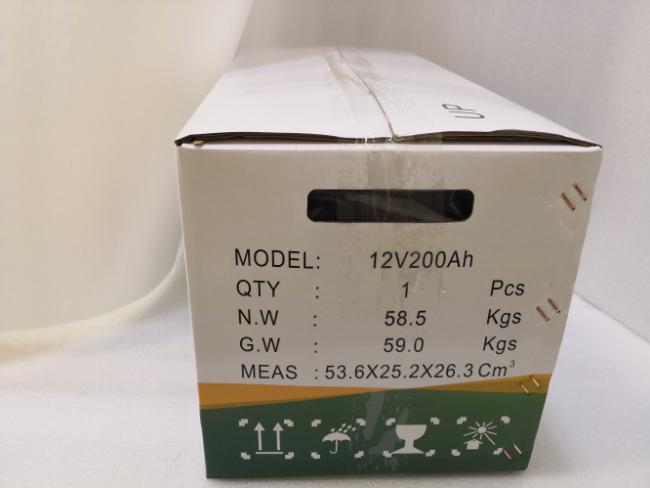

Packing
Get in Touch
Have questions about our products or want to discuss a custom order? Our team is ready to help you.
