Rechargeable M8 Gel Lead Acid Battery With Low Self Discharge Rate
Rechargeable M8 Gel Lead Acid Battery With Low Self Discharge Rate
Gel Lead Acid Battery Technical Features
-New high-density Active paste material
-heavy duty thick Grids
-10 days Curing Chamber Process
-Unique low Resistance Micro-Porous Glass Fiber Separators.
-Maintenance Free, Spill-Proof/ Leak Proof.
-Self Regulating Pressure Relief Valves.
-Low Self Discharge Rate .
-Faster Recharge Time.
-Excellent Recovery from Deep Discharge.
Gel Lead Acid Battery Applications:
Uninterruptible power supplies
Computer networks and the Internet
Digital channel station
Communication equipment
Gel Lead Acid Battery Specifications:
| Model | Voltage | Capacity | Dimension(mm) | Terminal | Weight | |||
| (V) | (Ah) | L | W | H | TH | Type | (Kg±2%) | |
| 3FM100G | 6 | 100 | 194 | 170 | 205 | 210 | M8 | 15.5 |
| 3FM150G | 6 | 150 | 260 | 180 | 245 | 250 | M8 | 23 |
| 3FM180G | 6 | 180 | 307 | 169 | 220 | 225 | M8 | 27 |
| 3FM200G | 6 | 200 | 321 | 176 | 226 | 229 | M8 | 29.5 |
| 3FM300G | 6 | 300 | 295 | 178 | 345 | 348 | M8 | 47 |
| 4FM180G | 8 | 180 | 260 | 182 | 295 | 298 | M8 | 36.5 |
| 6FM33G | 12 | 33 | 195 | 130 | 155 | 166 | M6 | 10 |
| 6FM40G | 12 | 40 | 197 | 165 | 170 | 170 | M6 | 12.5 |
| 6FM42G | 12 | 40 | 197 | 165 | 170 | 170 | M6 | 13.5 |
| 6FM50G | 12 | 50 | 229 | 138 | 211 | 214 | M6 | 15.5 |
| 6FM55G | 12 | 50 | 229 | 138 | 205 | 210 | M6 | 16.5 |
| 6FM70G | 12 | 70 | 260 | 168 | 211 | 214 | M6 | 21.5 |
| 6FM75G | 12 | 70 | 260 | 168 | 211 | 214 | M6 | 22.5 |
| 6FM60G | 12 | 65 | 350 | 167 | 179 | 179 | M6 | 19.5 |
| 6FM65G | 12 | 65 | 350 | 167 | 179 | 179 | M6 | 20.5 |
| 6FM90G | 12 | 90 | 306 | 169 | 211 | 214 | M6 | 27 |
| 6FM100G | 12 | 100 | 330 | 171 | 214 | 220 | M8 | 30 |
| 6FM120G | 12 | 120 | 406 | 173 | 208 | 238 | M8 | 34 |
| 6FM180G | 12 | 180 | 530 | 207 | 210 | 213 | M8 | 52.5 |
| 6FM200G | 12 | 200 | 522 | 238 | 218 | 221 | M8 | 60 |
| 6FM250G | 12 | 250 | 521 | 269 | 220 | 223 | M8 | 71 |
| GFM100G | 2 | 100 | 171 | 72 | 205 | 210 | M8 | 5.6 |
| GFM150G | 2 | 150 | 171 | 102 | 206 | 221 | M8 | 8 |
| GFM200G | 2 | 200 | 171 | 111 | 330 | 364 | M8 | 12.8 |
| GFM300G | 2 | 300 | 171 | 151 | 330 | 364 | M8 | 18 |
| GFM400G | 2 | 400 | 210 | 175 | 330 | 367 | M8 | 25 |
| GFM500G | 2 | 500 | 241 | 175 | 330 | 365 | M8 | 30 |
| GFM600G | 2 | 600 | 302 | 175 | 330 | 367 | M8 | 36 |
| GFM800G | 2 | 800 | 410 | 175 | 330 | 367 | M8 | 50 |
| GFM1000G | 2 | 1000 | 475 | 175 | 330 | 367 | M8 | 60 |
| GFM1500G | 2 | 1500 | 400 | 350 | 345 | 382 | M8 | 93 |
| GFM2000G | 2 | 2000 | 490 | 350 | 345 | 382 | M8 | 120 |
| GFM3000G | 2 | 3000 | 710 | 350 | 345 | 382 | M8 | 180 |
Competitive Advantage:
Capable of high discharge rates
Special grid and design technology
Manufacture with more than 15 years history
Special container size for more convenient installation

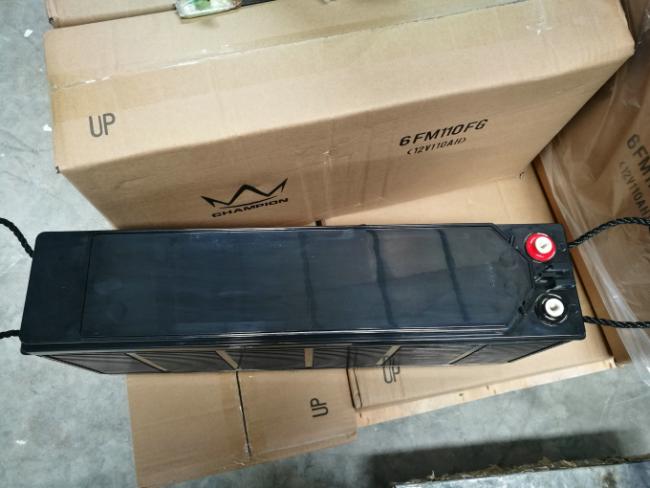

Gel Lead Acid Battery Packing
