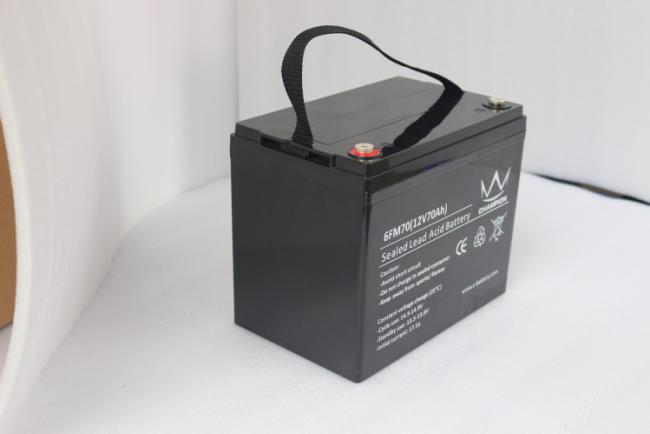

12v 70ah UPS Lead Acid Battery For Solar , UPS , Inverter , Converter
12v 70ah UPS Lead Acid Battery For Solar , UPS , Inverter , Converter
Application
Electric Powered Toys Electric Powered Vehicles
Control System Golf Cars and Buggies
Vacuum Cleaners Wheel Chairs
Medical Equipments UPS
Power Tools PVs
Construction:
Component ......Raw material Positive ........Lead dioxide Negative........Lead Container........ABS Cover........ABS Sealant ........Epoxy Resin
Safety valve .....EPDR Terminal ........Copper
Separator ........Fiber glass Electrolyte .......Sulfuric acid
| 6FM7 | 12 | 7.0 | 151 | 65 | 94 | 100 | F1/F2 | 1 | 2.1 |
| 6FM7A | 12 | 7.0 | 151 | 65 | 94 | 100 | F1/F2 | 1 | 2.15 |
| 6FM7.2 | 12 | 7.2 | 151 | 65 | 94 | 100 | F1/F2 | 1 | 2.20 |
| 6FM7.2A | 12 | 7.2 | 151 | 65 | 94 | 100 | F1/F2 | 1 | 2.25 |
| 6FM7.5 | 12 | 7.5 | 151 | 65 | 94 | 100 | F1/F2 | 1 | 2.30 |
| 6FM8.5 | 12 | 8.5 | 151 | 65 | 94 | 100 | F1/F2 | 1 | 2.43 |
| 6FM9 | 12 | 9.0 | 151 | 65 | 94 | 100 | F1/F2 | 1 | 2.50 |
| 6FM9A | 12 | 9.0 | 151 | 65 | 94 | 100 | F1/F2 | 1 | 2.60 |
| 6FM10 | 12 | 10.0 | 151 | 65 | 111 | 117 | F2/F1 | 1 | 2.80 |
| 6FM10A | 12 | 10.0 | 151 | 98 | 95 | 101 | F2/F1 | 1 | 3.05 |
| 6FM10S | 12 | 10.0 | 181 | 77 | 167 | 167 | F17/F18 | 3 | 3.1 |
| 6FM10L | 12 | 10.0 | 181 | 77 | 117 | 117 | F2/F17 | 1 | 3.30 |
| 6FM10H | 12 | 10.0 | 151 | 98 | 95 | 101 | F2/F1 | 1 | 3.30 |
| 6FM12 | 12 | 12.0 | F2/F1 | 1 | 3.45 | ||||
| 6FM12H | 12 | 12.0 | 151 | 98 | 95 | 101 | F2/F1 | 1 | 3.60 |
| 6FM15 | 12 | 15.0 | 181 | 77 | 167 | 167 | F17/F18 | 3 | 4.8 |
| 6FM17 | 12 | 17.0 | 5.1 | ||||||
| 6FM18 | 12 | 18.0 | 5.25 | ||||||
| 6FM20 | 12 | 20.0 | 5.7 | ||||||
| 6FM20S | 12 | 20.0 | 181 | 78 | 172 | 172 | M5 | 3 | 6.5 |
| 6FM24 | 12 | 24.0 | 166 | 175 | 125 | 125 | F17/F18 | 3 | 7.6 |
| 6FM24S | 12 | 24.0 | 7.35 | ||||||
| 6FM26 | 12 | 26.0 | 7.8 | ||||||
| 6FM28 | 12 | 28.0 | 8.2 | ||||||
| 6FM24 | 12 | 24.0 | 165 | 125 | 175 | 182/175 | F18 | 3 | 7.5 |
| 6FM28A | 12 | 28.0 | 8.6 | ||||||
| 6FM31 | 12 | 31 | 195 | 130 | 155 | 166 | M6 | 6 | 9.6 |
| 6FM33 | 12 | 33 | 10 | ||||||
| 6FM35 | 12 | 35 | 10.5 | ||||||
| 6FM38 | 12 | 38 | 197 | 165 | 170 | 170 | M6 | 3 | 12 |
| 6FM40 | 12 | 40 | 197 | 165 | 170 | 170 | M6 | 3 | 12.5 |
| 6FM40H | 12 | 41 | 197 | 165 | 170 | 170 | M6 | 3 | 13 |
| 6FM42 | 12 | 42 | 197 | 165 | 170 | 170 | M6 | 3 | 13.5 |
| 6FM45 | 12 | 45 | 197 | 165 | 170 | 170 | M6 | 3 | 14 |
| 6FM50 | 12 | 50 | 229 | 138 | 211 | 214 | M6 | 6 | 15.5 |
| 6FM55 | 12 | 55 | M6 | 16.5 | |||||
| 6FM50A | 12 | 50 | 229 | 138 | 205 | 210 | M6 | 6 | 15.5 |
| 6FM60 | 12 | 60 | 260 | 168 | 211 | 214 | M6 | 6 | 19 |
| 6FM60E | 12 | 60 | 260 | 168 | 211 | 214 | M6 | 6 | 18.8 |
| 6FM70 | 12 | 70 | 260 | 168 | 211 | 214 | M6 | 6 | 21.5 |
| 6FM75 | 12 | 75 | 260 | 168 | 211 | 214 | M6 | 6 | 22.5 |
| 6FM80 | 12 | 80 | 260 | 168 | 211 | 214 | M6 | 6 | 23 |
| 6FM65 | 12 | 65 | 350 | 167 | 179 | 179 | M6 | 6 | 20 |
| 6FM80A | 12 | 80 | 350 | 167 | 179 | 179 | M6 | 6 | 22 |
| 6FM90E | 12 | 90 | 306 | 169 | 211 | 214 | M6 | 6 | 26.5 |
| 6FM95 | 12 | 95 | 306 | 169 | 211 | 214 | M6 | 6 | 27 |
| 6FM80S | 12 | 80 | 330 | 171 | 214 | 220 | M6 | 6 | 26 |
| 6FM90A | 12 | 90 | 330 | 171 | 214 | 220 | M6 | 6 | 27.3 |
| 6FM70S | 12 | 90 | 330 | 171 | 214 | 220 | M6 | 6 | 24.5 |
| 6FM90A | 12 | 90 | 330 | 171 | 214 | 220 | M6 | 27.5 | |
| 6FM90B | 12 | 90 | 330 | 171 | 214 | 220 | M6 | 6 | 28 |
| 6FM100E | 12 | 100 | 330 | 171 | 214 | 220 | M8 | 6 | 29 |
| 6FM100 | 12 | 100 | 330 | 171 | 214 | 220 | M8 | 6 | 30 |
| 6FM110 | 12 | 110 | 330 | 171 | 214 | 220 | M8 | 6 | 32 |
| 6FM110B | 12 | 110 | 330 | 171 | 214 | 220 | M8 | 6 | 33 |
| 6FM120A | 12 | 120 | 409 | 176 | 225 | 225 | M8 | 6 | 34 |
| 6FM90S | 12 | 90 | 406 | 173 | 208 | 238 | M8 | 6 | 28 |
| 6FM110S | 12 | 110 | 32 | ||||||
| 6FM120 | 12 | 120 | 33 | ||||||
| 6FM120B | 12 | 120 | 280 | 265 | 207 | 227 | M8 | 6 | 37.5 |
| 6FM110A | 12 | 110 | 280 | 265 | 207 | 227 | M8 | 6 | 35.5 |
| 6FM140 | 12 | 140 | 280 | 265 | 207 | 227 | M8 | 6 | 39.5 |
| 6FM130 | 12 | 130 | 280 | 265 | 207 | 227 | M8 | 6 | 37.5 |
| 6FM134 | 12 | 135 | 340 | 172 | 282 | 284 | M8 | 6 | 42 |
| 6FM110SS | 12 | 110 | 485 | 172 | 240 | 240 | M8 | 6 | 35 |
| 6FM135S | 12 | 135 | 485 | 172 | 240 | 240 | M8 | 6 | 42 |
| 6FM150 | 12 | 150 | 485 | 172 | 240 | 240 | M8 | 6 | 43 |
| 6FM150S | 12 | 150 | 530 | 207 | 210 | 213 | M8 | 2 | 46.5 |
| 6FM160 | 12 | 160 | 530 | 207 | 210 | 213 | M8 | 2 | 47.5 |
| 6FM180 | 12 | 180 | 52.5 | ||||||
| 6FM135SS | 12 | 135 | 522 | 238 | 218 | 221 | M8 | 2 | 49 |
| 6FM160S | 12 | 160 | 522 | 238 | 218 | 221 | M8 | 2 | 47.5 |
| 6FM180S | 12 | 180 | 522 | 238 | 218 | 221 | M8 | 2 | 56 |
| 6FM190S | 12 | 190 | 57.5 | ||||||
| 6FM200 | 12 | 200 | 60 | ||||||
| 6FM220 | 12 | 220 | 522 | 238 | 218 | 221 | M8 | 2 | 62 |
| 6FM225 | 12 | 225 | 522 | 238 | 218 | 221 | M8 | 2 | 63 |
| 6FM240S | 12 | 240 | 521 | 269 | 220 | 223 | M8 | 2 | 65 |
| 6FM250 | 12 | 250 | 521 | 269 | 220 | 223 | M8 | 2 | 71 |
Competitive Advantage:
Better discharge characteristics than normal VRLA batteries.
Non-Spillable construction design.
ABS containers and covers(UL94HB, UL94V-0) optional.
Safety valve installation for explosion proof.
Higher safety & reliable construction.
Extra durability and deep cycle ability for heavy demand applications.
Low self discharge characteristic.
Flexibility design for multiple install positions.
