Nationstar 3.9mm Church LED Screen indoor , 4 by 3 Meters Church LED Display Die Casting
Nationstar 3.9mm Church LED Screen indoor , 4 by 3 Meters Church LED Display Die Casting
LED Church Screen Technical Parameters
| P3.9 Church LED Screen Technical Parameter | |||
| Pixel Pitch | 3.9mm | ||
| Module Resolution | 64*128dots | ||
| Module Size | 250*500mm | ||
| Cabinet Size(W*H*D) | 500*1000*80mm | ||
| Cabinet Resolution | 128*256dots | ||
| Material | Die Casting Aluminum | ||
| Brightness | ≥1000cd/㎡ | ||
| Pixel Density | 65536dots/m2 | ||
| Driving Method | 1/16 scan constant current | ||
| View Angle | 140H,120V | ||
| Optimal Viewing Distance | ≥3 | ||
| Fresh requency | ≥1920Hz | ||
| Input Voltage | AC220-240V/50Hz | ||
| Power Consumption | Max750W/㎡ Average:350W/㎡ | ||
| Cabient weight | 12.5kg/Cabinet | ||
| MTBF | >10,000 hours | ||
| Life span | ≥100,000 hours | ||
| Earth Leakage Current | <3mA | ||
| Temperature-operating | ﹣20℃～50℃ | ||
| Humidity-operating | 10%～95% | ||

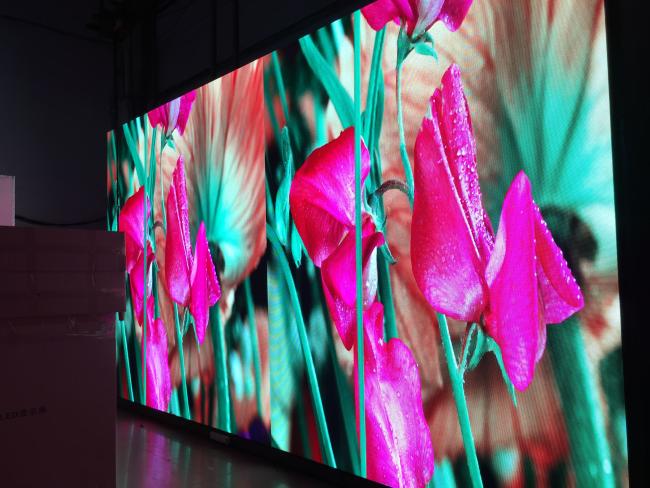

Product Photos:

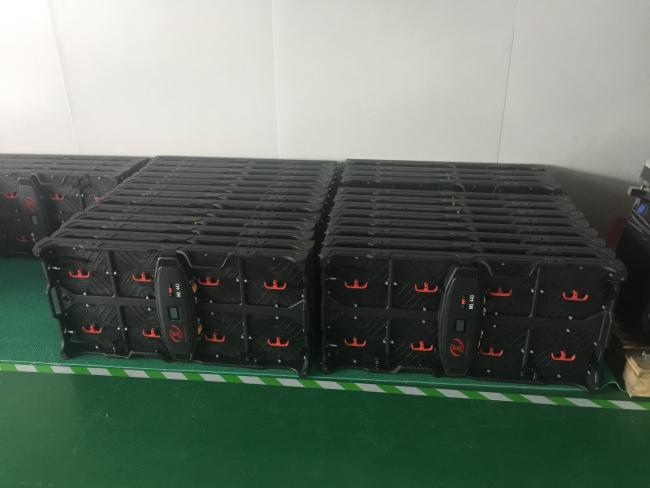

500X1000mm cabinet with Die casting aluminum, every Panel is manufactured with CNC
auto-machines of high precision so that to guarantee its seamlessness during assembly.

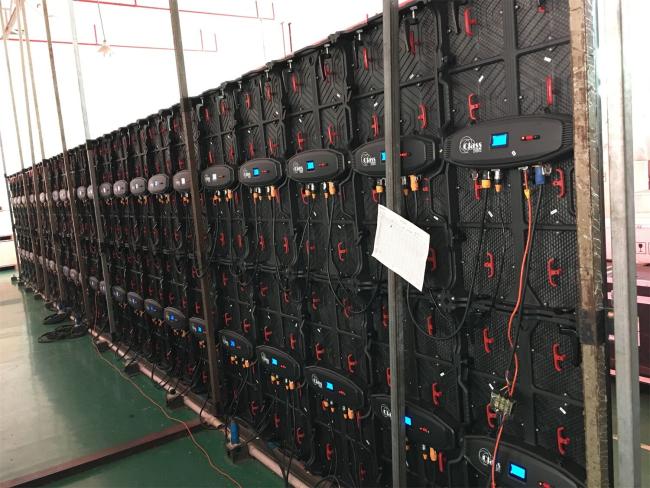

Before the delivery, we will do 72 hours aging test to make sure the screen quality.
Strong Locks for hanging installation
The cabinets locks are smooth edged, easy handling and strong that you can hang up 20
pcs cabinet in vertical column.
500*500 mm cabients and 500*1000 mm cabinets can connect together easily.
Product Applications:
This LED screen is widely used for church,concert, stage, touring, promotion event, church , trade, fashion show etc.
Popular size for church are 4x2.5m, 4x3m, 6x3m, in general, our customer prefer to hanging installation.

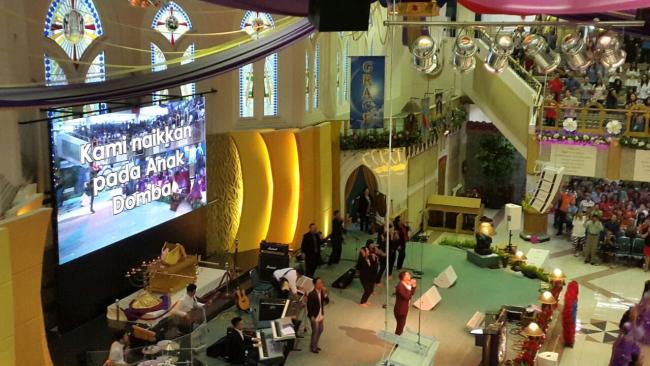

6x3m led church screen used in Indonisia
Concert Stage Background LED Display Advantages
- High resolution of indoor full color LED screen;
- Integrated encapsulation is blessed with higher reliability;
- Good color mixture from far or very near distance;
- Good color consistency transparent picture;
- Good picture uniformity;
- Wide viewing angle;
- Higher contrast ratio;
- The most economical and rational solution for 3 in 1 full color technology.
