HD Full Color LED Screen Video Wall Stage Background Indoor P3mm AC240V/50HZ
HD Full Color Stage LED Background Indoor P3mm LED Video Wall
LED Video Wall Technical Parameters
| Technical Parameter | |
| Led Module Specifications | |
| Pixel Pitch | 3mm |
| Pixel Configuration | SMD2121 |
| Module Resolution | 64x64 dots |
| Module Pixels | 4096 dots |
| Module Size | 192x192mm |
| Led Cabinet Specifications | |
| Cabinet Size(WXHXD) | 576x576x65mm |
| Cabinet Resolution | 192x192 dots |
| Module Quantity | 9pcs |
| Cabinet Pixels | 111,111 dots/m2 |
| Material | Iron Cabinet |
| Whole Led Screen Specification | |
| Brightness | ≥1200 cd/m2 |
| Pixel Density | 111,111 dots/m2 |
| Driving Method | 1/32 scan constant current |
| Viewing Angel | 140H,120V |
| Optimal Viewing Distance | ≥3m |
| Brightness Control | Red,green and blue 4096 grade/each |
| IC | MBI5124 |
| Fresh Requency | ≥ 3840HZ |
| Frame Frequency | 50 HZ |
| Input Voltage | AC240V/50HZ |
| Defact Rate | ≤0.00001 |
| Power Consumption | Max: 900W/m2 Average: 450W/m2 |
| Screen Weight | 9kg/cabinet |
| MTBF | >10,000 hours |
| Earth Leakage Current | <3mA |
| Protective Grade | IP43 |
| Temperature Operating | -35℃-50℃ |
| Humidity Operating | 10%-95% |
| Color Depth | 16 bit |
| Controlling System | Nova(sending card,receiving card and hubs) |
| Operating System | Window Xp/7,8,10 |

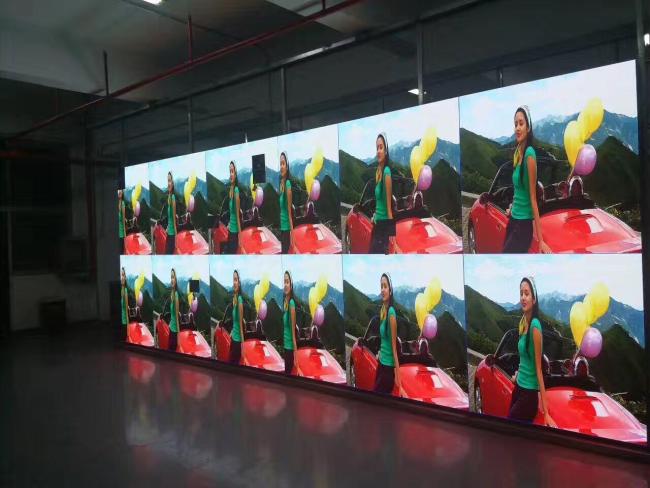

Product Photos:

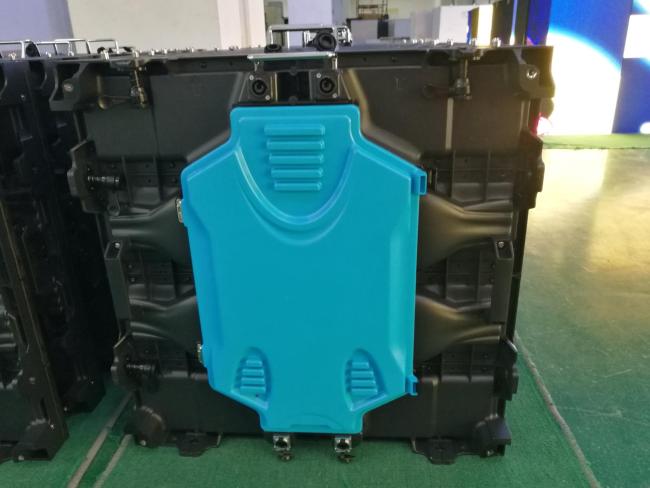

LED Cabinets 576mmX576mm

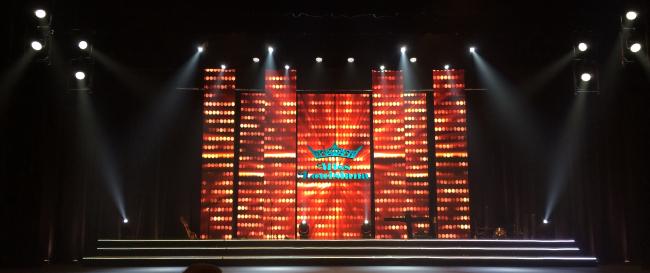

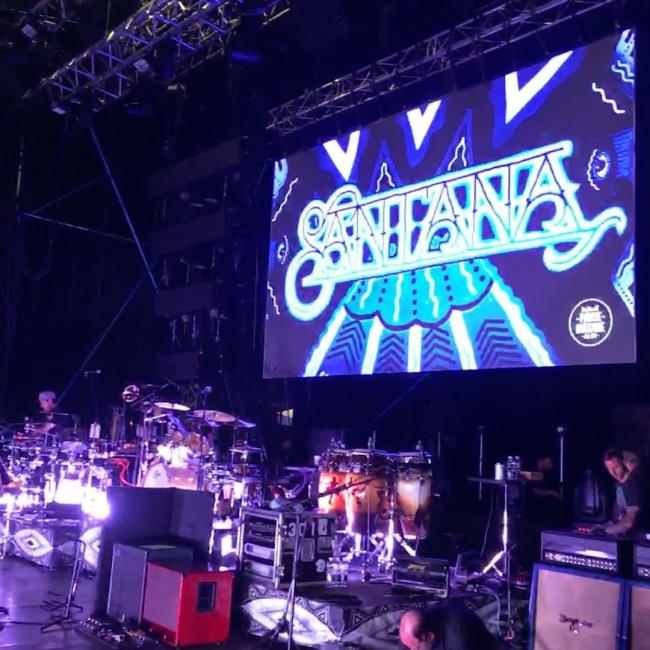

Product Applications:
Indoor stage events, presentations, Conference ,TV studios, multimedia meeting, mobile entertainers, event video productions , full color demos, and other LED Screens Applications.
