Light Weight P3.9 Indoor Stage Led Video Panel Rental Die Casting Aluminum

Price Negotiable
Price: negoationable
MOQ: 6 square meters
Delivery Time: 25 working days
Brand: Eachinled
Product Description

P3.9 Indoor Stage LED Screen Event Rental Use
Product Describtion:
Light weight: One cabinet weighs 8kg and can be left up by one hand. The user-friendly locking system saves installation time.
Slim cabinet: the die-cast cabinet features high strength, high toughness, high precision and high deformation resistance. The cabinet is 88mm thick and can achieve seamless assembly.
Flat screen surface: the flatness tolerrance is less than 0.3mm, which effectively helps to eleminate the mosaic problem.

Product Parameter:

Indoor Rental led screen specification
Pixel2.97mm3.91mm4.81mm
LED EncapsulationSMD1515SMD2121SMD2121
Brightness1100nit1100nit1100nit
Module Size(mm)250x250250x250/ 250×500250×500/250x250
Cabinet Size500x500x80500×1000×80/500x500x80500×1000×80/500x500x80
MaterialDie Casting AluminumDie Casting AluminumDie Casting Aluminum
Scan Method1/14 Scan1/16 Scan1/13 Scan
Weight8Kg12.5Kg/ 8Kg12.5Kg/ 8Kg
Cabinet Resolution84x168/84x84dots256x128dots / 128x128dots104x208dots/104x104dots
Pixel Density112896Pixel/65536 Pixel/43264 Pixel/
Refresh Frequency≥1920Hz
Viewing Angle140/140140/140140/140
Working Voltage110-220Volt/50/60hz110-220Volt/50/60hz110-220Volt/50/60hz
IP waterproofIP43IP43IP43
Optimal Viewing Distance≥ 2m≥ 3m≥ 4m
Working Temperature-20~45 ℃- 20~40℃-20~45 ℃

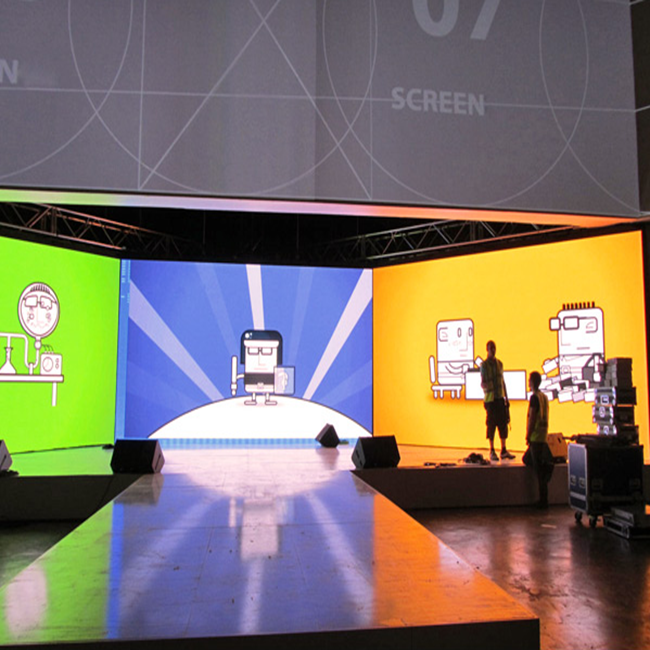

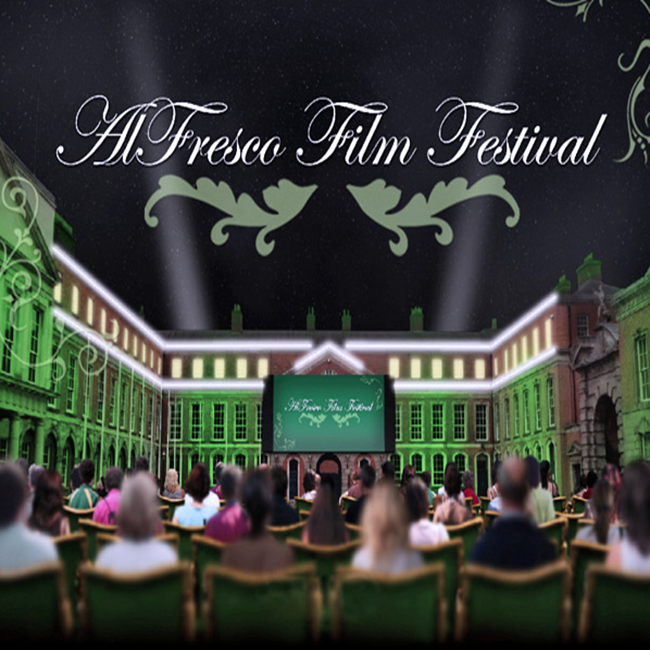

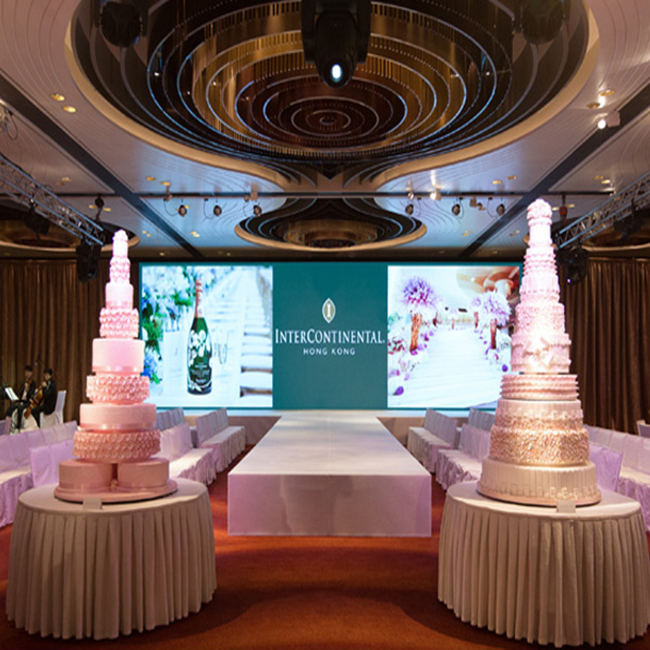

Application:



About Our Company:
Shenzhen Eachinled Optoelectronics Co.Ltd is a manufacturer which have lead-edge technologies in solving problems of led field.Jinhe was established in 2006 Shenzhen, with a plant area of 10,000 square meters, stuffs is 300 members,.At the end of 2012,the producing capability was reached up to 10000sq.m per month.It become the leading manufacturer in the LED industry soon.It's one of the fastest growing companies in China.
Stable-quality is the foundation that makes us survive,high quality products and good sales performance is the supporter that drives us moving,innovation and invention is the guarantee that makes the product competitively,talent is a big power that pushes the company become stronger and bigger.Widely using automatic machine production line,it is one of the companies which has the most automated stage of production and have completely equipment and facilities.Our products have passed International Environmental Certification of ROHS,CE,and CCC.That makes the production internationalized.Our products have been sold to more than 60 countries and areas in the world.
