P2.97 SMD1515 Indoor Led Video Wall Rental LED Display Screen High Refresh Rate
P2.97 SMD1515 Indoor Rental LED Display Screen Video Wall High Refresh Rate With MBI5153 IC
Product Description:
Indoor stage, TV studio, concert, theme park ,Stage Performance ,Live Events ,clubs, presentation ,concerts, festivals, , halls, shop windows or exhibitions ,conference ,Freestanding stage backdrops and other places for advertising and entertaining purposes.
1. High refresh rate can be reached 3840HZ. With the best quality IC, it can show you the perfect visual effect.
2. No need to disassemble the whole screen for maintenance. Each components can be detached individually for that purpose.
3. The Die casting aluminum cabinet makes the single cabinet as light as 8KG.
4. Specially designed masks can make the horizontal viewing angle up to 140 degrees.
5. The aluminum structure requires no fan. Combined with the noiseless power supply, the cabinet is totally silent.
6. Combined with the brightness auto-adjusting technology and PFC power supply, low current can save energy over 35%, it means to save 35% money.
Technical Specifications:
| Small Pixel Outdoor LED Display | ||
| Module | Pixel Pitch | 2.97mm |
| Module size | 250mmx250mm | |
| Density of pixel/(dots/m2) | 112896 | |
| Led encapsulation | SMD1515 | |
| Resolution of module | 84X84 dots | |
| Main | Optimum viewing distance | 3m |
| View angle / ° | 140 H,120 V | |
| Max power consumption/W/M2 | 400 | |
| Size of cabinet/mm | 500X500 | |
| Resolution of cabinet | 168x168 | |
| Weight of cabinet/kg | 8 | |
| Driving method | 1/14 scan constant current | |
| Refresh rate Hz/S | ≥3840 | |
| Luminance of white balance | ≥1000 nits | |
| Waterproof rate | IP43(front)/ IP43(back) | |
| Working vlotage | 110-220 VAC/+/- 10% | |
| Input signal | RF,S-Video,RGB,RGBH,YUV,YC&Composition ,etc | |
| Control system | Novastar(sending card,receiving cards and Hubs) | |
| Average of non-failure life | >50,00h | |
| Life span | >100,000h | |
| Functionaless dot rate |
<0.01% |
|

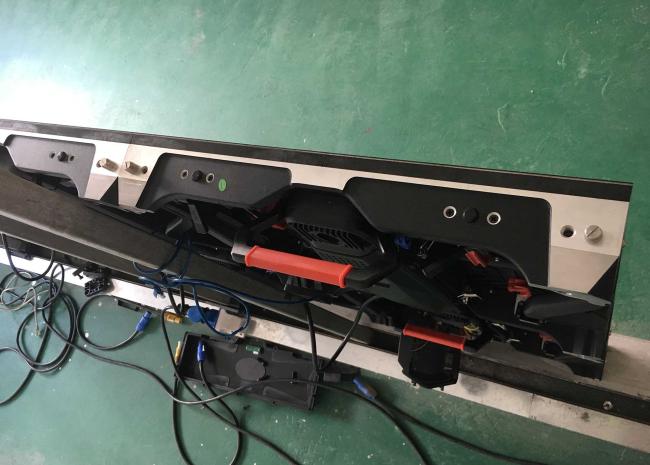

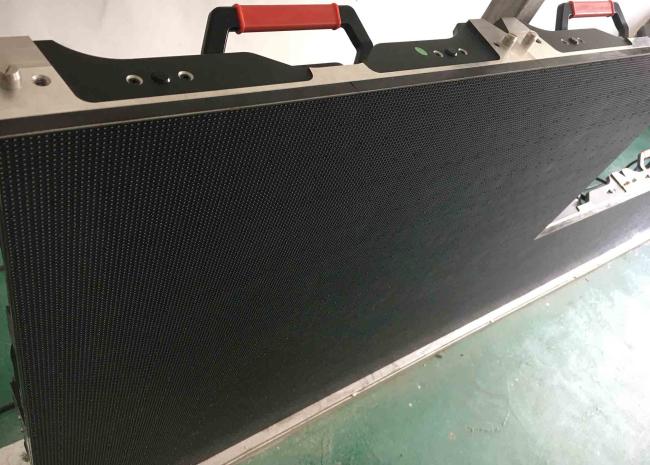

Detail Product Pictures:
FAQ:
Q1: Can the LED display screen work at corrosive gas environment?
A1: Please do not install the display in corrosive gas environment containing acid or base components, such as chemical warehouse.
Q2: Can the LED display screen work at electromagnetic radiation environment?
A2: Please do not install display when electromagnetic radiation and radio frequency radiation environment is over field strength 5V/m.
Q3: Can the LED display screen work when lightning?
A3: If necessary, users have to install surge switches in the distribution box and ground fault protection to avoid lightning strikes. Do not use the display in strong lightning and other severe weather.
Q4: Can the LED display screen display long time in one kind of color?
A4: Do not display a long time in a white, red, green, blue or other bright screen, because this will affect the display lifetime.
Q5: How long can the LED display screen display?
A5: LED display at least rest 2 hours a day. Normally turn on the screen at least twice a week or more (Especially in the rainy season it is necessary to turn on the display every day). And it maintains more than 2 hours every time.
