Pixel Pitch 3.9mm Outdoor Stage LED Screen 1/16 Scan Driving For HD Events Rental
Pixel Pitch 3.9mm Outdoor Stage LED Screen for HD Events Rental
Led Cabinet Description:
1. CNC + Die Casting process cabinets
The flatness of led panel surface is greatly improved by its CNC+Die Casting molding process (precision up to 0.05mm), thus it ensures the full screen’s seamless and precise installation.
2. Super Slim
The thickness is 60mm. This saves your installation space and packing size, it ensures the greatly fast movement and installation.
3. Light Weight
The weight of full panel is only 8KG, can be easily hanging up by one person,
saves your time and labor cost.
4. Convenient and Fast Installation
We adapted Plug and play designing for this series, the power and signal connector is quite easy and fast for in&out operation; and the signal connection can be in horizontal and vertical ways, it satisfied the rental application in any cases.
5. Can make Curved Led Video Wall.
6. New led module design
125mmX500mm led modle
(small pixel pitch P3.91 outdoor led video display) Specification :
| Pixel Pitch | 3.9mm |
| Pixel Configuration | SMD2121 |
| Module Resolution | 32*128dots |
| Module Pixles | 4096dots |
| Module Size | 125mm*500mm |
| LED Cabinet Specification | |
| Cabinet Size(W*H*D) | 500*500*70mm |
| Cabinet Resolution | 128*128dots |
| Module Quanity | 8pcs |
| Cabinet Pixels | 16384dots |
| Material | Die Casting Aluminum |
| Brightness | ≥5500cd/m2 |
| Pixel Density | 65536dots/m2 |
| Driving Method | 1/16 scan constant current |
| View Angle | 140H,120V |
| Optimal Viewing Distance | ≥3 |
| Brightness Control | Red,Green and Blue 4096 Grade/Each |
| Fresh requency | ≥2000Hz |
| Frame Frequency | 60Hz |
| Input Voltage | AC100 - 120V/50Hz |
| AC200 - 240V/50Hz | |
| Defects Rate | ≤0.00001 |
| Power Consumption | Max:160W/Cabinet Average:80W/Cabinet |
| Screen weight | 9kg/Cabinet |
| MTBF | >10,000 hours |
| Life span | ≥100,000 hours |
| Earth Leakage Current | <3mA |

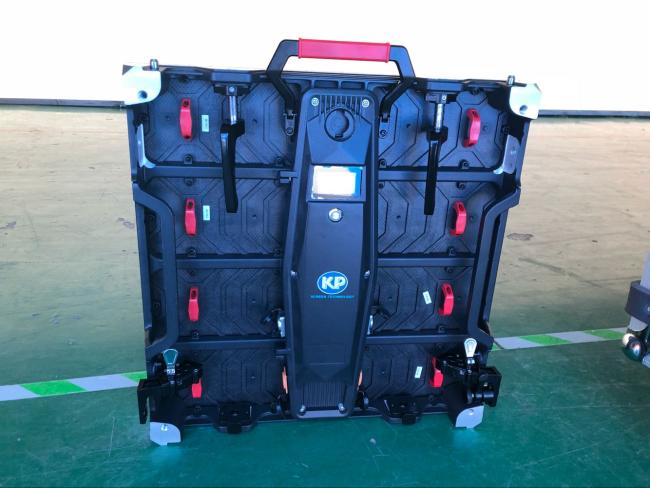

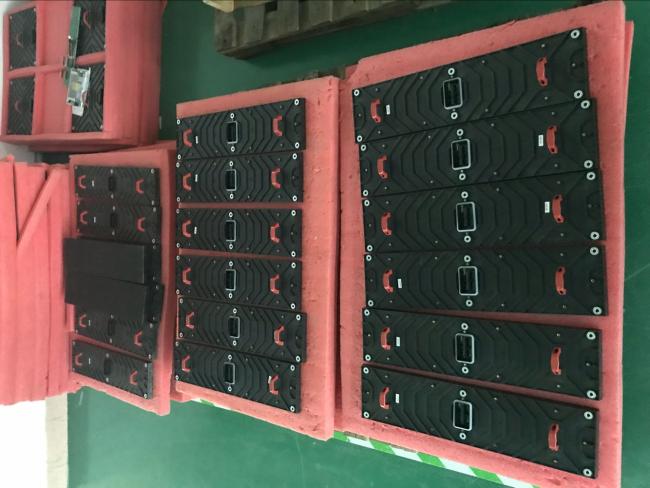

P3.91 Led Cabinet Product Photos:

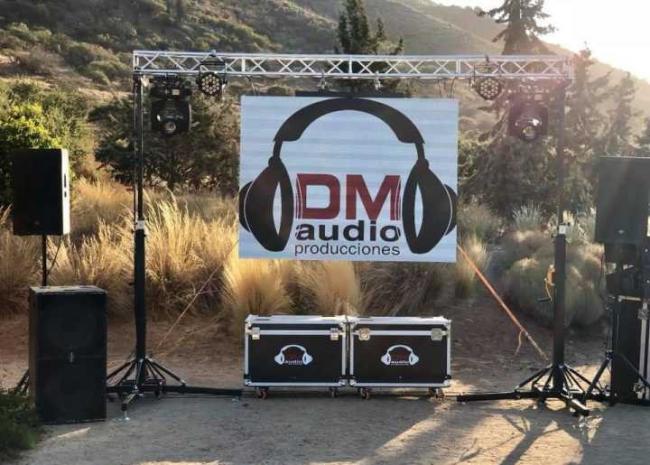

Applications:
broadcast, auditoriums, stage events, concerts, malls, market squares, offices, hotels, restaurants, banquets , sports, entertainment and other special event.
Outdoor stage shows ,big concert, wedding background , media Facade , Video Productions
LED screens are perfect for large crowds and big venues: indoor or outdoor, day or night!
Eachinled will suggest a best led video wall that suit your event needs and design
Every event is special and you only get one chance to deliver your message - Let us assist you
FAQ
Q1.What details need to provide before get a quotation?
A1: The buyer needs to provide pixel pitch, usage, dimension of screen and as more details as possible.
Q2: What are the terms of delivery?
A2: We accept EXW, FOB, CFR, CIF, DDU or Express (fast delivery).
Q3: How long could i receive the inquiry reply?
A3: You will get a reply within 24 hours.
