Wholesales outdoor P3.91 LED rental display screen, Corporate LED Video Wall Hire
2019 Newest P3.91mm Outdoor Rental LED Screen SMD1921 110-240 Volt 500mm*500mm Cabinet
Product Description:
1. High refresh rate can be reached 3840HZ. With the best quality IC ICN2053, it can show you the perfect visual effect.
2. No need to disassemble the whole screen for maintenance. Each components can be detached individually for that purpose.
3. The Die casting aluminum cabinet makes the single cabinet as light ONLY 8.5KG.
4. Specially designed masks can make the horizontal viewing angle up to 140 degrees.
5. The aluminum structure requires no fan. Combined with the noiseless power supply, the cabinet is totally silent.
6. Combined with the brightness auto-adjusting technology and PFC power supply, low current can save energy over 35%, it means to save 35% money.
Technical Specifications:
| Pixel 3.91MM Outdoor Rental led video wall | ||
| Module | Pixel Pitch | 3.91mm |
| Module size | 500mmx125mm | |
| Density of pixel/(dots/m2) | 65536 | |
| Led encapsulation | Nationstar SMD1921 | |
| Resolution of module | 128X32 dots | |
| Main | Optimum viewing distance | 4m |
| View angle / ° | 140 H,120 V | |
| Max power consumption/W/M2 | 800 | |
| Size of cabinet/mm | 500X500mm or 500x1000mm optional | |
| Resolution of cabinet | 128x256dots | |
| Weight of cabinet/kg | 8.5KG | |
| Driving method | 1/16 scan constant current | |
| Refresh rate Hz/S | ≥3840 | |
| Luminance of white balance | ≥5500 nits | |
| Waterproof rate | IP65(front)/ IP54(back) | |
| Working vlotage | 110-220 VAC/+/- 10% | |
| Input signal | RF,S-Video,RGB,RGBH,YUV,YC&Composition ,etc | |
| Control system | Novastar(sending card,receiving cards and Hubs) | |
| Average of non-failure life | >50,00h | |
| Life span | >100,000h | |
| Functionaless dot rate |
<0.01% |
|
Detail Product Pictures:

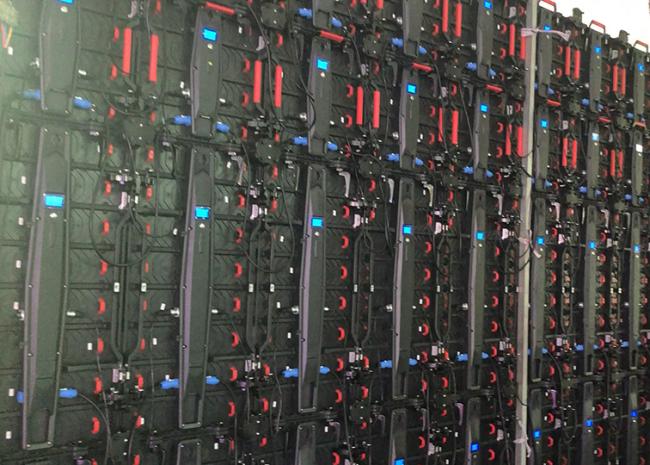

For the new design, it is 500x125mm module size, there don't have left or right difference. Also the recieving card change to A4S, from the picture, you could easily to be it is mounted by 500x500mm cabinet together with 500x1000mm cabinets.

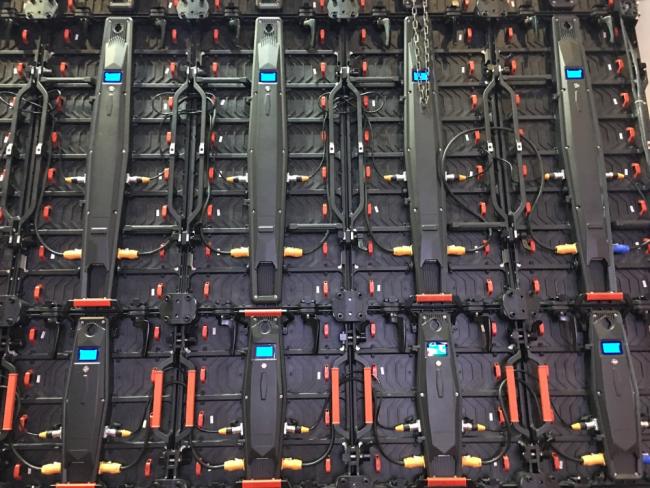

The LCD sign is blue, means the power supply and signal are works well. Otherwise it will become red, from the backside of the led screen, you could easily to know which one is good or falut.
We will offer the full set of the led screens, like video processors, haning bar, flight cases.
Only the higher brightness, it can make a good display effect! With 3840Hz fresh frequency rate, there are no goast on the screen! Nationstar led lamps will assure the quality.
