Waterproof P4.81 Outdoor Rental Led Screen 5500 Nits Brightness Lightweight For Stage
Waterproof P4.81 Outdoor Rental led Screen Light Weight For Stage
Parameter:
| Pixel pitch | 3.91mm | 4.81mm |
| Pixel density(dots/sqm) | 65536 | 43264 |
| Led encapsulation | SMD1921 | SMD2525 |
| Module size(mm) | 500x125 | 500x125 |
| Cabinet weight(kg) | 13 | 13 |
| Cabinet size(mm) | 500x1000 | 500x1000 |
| Brightness | ≥5500 nits | ≥5500 nits |
| Refresh rate | ≥1920 hz | ≥1920 hz |
| Grey scale | 14~16 bits | 14~16 bits |
| IP rating(front/rear) | IP65/IP54 | IP65/IP54 |
Selling Points:

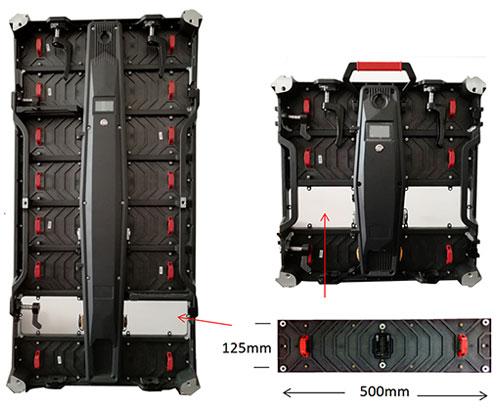

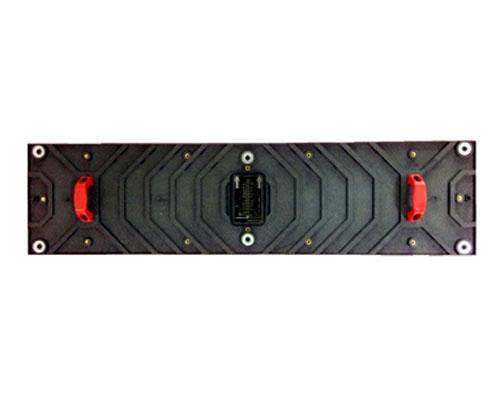

1) One single type led module
It can much reduce the cost for spare parts.
2) Easy Maintenance
modules can be taken out without opening the back door.
power suppliers are fixed without screws.

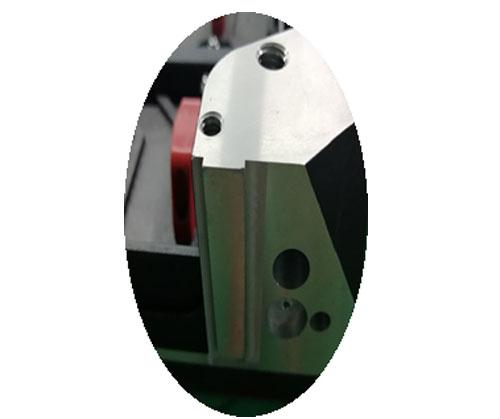

3) Lamp protection
at the bottom of cabinet, there is special design which can help to protect lamp during installation.

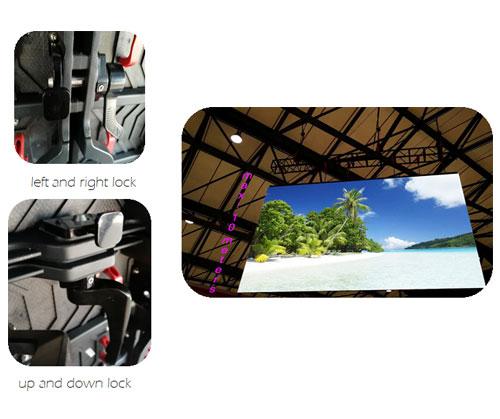

4) Convenient and strong Locks
Lock operation is easy enough to fasten installation and dismantal. It can burden 10 meters for vertical hanging and makes sure of seamless connection

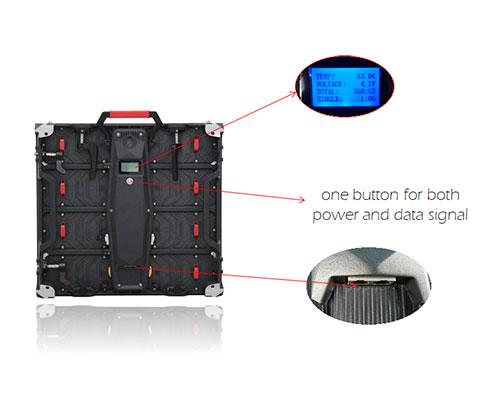

5) One button for both power and data signal

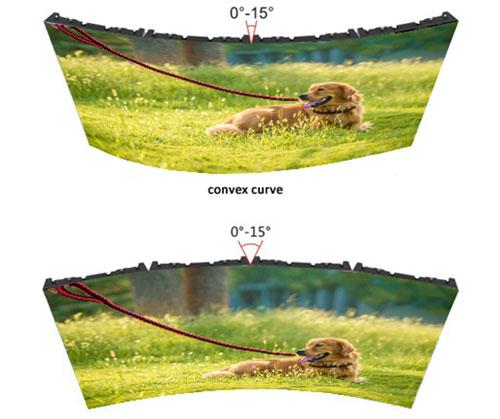

6) Curve Installation is available for both 500*500mm and 500*1000 mm cabinets

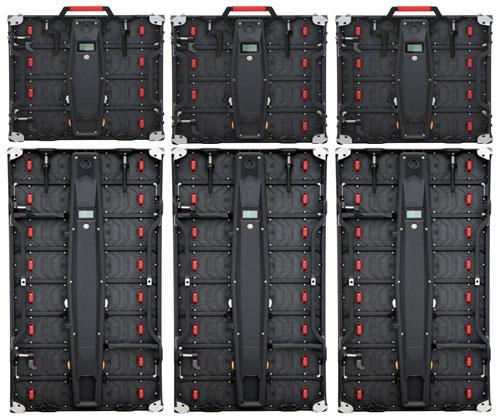

7) 500*500 mm cabinets and 500*1000mm cabinets can match each other easily.

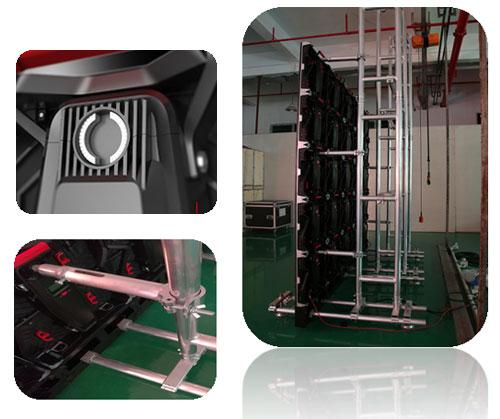

8) Easy ground installation
Special structural design that helps you to install the screen on ground easily
Application:

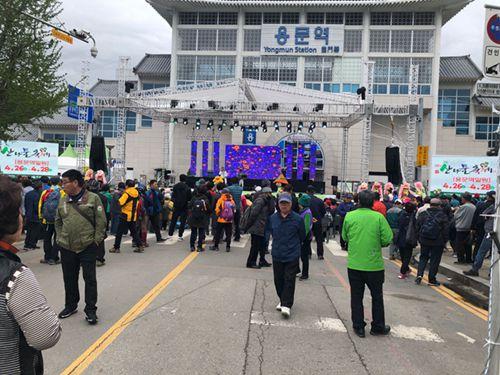

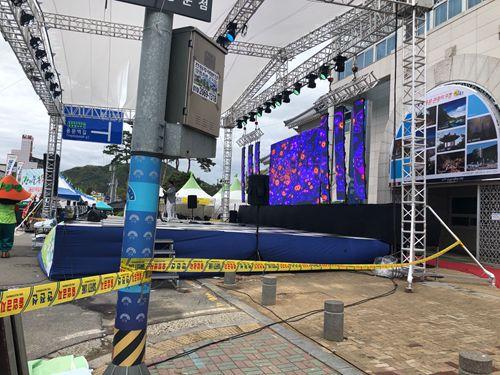

24sqm in Korea
About us:
Shenzhen Eachinled Optoelectronics Co.Ltd is a manufacturer which have lead-edge technologies in solving problems of led field.Jinhe was established in 2006 Shenzhen, with a plant area of 10,000 square meters, stuffs is 300 members,.At the end of 2012,the producing capability was reached up to 10000sq.m per month.It become the leading manufacturer in the LED industry soon.It's one of the fastest growing companies in China.
Stable-quality is the foundation that makes us survive,high quality products and good sales performance is the supporter that drives us moving,innovation and invention is the guarantee that makes the product competitively,talent is a big power that pushes the company become stronger and bigger.Widely using automatic machine production line,it is one of the companies which has the most automated stage of production and have completely equipment and facilities.Our products have passed International Environmental Certification of ROHS,CE,and CCC.That makes the production internationalized.Our products have been sold to more than 60 countries and areas in the world.
Certifications:
FAQ:
Q1: What's the pixel pitch for Outdoor LED Display Screen ?
A1: 3.91mm/4mm/4.8mm/5mm/5.95mm/6mm/6.4mm/8mm/10mm/12.8mm
Q2: Where is outdoor LED display screen used for?
A2: Outdoor rental use. Widely used for backdrop of staging event, rental business, liveshow, concert, etc. Outdoor fixed installation use, outdoor advertising.
Q3: What is the brightness of outdoor LED diplay screen?
A3: Normally, with the best SMD3535 LED lamp the brightness of Outdoor LED diplay screen can reach above 8000 cd/m2, SMD2727 can reach above 6000 cd/m2, and SMD1921 can reach above 3500 cd/m2.
Q4: What is the lead time?
A4: Regarding mass order, if we have available raw material, the lead time will around 15 working days, otherwise, would be 25-30 working days
Q5: What is the payment method?
A5: Our usually practice for payment is by T/T for the mass order.
