Ultra Thin 3.9MM LED Screen Die Casting Aluminum Cabinet For Big Stage Concerts
HD Events Rental Indoor Led Video Wall With 3.9mm 3840Hz Led Modules
P3.9mm Led Vieo Wall Specifications
| Parameters | Indoor |
| Pixel Pitch(mm) | 3.9 |
| LED type | SMD 2121 |
| Pixel per Module(Pixels/㎡) | 65,536 |
| Module Size(mm) | 250*250 |
| Brightness(cd/㎡) | 1000 |
| Viewing Angle(H/V) | H:140/V:100 |
| Cabinet size(mm*mm) | 500*500*65 |
| Cabinet Weight(kg) | ≈8kg |
| Display Refresh Rate(Hz) | ≥3840 |
| Input Power Frequency(Hz) | 50/60 |
| Input Voltage(Nomina)(V) | AC110,220,110-240 |
| Input Power(Max)(W/㎡) | ≈600 |
| Input Power(Aveerage)(W/㎡) | ≈300 |
| Lifepan(H) | ≥50,000 |
- LED Type: SMD 2121
- Pixel Configuration:1R1G1B(3 in 1)
- Brightness (nit): 1000
- Refresh Rate (Hz): 3840
- Panel Material: CNC + Die Cast Aluminum
- Modules Per Panel: 4
- Module Dimensions: 250×250mm
- Viewing Angle (H/V) (°): 160/140
- Send/Receive: NovaStar
- Power Cable : Seetronic
- Data Cable: Seetronic
- IP Rating (Front/Rear): IP40/IP21
- Certificate: FC | CE | RoHS
- Driving Method:1/16 scan
- Optimal Viewing Distance: ≥4m
- Working Voltage : AC 220V/110V ±10%
- Operating Temperature :–10℃~ 45℃
-
Control Mode: Novastar Synchronous System with Control via DVI Novastar A4S

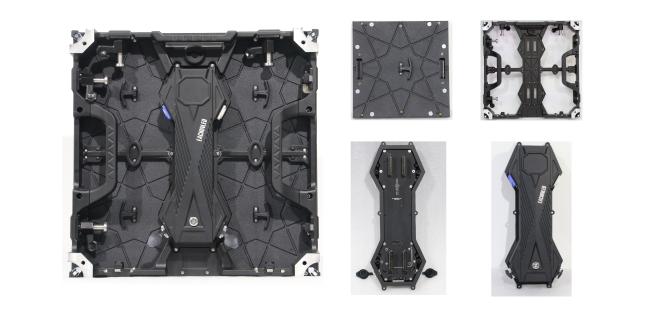

P3.91mm Led Video Screen Details

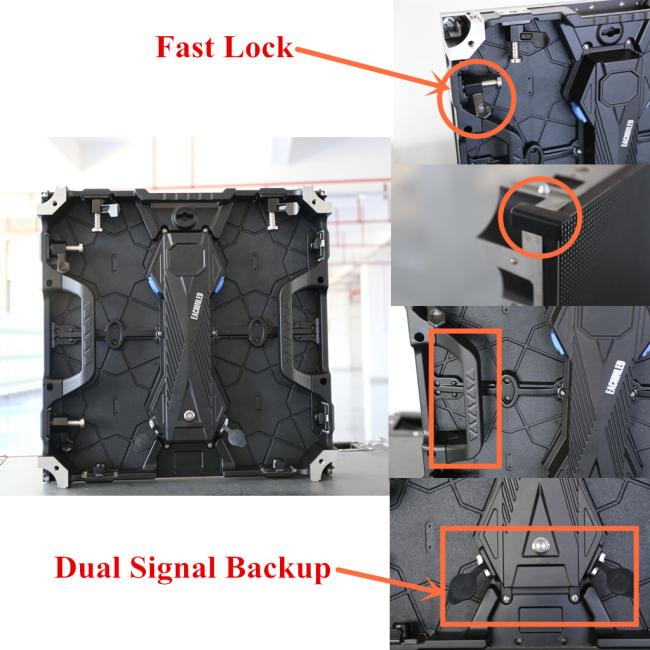

1. Automatic Locking , Quick Connection

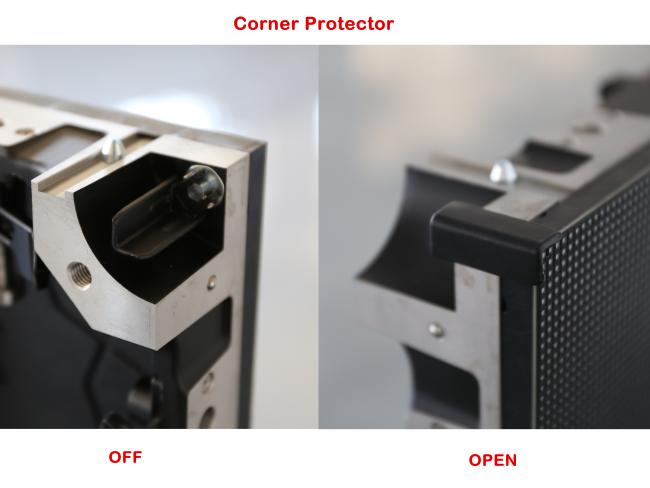

2. Corner Protectors to protect the led modules
mean significantly less chance of damage to LED lamps during the shipment and when you set up and tear down the led screen.
3. the power supply module and receiving card can easily be swapped as a single unit and replacing it with a new one.
The LED Video Screen is made up of a series of modular ‘modules’ which can be assembled into different sizes. Each modules relies on thousands of tiny electronic dots that light up dynamically. Seen at a distance, these points of light resolve into a stunning image!
These LED displays are NOT the same as the ones you use for television viewing. These types of LCD displays do not function in direct sunlight, and perform poorly in daylight. (Just take your TV or laptop outside to see for yourself) They are typically one-piece and their maximum practical size is limited to about 80-inches.
But the led screen can easy make a big size that more than 10m length and 10m height as you like
How about the size of project?
A: Please offer the size with "width by height" of project. We wil offer the suitable solution for your project size. I will appreciate it if any drawing files about installation offered.
What's the difference between the projector and the led wall ?
A: The brightness and the image effect is a big difference
as the following photos show that
Eachinled. an innovative and professional company that devotes to developing, manufacturing and marketing LED Display products.
Our led product include HD LED Video walls ,outdoor, indoor LED Display Screen, LED Panel in Shenzhen, China with led display exported to more than 100 countries and regions, passed CE,ROHS FC Certifications.
will be the most responsible and reliable partner to the enterprises and designers who are committed to LED Optoelectronics industry.

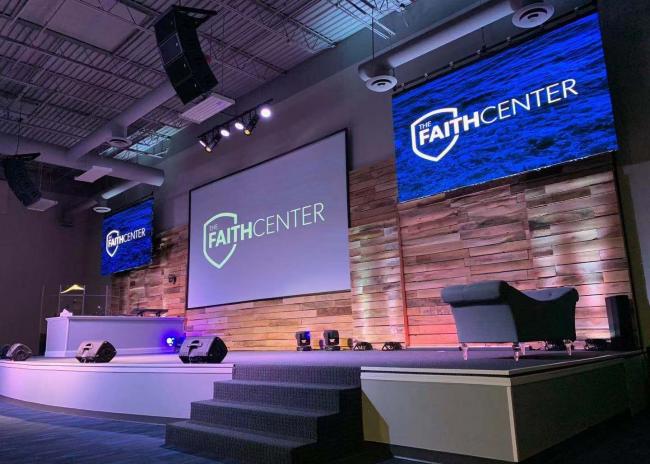

The led Video wall can be used in banks, securities, schools, telecommunications, taxation, power supply, customs, courts, stations, airports, terminals, talent markets, Bar entertainment and other industries
