Rental Outdoor Waterproof Led Screen 5500CD/M2 SMD1921 Die Casting Aluminum
High Bright Rental Outdoor Waterproof Led Screen 3.91mm smd1921
500mmX1000mm Led Cabinet Description:
1. CNC + Die Casting process cabinets
The flatness of led panel surface is greatly improved by its CNC+Die Casting molding process (precision up to 0.05mm), thus it ensures the full screen’s seamless and precise installation.
2. Super Slim
The thickness is 60mm. This saves your installation space and packing size, it ensures the greatly fast movement and installation.
3. Light Weight
The weight of full panel is only 8KG, can be easily hanging up by one person,
saves your time and labor cost.
4. Convenient and Fast Installation
We adapted Plug and play designing for this series, the power and signal connector is quite easy and fast for in&out operation; and the signal connection can be in horizontal and vertical ways, it satisfied the rental application in any cases.
5. New Led Module Size 500mmX125mm.
6. Can make Curved Led Video Wall.
(small pixel pitch P4.81 outdoor led display) Specification :
| Pixel Pitch | 3.91mm |
| Pixel Configuration | SMD1921 |
| Module Resolution | 128*32dots |
| Module Pixles | 2704dots |
| Module Size | 500*125mm |
| LED Cabinet Specification | |
| Cabinet Size(W*H*D) | 500*500*70mm |
| Cabinet Resolution | 128*128dots |
| Module Quanity | 4pcs |
| Cabinet Pixels | 16384dots |
| Material | Die Casting Aluminum |
| Brightness | ≥5500cd/m2 |
| Pixel Density | 65536dots/m2 |
| Driving Method | 1/16 scan constant current |
| View Angle | 140H,120V |
| Optimal Viewing Distance | ≥3 |
| Brightness Control | Red,Green and Blue 4096 Grade/Each |
| Fresh requency | ≥2000Hz |
| Frame Frequency | 60Hz |
| Input Voltage | AC100 - 120V/50Hz |
| AC200 - 240V/50Hz | |
| Defects Rate | ≤0.00001 |
| Power Consumption | Max:160W/Cabinet Average:80W/Cabinet |
| Screen weight | 9kg/Cabinet |
| MTBF | >10,000 hours |
| Life span | ≥100,000 hours |
| Earth Leakage Current | <3mA |
This Outdoor LED screens are perfect for large crowds and big venues: indoor or outdoor, day or night!

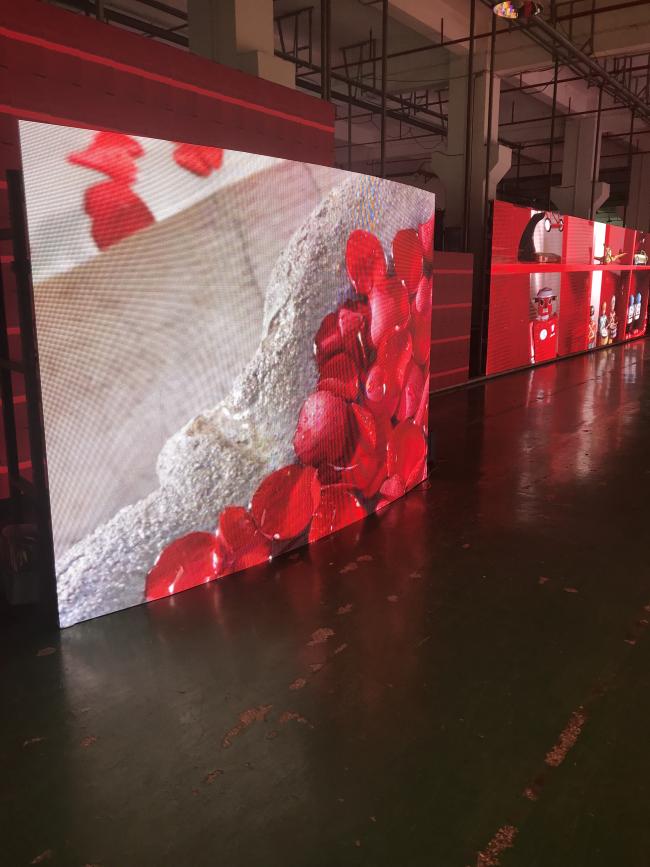

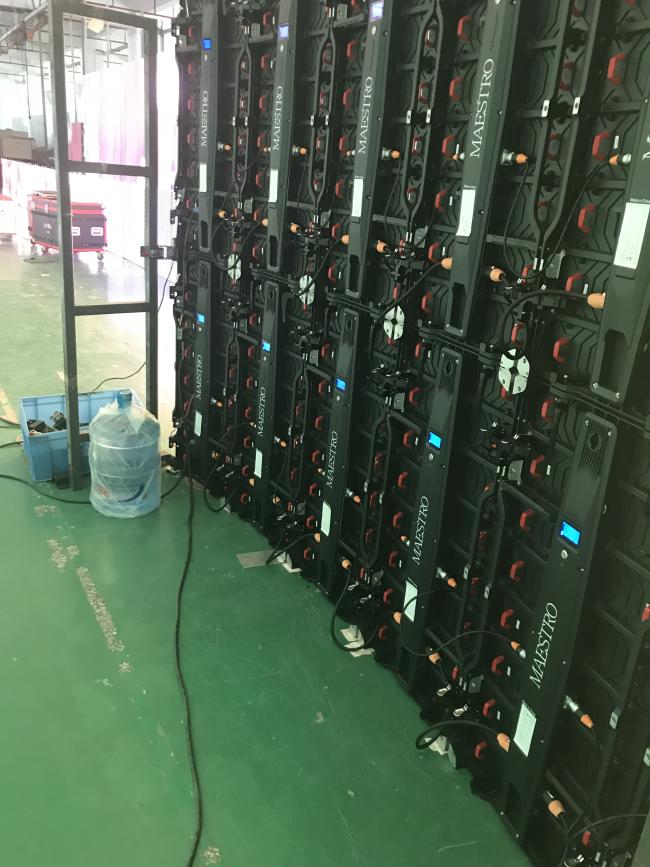

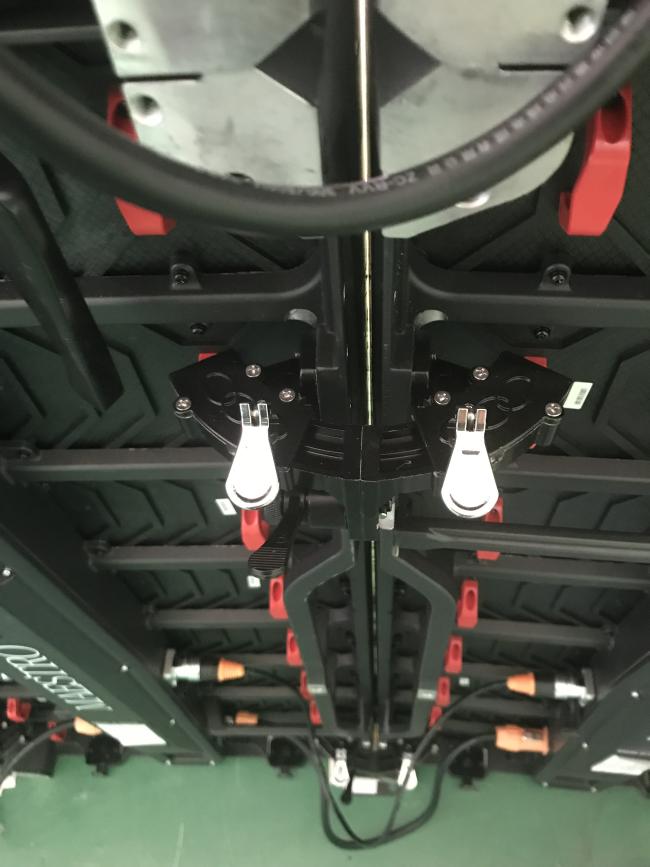

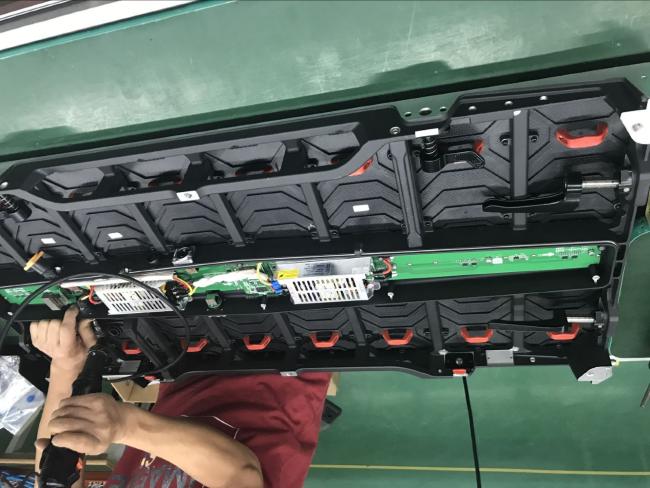

P3.91 Led Cabinet Product Photos:
Applications:
Entertainment venues ,broadcast, auditoriums, stage events, malls, market squares, offices, hotels, restaurants, banquets , sports, entertainment and other special event.
Outdoor stage shows ,big concert, wedding background , media Facade , Video Productions
Eachinled
As a high-tech enterprise integrated with scientific research, design, production, maintenance, sales and system integration, Shenzhen Eachinled Optoelectronics Co.Ltd is specialized in LED display screen. We have a professional high-quality technical R & D team engaged in R & D of high-tech products for years with solid technical strength. We also own many rich experienced engineers and professional product development and design engineers. With advanced production equipment and test instruments and particularly excellent marketing team and channel cooperators, we manage the market expansion and after-sales service in an overall manner.
FAQ
1. Diversified products :
Varieties of models for outdoor/indoor LED display screens,and customized cabinets available,meet all requirements and win more profits for customers.
2. Experienced&Professional:
10 years manufacturing experience on LED displays, professional workmanship & design.
3. Best raw materials:
Taiwan Epistar LED chip,high quality,high brightness and long life span.
4. Competitive price:
100% factory price,competitive and reasonable price.
5. Strict quality control:
100% testing before shipment , make sure our quality before delivery.
6. Quality gurantee:
All our LED display screens is more than 100,000 hours life span.
7. Long warranty:
Two year warranty, any quality problem during warranty time will be handled .
8. Prompt &Professional service :
Any inquires will be replied within 24 hours in working days and you’ll get helpful suggestions from us.
