320mm Seam Roof Roll Forming Machine Effective Width Clip Lock Standing
320mm Effective Width Clip Lock Standing Seam Roof Roll Forming Machine
A concealed fixed roofing sheet that gives a modern, clean line with no unsightly screws. The bold ribs making has a strong visual statement.
Technical Parameter
| Item NO |
Description |
Offered specification |
| 1.0 | Roll forming machine | |
| 1.1 | Rolling speed | 10-12m/min |
| 1.2 | Rolling thickness | 0.3-0.8mm |
| 1.3 | Raw material | Galvanized steel coils or PPGI |
| 1.4 | Main motor | 7.5kw |
| 1.5 | Hydraulic motor | 5.5kw |
| 1.6 | dimension | 7500×700×1000(mm) |
| 1.7 | Roller stations | About 25 stations |
| 1.8 | Roller material | 45#forge steel, coated with chrome |
| 1.9 | Shaft diameter | Φ70mm,material is 45# forge steel |
| 1.10 | Transmission | By chain 1 inch |
| 1.11 | Material of chain | 45# forged steel with frequency quenching, 12A |
| 1.12 | Material of cutting | Cr12Mov with quench HRC58-62° |
| 1.13 | Tolerance | 6m+-0.5mm |
| 1.14 | Frame | H type steel |
| 1.15 | Voltage | 380v, 50hz, 3phases |
Main Components
| No | Name | Type | Quantity |
| 1 | 5 ton hydraulic de-coiler | RF-GT15-360 | 1 set |
| 2 | Main roll forming machine | RF-GT15-360 | 1 set |
| 3 | Control box | RF-GT15-360 | 1 unit |
| 4 | Hydraulic station | RF-GT15-360 | 1 unit |
| 5 | Out tables | RF-GT15-360 | 2 units |
| 6 | Safety cover | RF-GT15-360 | 1 unit |
Glazed tile working flow

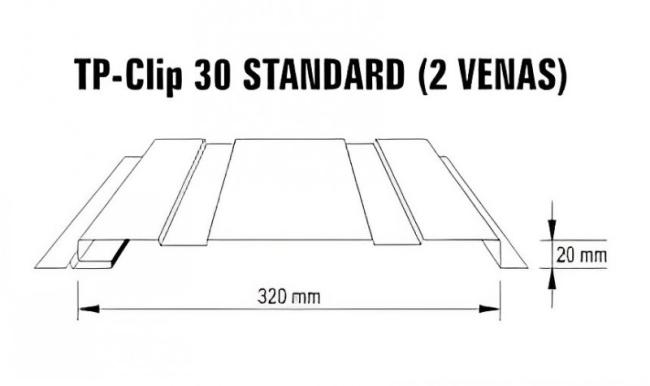

Profile Drawing
Application
1. Reasonable Price
2. High Quality
3. 12 Months Warranty
4. More Than 10 Years Experience
5. Durable
6. Reliable
Our service
1. Professional mechanical background sales for better undestanding customer's need
2. Experienced in China machine industry for supplying comprehensive machines and equipments
3. Strictly product manufacturing and quality controlling to ensure every machine we sold is satisfied with our customer
4. Engineers available to service machine overseas, for example installation, training, etc
5. Lifelong service for spares, ware parts, technical supporting, etc
