Carbon Steel Channel Purlin Roll Forming Machine 2mm - 3.5mm 6 Meters / Minute
5-6 Meters/Minute 2mm-3.5mm Thickness Carbon Steel Frame C U Shaped Channel Purlin Roll Forming Machine
Warehouse shelf upright roll forming machine is widely used in producing upright frame, box beam and step beam. Our intelligent roll forming machine could make wide range of sizes using cantilever type structure, and automatically change by motors from one size to the other not only at width but also at height. The one and only step is to put your required data into our touch screen and wait for few seconds. Machinable thickness is from 1.5-3mm with raw material Cold-rolled Steel, Galvanized Coil, PPGI, Carbon steel, Stainless Steel and Aluminum. Our produced profile meet ISO, CE , FEM standards, and our machine is applied to Warehouse ,supermarket ,industry or home.
Technical Data:
- Suitable Plate Material: thickness 2mm-3.5mm, Carbon steel
- Working Speed: 3-4 meters /minutes
- Forming Steps: about 16 stations
- Material of Roller: Cr12mov, Quench HRC58-62 Plated Chrome
- Material of Shaft: 45# Advanced Steel (Diameter: 90mm), thermal refining
- Driven system: Gearbox drive
- Main Power with reducer: 22 KW WH Chinese Famous
- Power supplier: 380V, 60 Hz, 3Phase
- The whole machine is controlled by industry computer-PLC.
- PLC--Delta, Japan English and Chinese Language
- Touch Screen—Delta
- Encoder--Omron, Japan
- Electric parts--Schneider
Main Components
| S.N | Equipment name | Quantity |
| 1 | 3T manual uncoiler | 1 set |
| 2 | Levelling device | 1 unit |
| 3 | Punching station (including punching mould) | 1 unit |
| 4 | Main roll forming machine | 1 set |
| 5 | Main drive | 1 unit |
| 6 | Cutting unit | 1 set |
| 7 | Hydraulic station | 1 set |
| 8 |
Control system |
1 set |
| 9 | Out put rack | 1 set |
| 10 | Cutting mould | 3 sets |

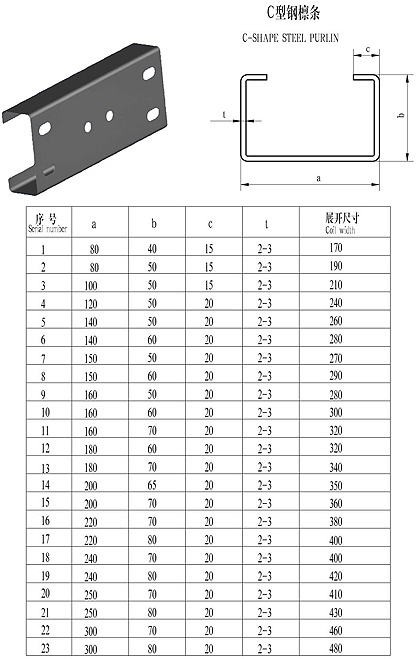

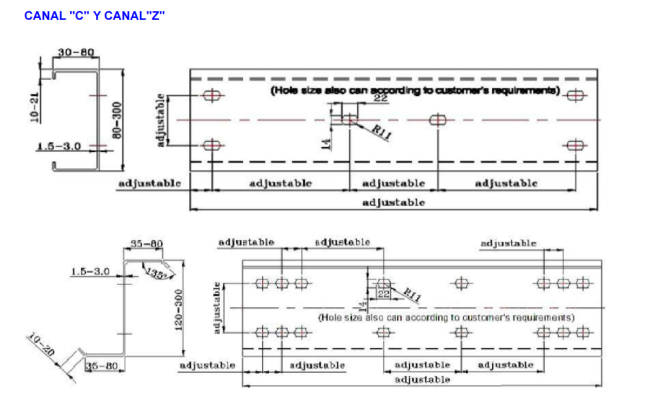

Profile drawing:

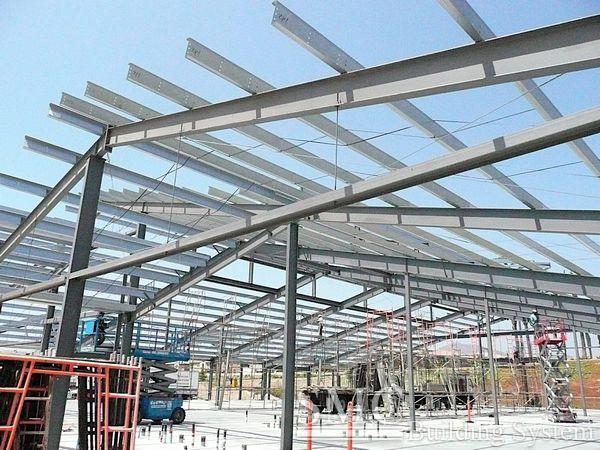

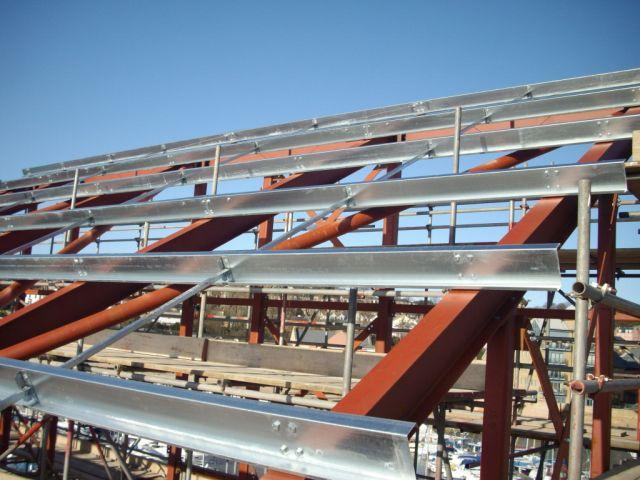

Application
Loading pictures
Main body of machine is naked and covered by plastic film(to protect of dust and corrosion).
Delivery time: 75 days after deposit
Our Service
Guarantee period: 12 months free service.
Installation and training
If buyers visit our factory and check the machine, we will teach you how to install and use the machine and also train your workers/technician face to face.
Without visiting,we will send you user manual and video to teach you to install and operate.
If buyer needs our technician to go to your local factory,please arrange board and lodging and other necessary things.
