0.8mm Roof Wall Panel Roll Forming Machine Color Coated Aluminum Soffit Fascia Flush Liner
0.3mm-0.8mm Thickness Color Coated Aluminum Soffit Fascia Flush Reveal Roof Wall Panel Roll Forming Machine
Reveal panels are designed for wall, fascia and soffit applications where a flush or flat appearance is desired. A rounded interlock leg and concealed fastening system improves the flush appearance while providing additional strength. Panels are factory-formed to length to minimize field cutting. Flush panels are designed to complement roofing panel product line.
Technical parameter:
| Item NO |
Description |
Offered specification |
| 1.0 | Roll forming machine | |
| 1.1 | Rolling speed | 12-15m/min(not include cutting time) |
| 1.2 | Rolling thickness | 0.3mm-0.8m |
| 1.3 | Raw material | Color painted coils, Aluminium, Zinc, Galvanized |
| 1.4 | Main Motor | 7.5KW |
| 1.6 | Dimension | About 8000×1600×1200(mm) |
| 1.7 | Effective width | 1000mm |
| 1.8 | Feeding Coil width | 1219mm |
| 1.9 | Roller stations |
About 18 stations
|
| 1.10 | Roller material | 45#forge steel, coated with chrome |
| 1.11 | Shaft diameter | Φ76mm |
| 1.12 | Transmission | By chain 1.2 inch |
| 1.13 | Material of chain | 45# forged steel with frequency quenching, 12A |
| 1.14 | Material of cutting | Cr12Mov with quench HRC58-62° |
| 1.15 | Tolerance | 10m+-1.5mm |
| 1.16 | Hydraulic station | 4kw |
Machine List:
working flow

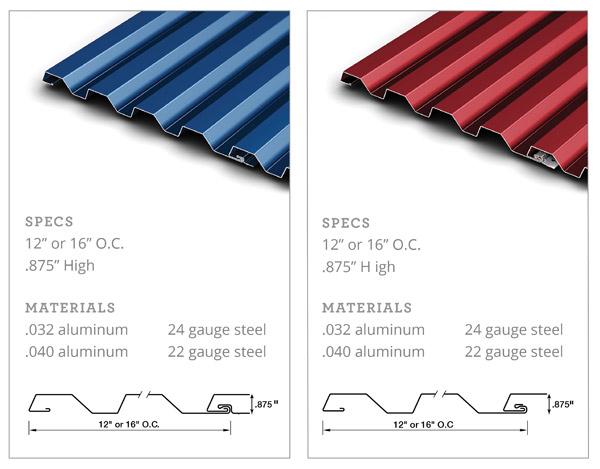

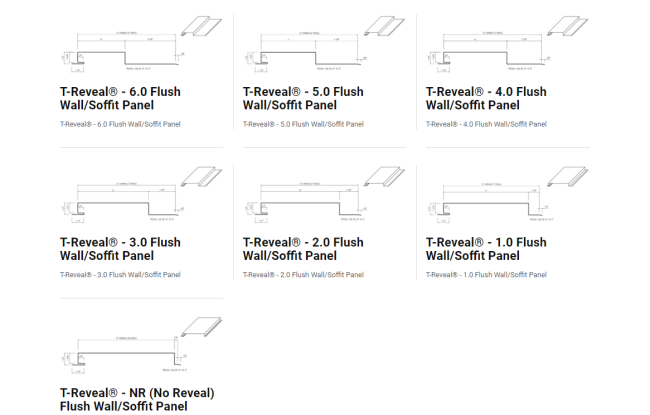

Profile Drawing

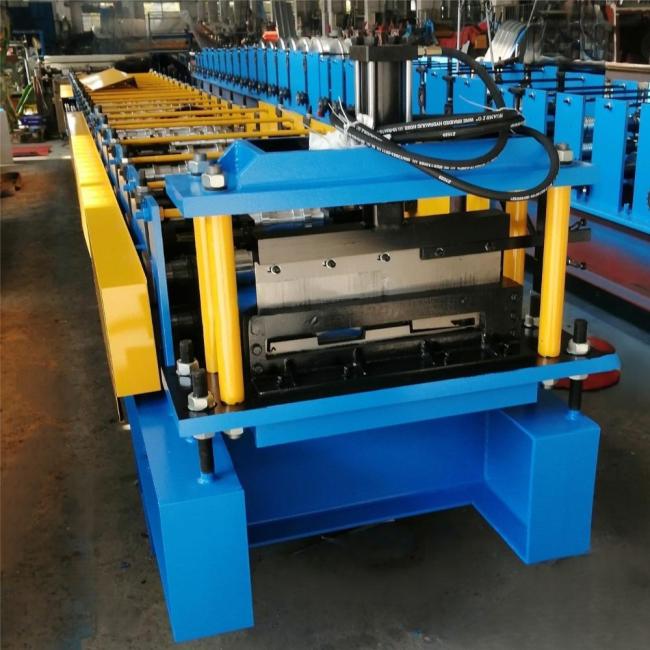

Machine Shows
Application
Reveal is stronger and easier to install than using flat sheets. When using flats sheets on a job it is a design build application. Western Reveal has an install guide that has solutions for all of your common jobsite conditions.
