Customized Adjustable High Strength Zinc Coated Steel 2.0mm-3.0mm C Purlin Roll Forming Machine
Price:
Discussed
MOQ:
1 Set
Delivery Time:
60 days
Brand:
sussman machinery
Product Description
C Purlin Machine Description:
Process Flow of C Purlin Roll Forming Machine
Uncoiler --- Feeding --- Straightening --- Pre-punching --- Pre-cutting --- Roll Forming --- Exit Rack
Uncoiler --- Feeding --- Straightening --- Roll Forming --- Post Punching --- Post Cutting --- Exit Rack
Technical Parameters:
| Parameter | Description |
|---|---|
| Material thickness | 2.0-3.0mm |
| Width | 100-300mm adjustable automatically |
| Roller Material | 45# Steel |
| Control System | PLC Control System |
| Weight | About 10T |
| Cutting Type | Hydraulic Cutting |
| Forming Speed | 8-12m/min |
| Color | Customized |
| Length Measurement | Encoder Measurement |
| Material | Galvanized Steel |
| Total Power | About 18.5KW |
| Machine Type | CZ Purlin Making Machine, CZ Purlin Rolling Machine, Cee Zee Purlin Machine |
Machine Configurations of C Purlin Roll Forming Machine
| 1. Hydraulic Uncoiler | 2. Feeding Device |
| 3. Straightening | 4. Roll Forming Machine |
| 5. Hydraulic Punching | 6. HydraulicCutting |
| 7. PLC Control System | 8. Out put table |
| Model | C Section Size (mm) | Hole Distance | Remark | ||||
| H | B | B | C | t | h | ||
| C100 | 100 | 40 | 40 | 15 | 2.0.3.0 | No Punching | We Can Design the Machine According to Customer's Requests (with Middle Hole Punching). |
| C120 | 120 | 50 | 50 | 20 | 2.0-3.0 | 40 | |
| C140 | 140 | 50 | 50 | 20 | 2.0-3.0 | Adjustable Hole Distance | |
| C160 | 160 | 60 | 60 | 20 | 2.0-3.0 | ||
| C180 | 180 | 60 | 60 | 20 | 2.0-3.0 | ||
| C200 | 200 | 60 | 60 | 20 | 2.0-3.0 | ||
| C220 | 220 | 70 | 70 | 20 | 2.0-3.0 | ||
| C250 | 250 | 70 | 70 | 20 | 2.0-3.0 | ||
| C300 | 300 | 80 | 80 | 20 | 2.0-3.0 | ||
Applications:
The finished products are widely used as the supporter of roof and wall in large-scale and mid-scale construction, such as factory, industrial buildings, balcony, and garages, warehouse, garage, exhibition center, cinema, theatre, garden and so on.
Support and Services:
Technical Support and Service for C Purlin Roll Forming Machine We offer comprehensive technical support and service to our customers for C Purlin Roll Forming Machine. Our team of experienced engineers and technicians ensure that you receive the best possible service for your C Purlin Roll Forming Machine. Our technical support and service includes:- Installation and setup of the C Purlin Roll Forming Machine
- Periodic maintenance and service
- Troubleshooting of the C Purlin Roll Forming Machine
- Training of your personnel
- Advice on the best use of the C Purlin Roll Forming Machine for your production

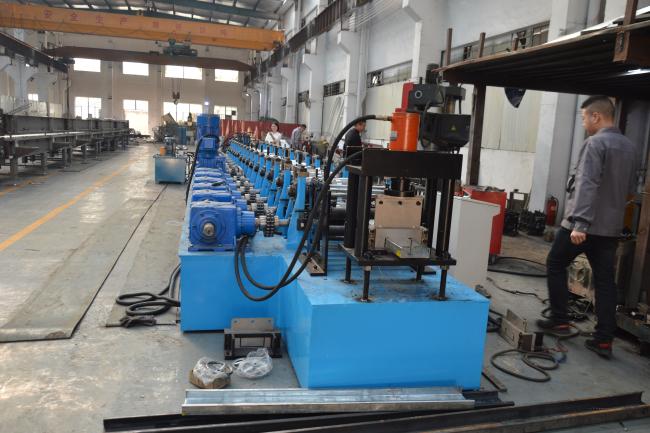

Machine photo
