0.3-0.8mm Thickness 5v Metal Roof Sheet Roll Forming Machine With Electrical Cutting

Price Negotiable

Price: negotiable

MOQ: 1 set

Delivery Time: 75 days after deposit

Brand: Sussman

Product Description

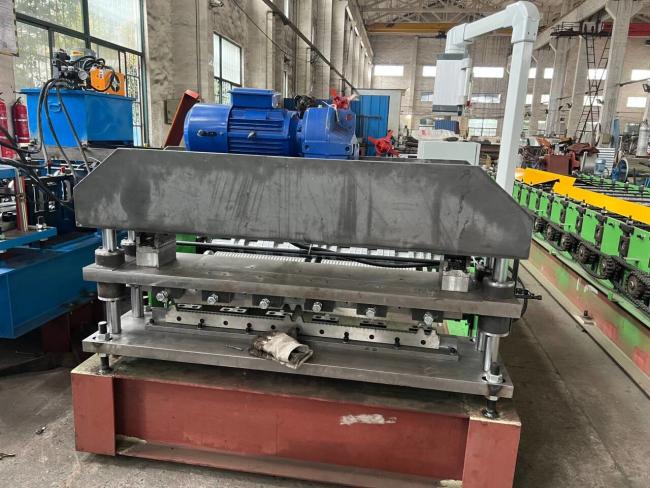

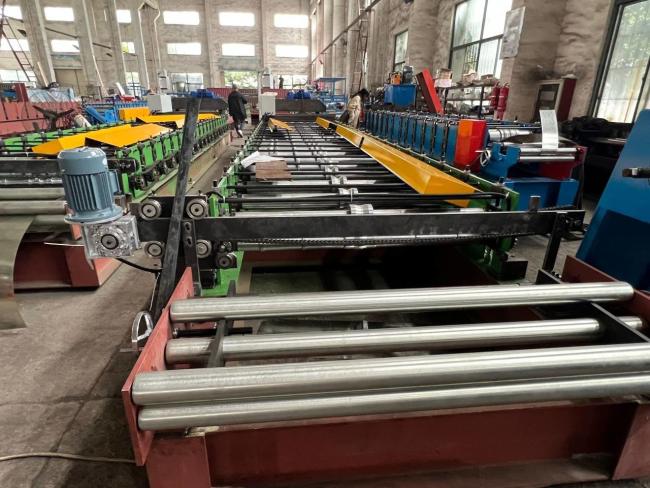

0.3-0.8mm Thickness 5V Metal Roof Sheet Roll Forming Machine with Electrical Cutting

Roofing system roll forming machine has a big range of metal sheet profiles. It includes trapezoidal panel, PV-4, PV-5, corrugated panel, roof tile panel, step glazed tile, metal deck panel, standing seam panel, ridge cap, rain gutter, double layer/ two layer, K span panel and ridge cap machine. Its products are widely used in roof and wall system in workshop construction and housing construction.

The normal machinable thickness range of our roof panel roll forming machine is 0.3mm-0.8mm, working raw material is Aluminum, PPGI, Galvanized steel, Galvalume steel etc. We design the machine according to your drawing, specially the pitch and height of each wave. This machine is used to form the pre-painted sheet/GI material to various roofing of the projects such as sports center, exhibition center, subway project, airport and stadium etc.

Different countries has different its own commonly used profiles and name. Here are some popular drawing profiles selected by our customers:
The Berridge Double-Rib Panel is an exposed fastener panel for use over solid sheathing. The panel covers 24″ with a double-rib seam overlap. This wide, economical panel provides a traditional appearance and is ideal for residential or utility applications over solid sheathing.


Technical parameter:

Item NO	Description	Offered specification
1.0	Roll forming machine
1.1	Rolling speed	about 12-15m/min(not include cutting time)
1.2	Rolling thickness	0.3mm-0.8m
1.3	Raw material	Color painted coils, Aluminium, Zinc, Galvanized
1.4	Main Motor	7.5KW
1.6	Dimension	About 8000×1600×1200(mm)
1.9	Roller stations	About 16-118 stations
1.10	Roller material	45#forge steel, coated with chrome
1.11	Shaft diameter	Φ76mm
1.12	Transmission	By chain 1.2 inch
1.13	Material of chain	45# forged steel with frequency quenching, 12A
1.14	Material of cutting	Cr12Mov with quench HRC58-62°
1.15	Tolerance	10m+-1.5mm
1.16	Hydraulic station	4kw
