1-3mm thickness Custom CZ Purlin Roll Forming Machine , Steel Section Profile Roll Forming Equipment
1-3mm thickness Custom CZ Purlin Roll Forming Machine , Steel Section Profile Roll Forming Equipment
CZ Purrin Production Line Main Components
| Machine list | 3 ton passive de-coiler | 1 set |
| Feeding with guide | 1 set | |
| Main roll forming machine | 1 set | |
| PLC Control box | 1 unit | |
| Hydraulic station | 1 unit | |
| Stop cutting device | 1 unit | |
| Safety cover | 1 unit | |
| Out table | 2 units |
CZ purlin Making Machine Technical Parameter
| Items | Specifications |
Material of coil | Material Thickness | 1-3 mm galvanized Steel |
De-coiler | Weight | 3 ton manual |
Forming system | Rolling Speed | 15 m/min |
Roller Stations | 16 stations forming | |
Roller Material | Gcr15 Steel with quenching | |
Shaft Material | 45# Steel Diameter 75mm shaft | |
Maim Motor Power | 7.5 kw | |
Hydraulic cutting Power | 4 kw | |
Cutting | Material Of Cutting | CR12 with quench treatment |
Hardness | HRC58-62 | |
Tolerance | +-1.5mm | |
Cutting blade | 1 set of cutting blade | |
Electrical control system | Electric Source | 220V, 60HZ,3 phase |
Control System | PLC with touch screen Japanese Panasonic and Yaskawa Brand | |
| Weight | About 5 tons |
| Way Of Drive | 1.2inch single chain |
| Size of machine | Length 6500mm* Width 600mm* Height 500m |
Working Flow of Roll Forming Machine
feedingwithguide—Rollforming——Cutting—Products collecting
Standard Profile Drawing of product

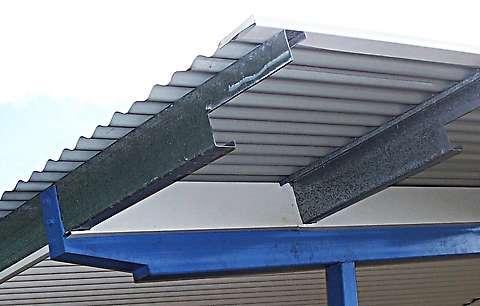

Product Gallery

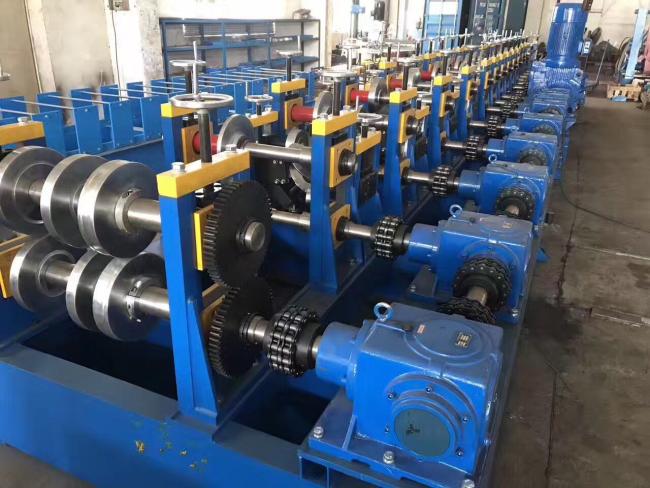

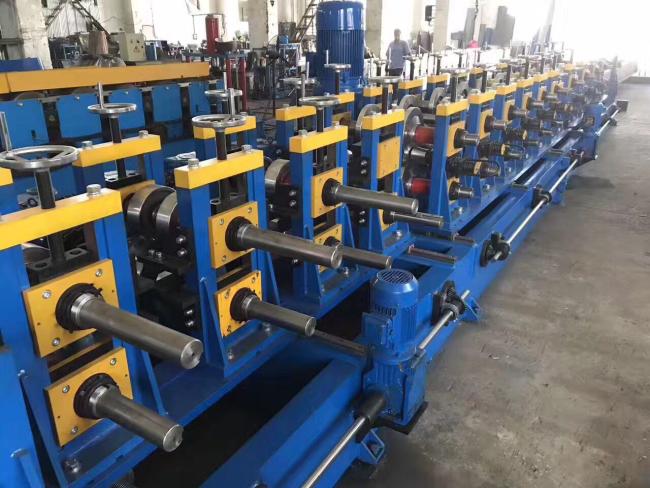

Machine pictures

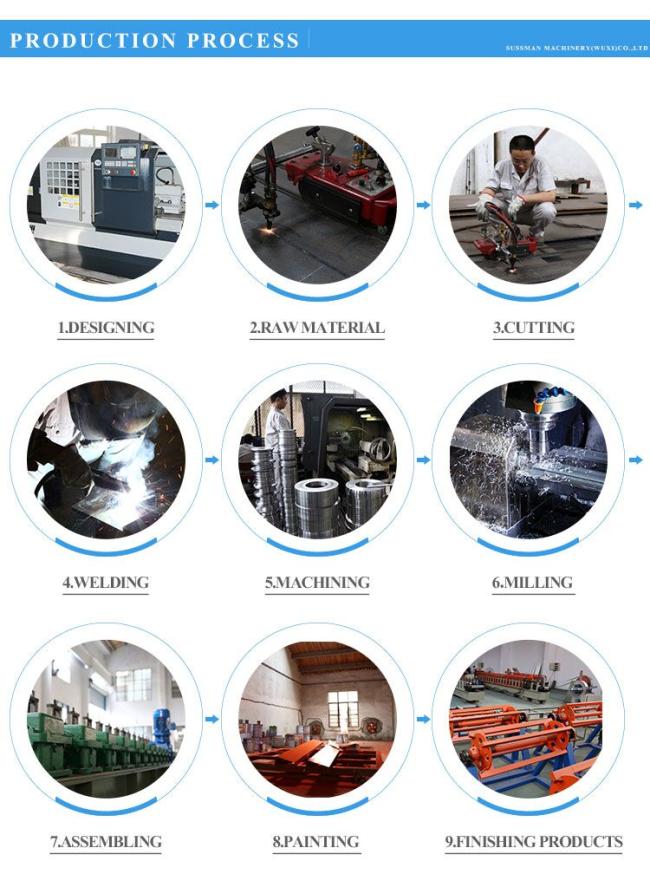

Production process
