Automatic Roller Shutter Door Roll Forming Machine 40 60 70mm Steel Octagon Shaft Pipe
Automatic Roller Shutter Door Roll Forming Machine 40 60 70mm Steel Octagon Shaft Pipe
This type of machine has advantage inclouding beautiful, classical appearance and grace taste.
It can be widely used in village, hotel, exhibition, vocation vallage, family construction and outdoor decorate.
Octagon Shaft Pipe Machine Technical Data
|
No. |
main parameter of gutter roll forming machine |
|
|
1 |
Suitable to process |
Color steel plate |
|
2 |
Width of the plate |
200-600mm |
|
3 |
Rollers |
18-20 rows |
|
4 |
Dimensions |
6500*800*1200mm |
|
5 |
Power |
7.5+3kw |
|
6 |
Thickness of the plate |
0.5-1.2mm |
|
7 |
Productivity |
8-12m/min |
|
8 |
Diameter of the roller |
52mm |
|
9 |
Weight |
About 4.5 T |
|
10 |
Voltage |
380V 50Hz 3phases |
|
11 |
Rolling material |
Carbon Steel 45# |
|
12 |
Material of the cutting plate |
Cr12 |
|
13 |
Processing precision |
Within 1.00mm |
Octagon Shaft Pipe Production Line Machine List
|
Serial No. |
Commodity & Description |
Quantity |
|
1 |
3T manual uncoiler |
1 set |
|
2 |
feeding guiding |
1 set |
|
3 |
Main roll forming machine |
1 set |
|
4 |
Output table |
1 set |
|
5 |
Main drive gear box |
1 set |
|
6 |
Fly saw cutting |
1 set |
|
7 |
Controlling system (including cabinet) |
1 set |
|
8 |
Water cooling system |
1 set |
|
9 |
Cassette |
2 sets |

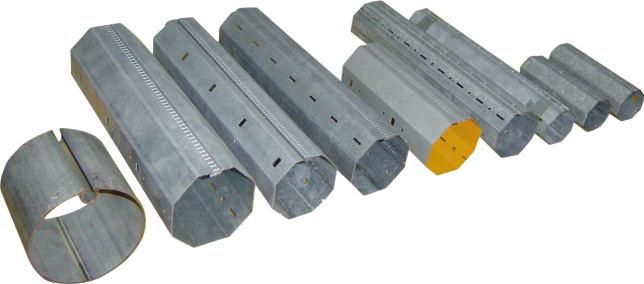

Standard Profile :
Working Flow of Octagon Pipe Roll Forming Machine
Uncoiling – feed Guiding–Roll forming ––fly saw cutting – Run-out table

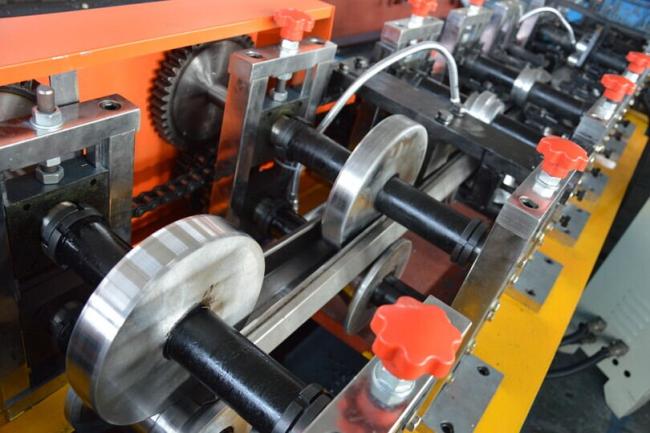

Photo Gallery
Advantages
1.High Quality
2.Reliable
3.Durable
4.Reasonable Price
5.Good after Service
6.1 Year Warranty
7.More Than 10 Years Experience
Terms
Payment
30% T/T in advance, balance should be paid before shipping
Packaging
standard seaworthy packing
Delivery
within 75 days
Guarantee
12 months free service/ pay service all the machine life
Installation and training
If buyers visit our factory and check the machine,
we will teach you how to install and use the machine,
and also train your workers/technician face to face.
Without visiting,we will send you user manual and video
to teach you to install and operate.
If buyer needs our technician to go to your local factory,
please arrange board and lodging and other necessary things.
