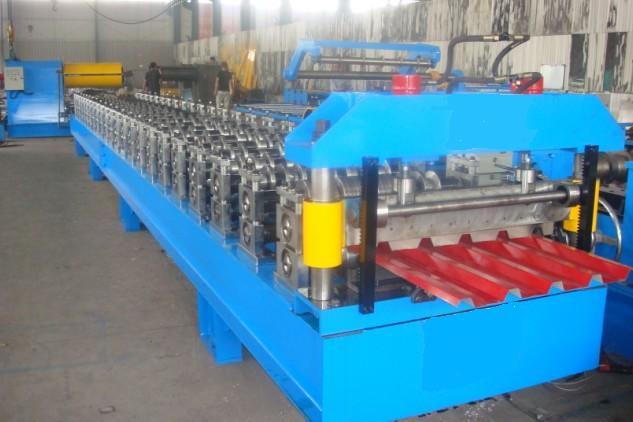

Forming Speed 15m/Min Steel Roof Panel Roll Forming Machinery With 7.5KW



Technical Parameter

1.   Steel Sheet Thickness: 0.3-0.8mm (depend on requirement )
2.   Transmission way: single chain
3.   Transmission material: 45# steel, high frequency quenching
4.   Material of blad: Cr12, quenching treatment
5.   Capacity of Decoiler: 3 ton passive decoiler
6.   Forming Speed: 12-15m/min

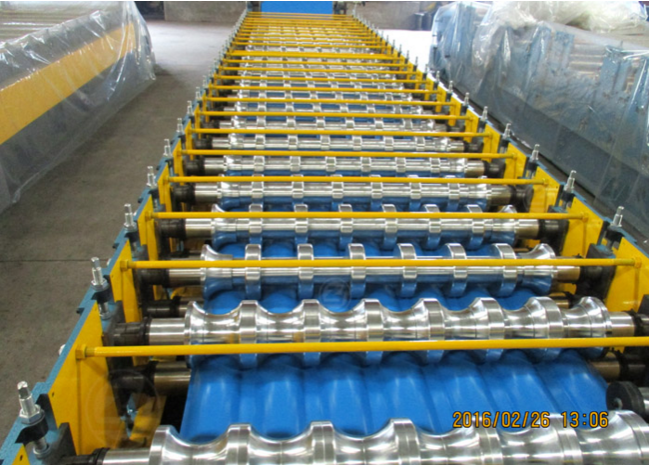

7.   Roller Groups: 16 stations upper and 16 stations down
8.   Roller Material: 45# steel, high frequency quenching treatment, HRC58-62
9.   Feeding material: galvanized steel or color-coated coil
10. Principal Axis: 45# high grade steel with quenching treatment
11. Main motor power: 7.5 Kw
12. Hydraulic power: 5.5Kw

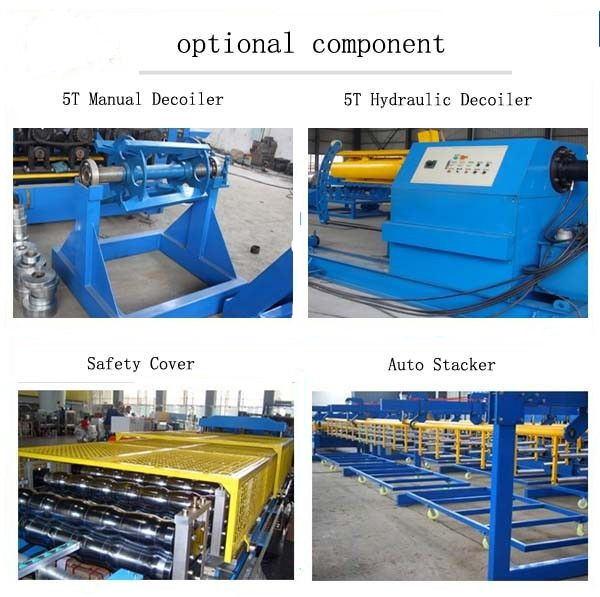

Main Components





Working Flow

Decoiler----Feeding---Roll forming---Cutting---Run out tables







Application

This type of roll forming machine has advantage inclouding beautiful, classical appearance and grace taste.
It can be widely used in village, hotel, exhibition, vocation vallage, family construction and outdoor decorate.



Loading Pics
1). Tighten to container with steel wire rope and welded machine with container by angel iron
2). Main forming machine and un-coiler is naked(If you need we can also packed with water-proof plastic)

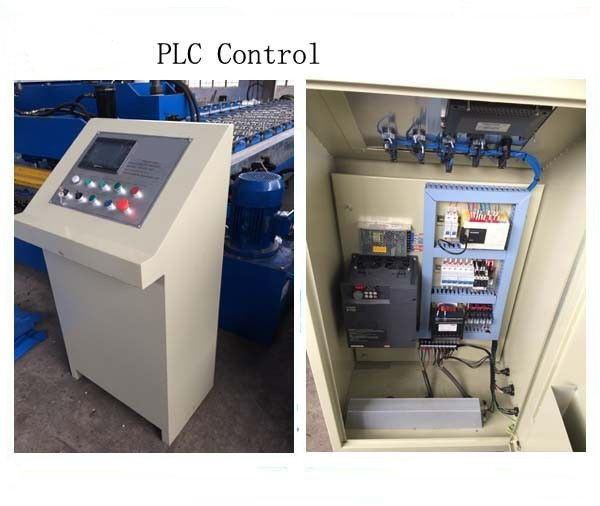

3). PLC contral system and motor pump are packed in wooden box with water proof paper coverage
