Thickness 0.3 - 0.6mm Downspout Pipe Roll Forming Machine Yield Strength G250Mpa
Downspout pipe roll forming machine
1.Technical Parameter
- Machine specification: forming thickness(0.5-0.6mm)xL, yield strength≤G250Mpa
-
- Forming speed: 12-15M/min (EXCLUDING CUTTING STOP TIME)
- Forming roller: about 20 groups
- Main motor power: 7.5KW
- Hydraulic station power:4KW
- Roller material: 45# forged steel, surface coated with chrome
- Main shaft material: 45# steel
- Main axis dia.: ￠68mm
- Hydraulic cutting pressure: 10-12Mpa
- Cutting method: hydraulic powered, cutting after roll forming.
- Cutting blade material: Cr12 quenching treatment
- Electrical controlling system: Whole line adopted PLC control, cut to length tolerance≤2mm
2.Main Components
| Machine List | 3 tons manual de-coiler | 1 set |
| Infeed guiding | 1 set | |
| Main roll forming machine | 1 set | |
| Straighten device | 1 set | |
| Hydraulic cutting equipment | 1 set | |
| Output table | 2 sets | |
| Main drive | 1 set | |
| Hydraulic system | 1 set | |
| Controlling system (including cabinet) | 1 set | |
| Downpipe elbow forming machine | 1 set | |
| seaming machine | 1 set |

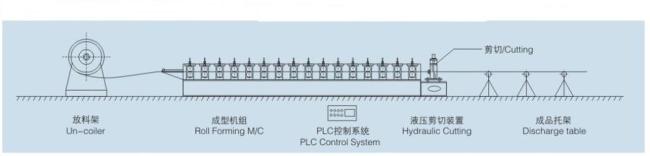

3.Working Flow of Roll Forming Machine
A. Passive Decoiler..........................................................To load and uncoiling material
(We also have Electric Decoiler and Hydraulic Decoiler to hold the heavy material.)
B. Servo Feeding Applicator............................................To feed the material accurately
C. Hydraulic/Press Punching...........................................To punch as requirements
D. Roll Forming Unit.........................................................To roll form as requirements
E. Hydraulic Cutting.........................................................To cut sheets as desired length
(We also have non-stop hydraulic cutting system.)
F. Output Table................................................................Support the finished products
4. Advantage for Roll Forming Machine
During the warranty period, maintain and change the spare parts for the customers for free (except for the instrument damage caused by human factors or natural disasters. ) And provide technical support for life-long.
We can design and manufacture the machine according to clients' request! Our machines have passed CE, Guaranteed quality. Please send us the enquiry with Profile Drawing.
5. Photo Gallery

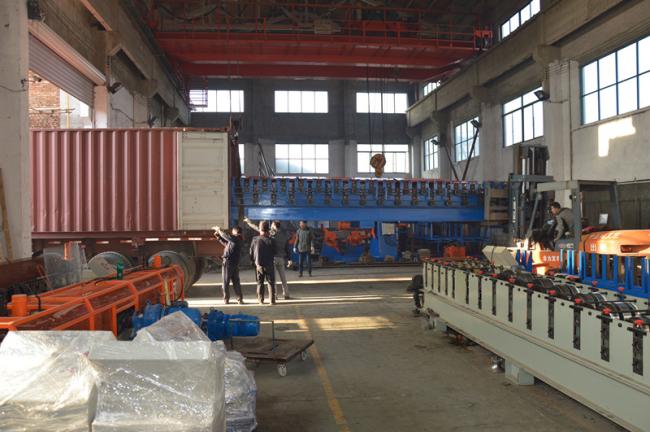

6. Loading picture
After-sale Serive
- The seller take responsibility to installation and commissioning of the equipment and free training. After machine arrive the destination, by the request of the buyer , the seller will provide 1 technical engineer to guide installation and training , and the buyer should give the technical person with full cooperated.
- Installation period: about 5 days after the complete preparation by the buyer such as the foundation and all necessary accessories.
- Training time: 5 days.
- Before departure of the engineers from seller, the buyer should pay for installation and commissioning fee 100$/day to the point account of the seller. The two-way ticket,visa, food, hotel , the translator and insurance are all should provide by buyer with full responsibility.
-The seller supply technical data (including forming mould drawing, electrical elements drawing and equipment drawing etc.)
