1.5 - 2mm Steel Door Frame Making Machine 5000kg 11.0Kw Cold Roll Forming Equipment
220mmWidth Profile Width Roll Forming Machinery For Door Frame 2mm Thickness Galvanized Steel
Machine Componnets
| Name | Quantity |
| Decoiler | 1 set |
| Level device | 1 set |
| Main forming machine | 1 set |
| Hydraulic punching | 1 set |
| Hydraulic cutting machine | 1 set |
| Cutting blades | 5 sets |
| Straightening | 1 set |
| PLC Control Panel | 1 set |
| Run out table | 2 sets |

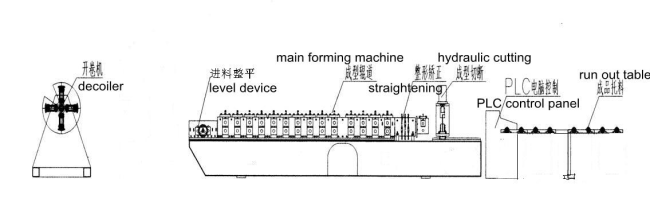

Working Flow
De-coiler—→level device—→main forming machine—→straightening—→hydraulic Punching —→hydraulic cutting—→ run out table

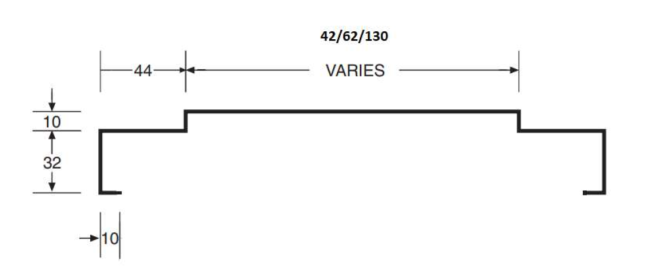

Profile drawing
Parameters
1.Materials to form door frame: According to the customers’ requirement1.5-2.0mm steel
2,Work speed: 3-10m/min
3,Forming steps: About 18 steps
4,Material of rollers: GCr15 steel, precision-machined, high frequency quenching HRC58-62,
5,Material of main shaft : 45# high quality steel
6,Chains’ material: 45# steel, high frequency quenching, circular pitch: 38.1; number of teeth: 13
7,Main motor power: 7.5KW
8,Cutting : Hydraulic cutting, 4kw; quenching HRC58-62, with 3 cut dies ( you must change the bushing blocks when you want to manufacture another door frame.
9,Electronic control: PLC control
10,Dimension of main machine: About 8000mmX800mmX800mm
11,Weight: About 5T
12,Drive system: Chain drive
13,total power: 10.5kw

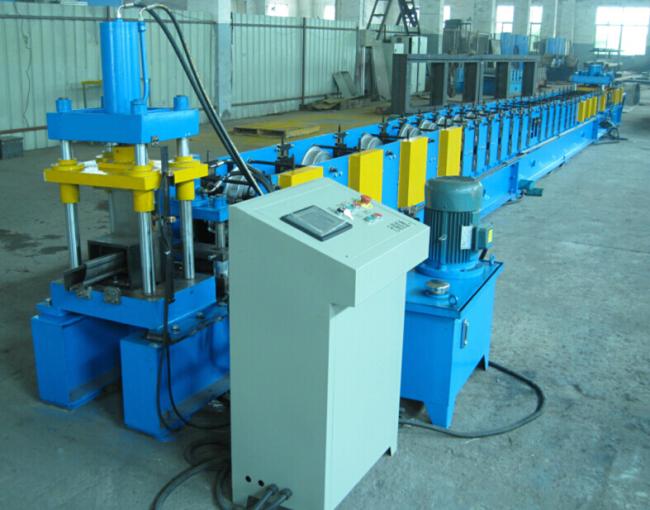

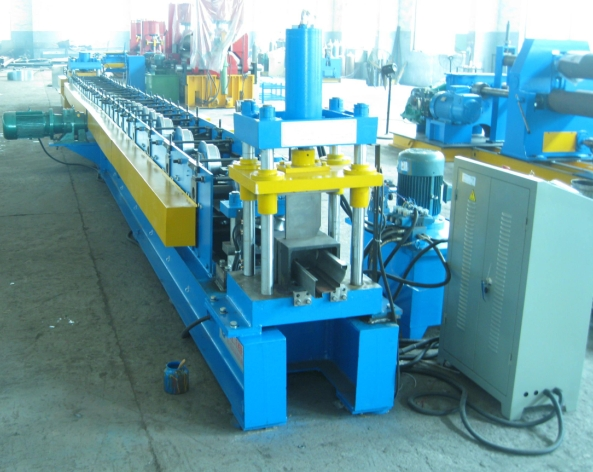

Machine pictures
