Light Gauge Steel Frame CZ Purlin Roll Forming Machine Cee Zee Roof Purlin Roll Former
Metal Building Steel Frame Roll Forming Machine C Section Purlin Forming Machine
Specification
1. European quality, work smoothly
2. Low loss, easy operate
3. High Efficency
C Purlin Technical Parameter
- Products specification: C80-300. thickness: 1.5-3.0mm. Yield strength: 250Mpa max.
- Running speed: 0-12m/min.
- Main shaft material: 45# steel, Q&T treatment
- Main axis diameter: ￠75mm
- Roller material: GCr15 bearing steel, Qunching heat treatment, surface black finish. Rigidity:HRC58-62.
- Roller groups: 15 groups main rollers
- Levelling roller: 7 rollers levelling device
- Main motor power: 11KW;
- Hydraulic station motor power: 5.5KW
- Punching station: 2 punch device
- Electrical control system: Whole line adopted PLC control, Panasonic PLC.
- Cutting method: Hydraulic powered, automatically cut to length after roll forming
- Cutting mold material: Cr12 quenching treatment
- Uncoiling: by 3T Manual uncoiler
- Machine dimension: 8m L X 0.88 m W X 1.0 m H
- Machine weight: about 8 tons.
Main Components
| Equipment name | Quantity |
| 3T manual uncoiler | 1 set |
| Levelling device | 1 unit |
| Punching station (including punching mould) | 1 unit |
| Main roll forming machine | 1 set |
| Main drive | 1 unit |
| Cutting unit | 1 set |
| Hydraulic station | 1 set |
|
Control system |
1 set |
| Out put rack | 1 set |
| Cutting mould | 3 sets |
Working Flow
De-coiler-----leveling-----feeding-----roll forming-----punching-----hydraulic cutting-----production support table

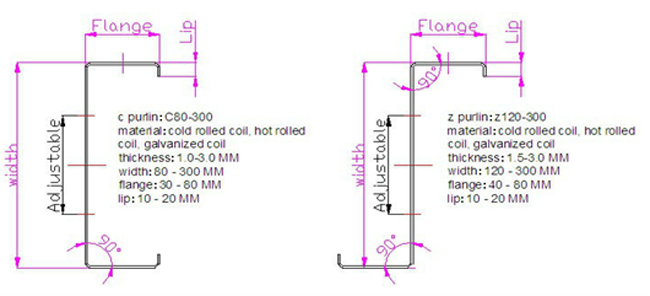

Profile and Drawing Of Product
Application
The purlins produced by Purlin Roll Forming Machine are widely used in the main body stress structure of the large and medium-size construction, such as the plant, the warehouse, locomotive shed, hangar, exhibition building. it is known as economic and high efficient building material.
Loading pictures
Packaging Details: sea worth packing
Delivery Detail: within 45 days
