Siemens Motor Hot Selling Vineyard Post Roll Forming Machine 200mm Feeding Width
Siemens Motor Hot Selling Vineyard Post Roll Forming Machine 200mm Feeding Width
Main Roll forming machine technique data
Suitable Plate Material: thickness 1.5-2mm, Galvanized steel or blank steel
Working Speed: about 20meters / min
Forming machine: about 16 stations
Material of Roller: Gcr15, Quench HRC58-62 Plated Chrome
Material of Shaft: 45# Advanced Steel (Diameter: 75mm), thermal refining
Drive system: Gear box
Main Power with reducer: 11KW WH Chinese Famous
Cutting: Hydraulic Cutting Cr12mov
Material of Cutting Knife: Cr12Mov, Quench HRC58-62
Hydraulic Station Power: 4KW Wuxi Wanshen Famous Chinese Brand
The whole machine is controlled by industry computer-PLC.
PLC--Panasonic, English and Chinese Language
Spare parts
| Name | Number | |
| Tools | Feeler gauge | 1 |
| Size spanner | 1 | |
| Inner hexagon spanner | 1 | |
| Clamp | 1 | |
| Standard spanner | 1 | |
| Shifting spanner | 1 | |
| Slotted screwdriver | 1 | |
| Other accessories | Chain | 6 pieces |
| Bearing (Haerbin) | 10 pieces | |
| Encoder( Omron) | 1 piece |
Working Flow of Roll Forming Machine
Decoiler----feedingwithguide---Punching----Rollforming----Cutting----Products collecting
Profile of product

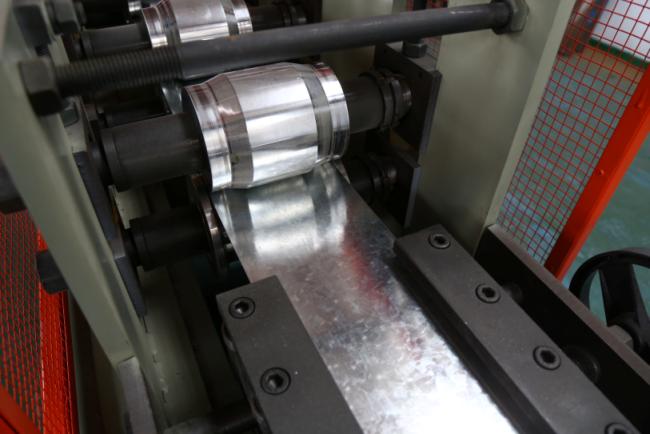

Machine pictures
