13 Stations Roof Batten Steel Roll Forming Machine For Light Steel Trusses
13 Stations Roof Batten Roll Forming Machine For Light Steel Trusses
Technical Parameter
| Item NO | | |
| 1.0 | Roll forming machine | |
| 1.1 | Rolling speed | 10-12m/min(not include cutting time) |
| 1.2 | Rolling thickness | 3mm |
| 1.3 | Raw material | Galvanized steel sheet |
| 1.6 | dimension | 5500×600×1200(mm) |
| 1.7 | Effective width | 91mm |
| 1.8 | Roller stations | 13 stations |
| 1.9 | Roller material | 45#forge steel, coated with chrome |
| 1.10 | Shaft diameter | Φ60mm ,material is 45# forge steel |
| 1.11 | Transmission | By chain 1.5 inch |
| 1.12 | Material of chain | 45# forged steel with frequency quenching, 12A |
| 1.14 | Material of cutting | Cr12Mov with quench HRC58-62° |
| 1.15 | Tolerance | 10m+-1.5mm |
| 1.16 | Frame | H type steel |
Technological process
Decoiling - Feeding with guide - Roll forming - Cutting - Products Output

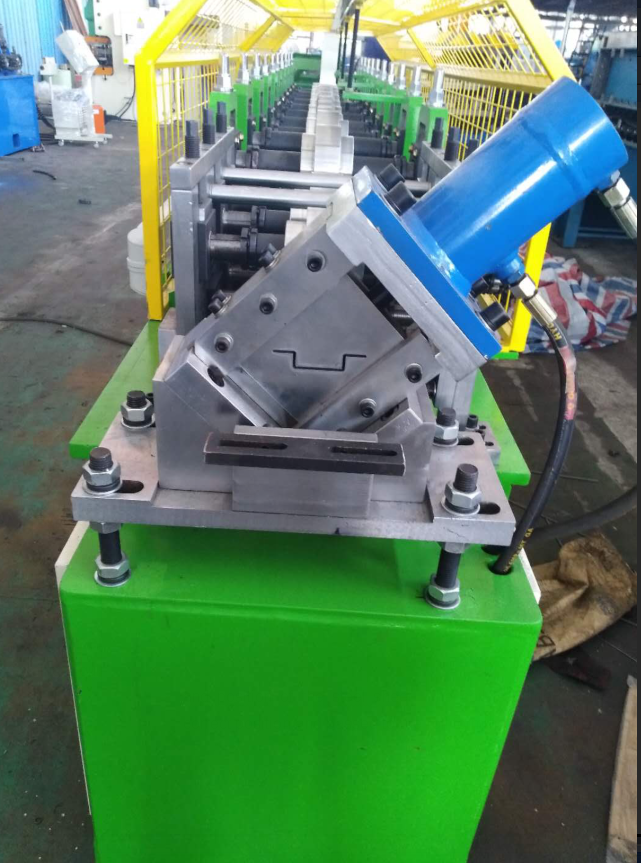

Machine profile
Features and Components of the machine
--Simple structure & beautiful appearance, we adopt the shape-steel structure and process as a whole after welding. It has the ability of strong loading and stable operation when running the machine.
--Main parts of machine are famous brand, to ensure the machine normal function very effectively.
-- Length of panel forming and cutting adopts automatically to guarantee the length to be precise and the finished product clear without deforming.
-- Install the equipment and suitable for producing in the factory easily
-- Low noise and high efficiency.
