0.4mm12m/Min Metal Steel Roofing Sheet Making Machine 16 Roller Station
7.5KW Hydraulic Station Power 16 Stations Glazed Tile Roll Forming Machine
Glazed tile Technical Parameter
| Technical Parameter | |
| Main Motor Power | 7.5kw |
| Sheet Thickness | 0.4-0.7mm |
| Sheet Width | 1000mm |
| Roller Stations | 16 stations |
| Way Of Drive | 1.2 inch single chain |
| Roller Material | 5# forge steel, coated with chrome |
| Shaft Material and DIA | ￠76mm, material is 45# forge steel |
| Hydraulic Station Power | 5.5kw |
| Size of the press parts | 2000*1800*1500mm |
Glazed tile Main Components
|
S.N |
Equipment name |
Quantity |
|
1. |
Feeding and leveling device |
1 set |
|
2. |
Main roll forming machine |
1 set |
|
3. |
5 tons passive decoiler |
1 set |
|
4. |
Hydraulic station |
1 set |
|
5. |
Control system (including control box) |
1 set |
|
6. |
Spare parts |
1 package |
Glazed tile working flow
Profile Drawing

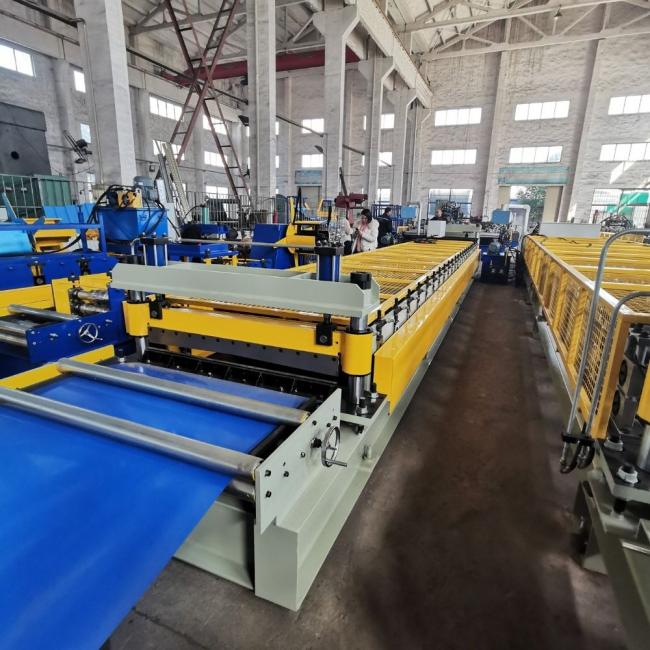

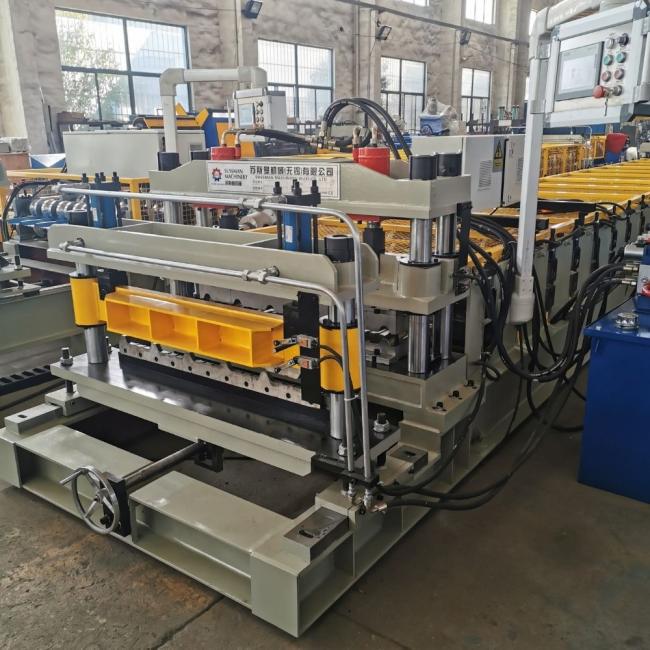

Machine Pictures
Application
The finished products are widely used in garden-like factories, tourist scenic spots, pavilions and pavilions, hotel villas, exhibition halls, resorts, resorts and so on. It has many advantages, such as beautiful scenery, Home and other architectural and outdoor decoration.
