3 Tons Decoiler 0.4mm Color Steel Aluminum Long Grid Standing Seam Roofing Machine
3 Tons Decoiler 0.4-0.8 mm Color Steel Aluminum Long Grid Wall Panel Roll Forming Machine For Decoration
Technical Parameter
| Item NO |
Description |
Offered specification |
| 1.0 | Roll forming machine | |
| 1.1 | Rolling speed | About 0-15m/min |
| 1.2 | Rolling thickness | 0.4-0.8mm |
| 1.3 | Raw material | Galvanized steel coils or PPGI or Aluminum |
| 1.4 | Main motor | 7.5kw |
| 1.5 | Hydraulic motor | 5.5kw |
| 1.6 | dimension | 9500×800×1000mm |

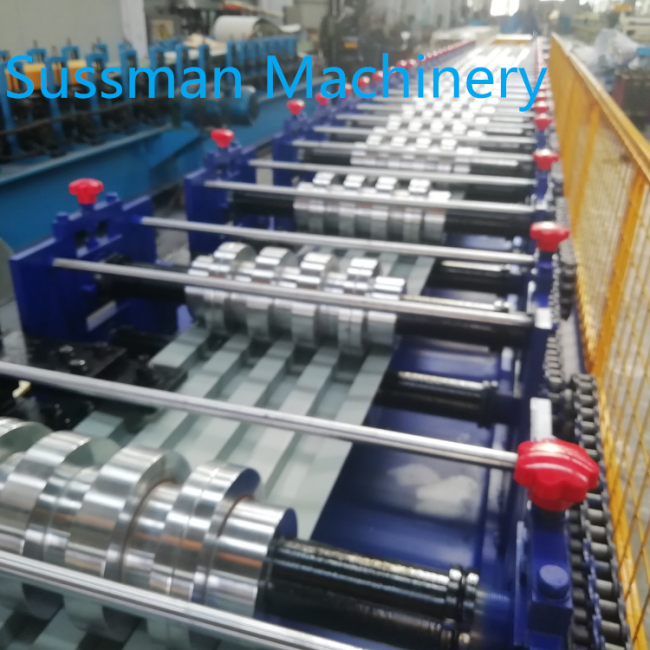

| 1.7 | Roller stations | About 25 stations |
| 1.8 | Roller material | 45#forge steel, coated with chrome |
| 1.9 | Shaft diameter | Φ70mm,material is 45# forge steel |
| 1.10 | Transmission | By chain 1 inch |
| 1.11 | Material of chain | 45# forged steel with frequency quenching, 12A |
| 1.12 | Material of cutting | Cr12Mov with quench HRC58-62° |
| 1.13 | Tolerance | 6m+-0.5mm |
| 1.14 | Frame | H type steel |
| 1.15 | Voltage | 380v, 50hz, 3phases |
Main Components
| S.N |
Equipment name |
Quantity |
| 1. |
5T manual un-coiler
|
1 set |
| 2. |
Main roll forming machine system |
1 set |
| 3. |

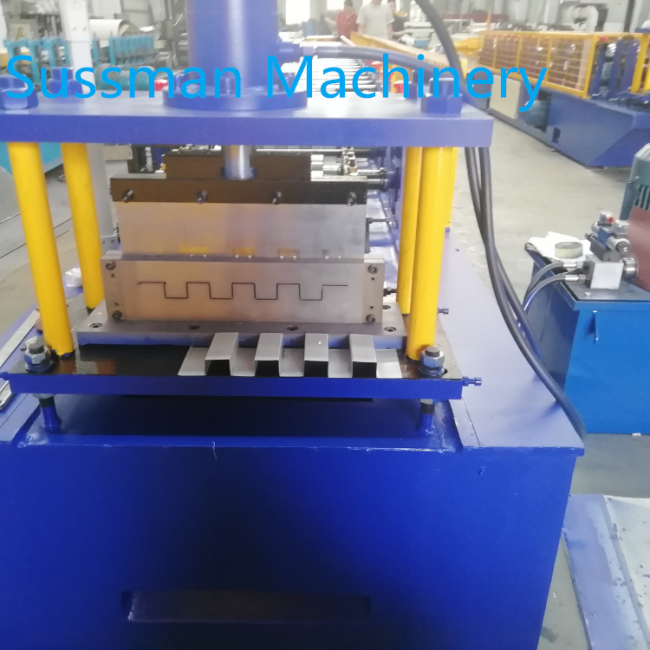

Hydraulic cutting |
1 set |
| 4. |
Control system (including control box) |
1 set |
| 5. |
2m Out tables |
2 sets |
Working Flow
Decoiler----Feeding---Roll forming---Cutting---Run out tables

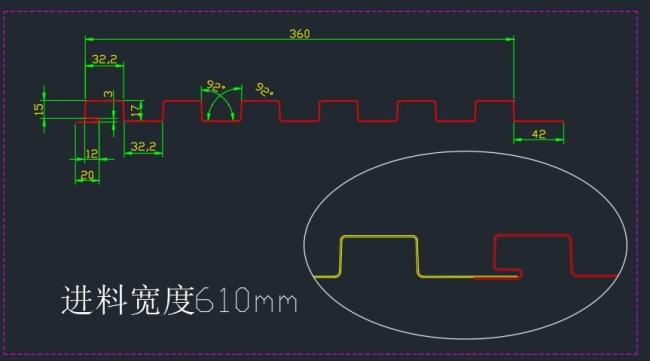

Profile drawing
Application
The finished product of wall panel is widely used in the construction of various industrial plants, villages, warehouses, supermarkets, hotels, exhibition, family construction, shopping malls shutter doors and etc.
It has the advantage of beautiful, classical appearance and grace taste.
