0.3-0.8mm Thickness 3*4inches 4*5inches Square Round Water Downspout Roll Forming Machine
0.3-0.8mm Thickness 3*4inches 4*5inches Square Round Water Downspout Roll Forming Machine
Water Downspout machine technical parameter
Use | ROOF&Others |
Production Capacity | 25m/min Others |
Place of Origin | China |
Voltage | 220 V 380 V 415 V 440 V Other |
Dimension(L*W*H) | 18*1*1.5 Meter |
Weight | 8000 KGS |
Certification | CE SGS ISO |
Warranty | one year |
Key Selling Points | Fastest speed Remote Production Control Best solution Best components Easy installation Easy operation Mini space Full lifetime service |
Rolling thinckness | 0.3-0.8 mm |
Feeding width | 300 mm 400mm 450mm Other |
Machinery Test Report | Provided |
Video outgoing-inspection | Provided |
Core Components | Pressure vessel, Motor, Bearing, Gear, Pump, Gearbox, Engine, PLC |
Main Components
| Commodity & Description | Quantity |
| 5T manual uncoiler | 1 set |
| feed and guiding device | 1 set |
| Main roll forming machine | 1 set |
| Straighten device | 1 set |
| Hydraulic cutting equipment | 1 set |
| Output table | 1 set |
| Main drive | 1 set |
| Hydraulic system | 1 set |
| Controlling system (including cabinet) | 1 set |
| Downpipe elbow bending machine | 1 set |
| Seaming machine | 1 set |
Machine Components
The Whole downpipe roll forming line comprised of 3T manual uncoiler, main drive, infeed guiding, roll forming machine, straighten device, cutting equipment, hydraulic system, electrical controlling system, out put table. Elbow and seaming machine
Uncoiling – Infeed Guiding– Roll forming – straighten – Hydraulic cutting – Run-out table-elbow-seaming
Profiles of Square Pipe

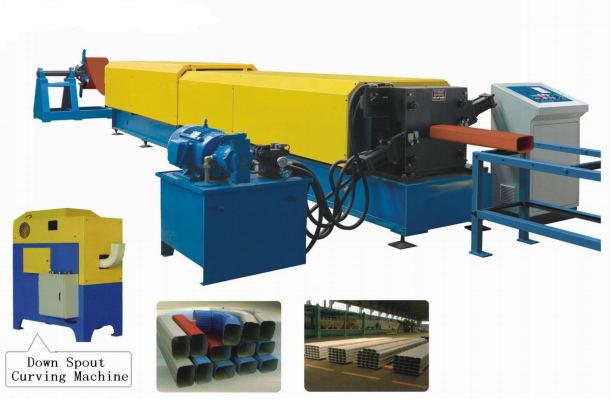

Photo of machine
