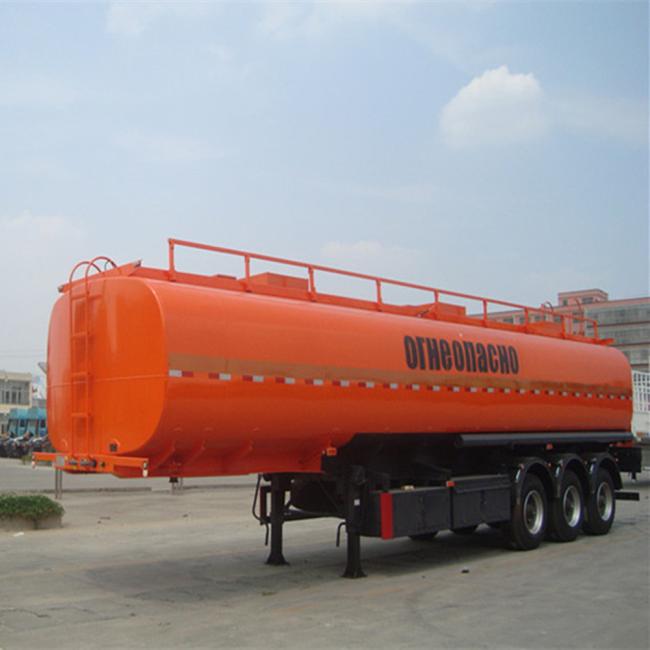

TITAN Fuel tanker Trailer ,40m3/60m3 fuel tanker trailer ,carbon steel oil tank trailer
TITAN Fuel tanker Trailer 32000-60000liters
| Manufacturer | Titan Vehicle Co.,Ltd |
| Product type | Fuel Tanker Semi Trailer Series |
| Tank Body | |
| Shape | Round or Square (optional) |
| Dimension | 9500-13500*2500*3900mm(Exact size depends on the final design) |
| Tare weight | About 8000kgs-12800kgs |
| Capacity | 32000-60000liters |
| The tank body material | 5mm or 6mm/Q235 Carbon Steel Plate/ Aluminum Alloy 5083/ Stainless Steel |
| The Fore side and back side head | 6mm or 7mm/Q235 Carbon Steel Plate/ Aluminum Alloy 5083/ Stainless Steel |
| Manhole Cover | Stainless steel manhole,diameter 500mm,2/3/4 pieces |
| Bottom Valve | Stainless steel bottom valve |
| Discharging valve | Diameter is 3 or 4 inch |
| Compartments | optional |
| Discharging Pipe | 4”rubber tube ,2 pieces,6m /each |
| Chassis | |
| Main Beams | Steel Q345 or Aluminum Alloy |
| Axle | 13T/16T,FUWA/BPW Brand |
| ABS system | Optional |
| Suspension | Mechanical suspension (Germany type or America type) or Air suspension (china brand or BPW brand ) |
| Leaf Spring | 90(W)mm*13(Thickness)mm*10Layer,optional |
| Tires | 12.R22.5/315 80R22.5/11.00R20/12.00R20 Brand can be optional |
| Rim | 9.00-22.5/8.00-20/8.5-20 China brand |
| King pin | JOST 2.00 or 3.5 inch |
| ABS | Optional |
| Valve | WABCO valve |
| Spare Tire Carrier | 2pieces |
| LED Light | One set |
| Accessories | One standard tool box |
| Shipping terms | By bulk cargo ,RORO or 40HQ containers |
| Note : buyer | According to the requirement of buyer |
TITAN Fuel tanker Trailer ,40m3/60m3 fuel tanker trailer ,carbon steel oil tank trailer
TITAN Fuel tanker Trailer ,40m3/60m3 fuel tanker trailer ,carbon steel oil tank trailer
Techenics Characteristic :
1,Integral side protective PVC hose box:Hose box use,both beautiful and practical ,and can effectively reduce the vehicle weight
2,Safe and reliable Ladder :
The ladder can install according to the requirment in the front or rear, material can choose stainless steel and aluminum alloy materials,has better corrosion resistance and oxidation resistance,not easy to rust,more safety and reliable .
3,Technology introduction:
At the bottom of the pipeline system designed for ADR standards,options with load,oil and gas recovery system.Aluminum alloy explosion-proof manhole covers,non-slip paint ,aluminum alloy folding guardrail integral side protective device and control toolbox
Video link http://https://youtu.be/5byl2xiVH8c (3 axle 42000liters fuel tank trailer )
https://youtu.be/hPEqCi0rasw (3 axle Aluminum Alloy)
http://https://youtu.be/eSSMS92w7ZU (3 axle 42CBM oil tank trailer)
https://youtu.be/xNVyRmyX-HI (2 axle fuel tank trailer )
