TITAN 4 axles 50 ton to 100 ton lowboy semi truck trailer for sale
TITAN 4 axles 50 ton to 100 ton lowboy semi truck trailer
Titan produces the high quality TITAN 4 axles 50 ton to 100 ton lowboy semi truck trailer longitudinal girder is a ladder type, which effectively reduces the bearing height and is an ideal transportation tool for transportation engineering machinery and light distribution.Low-loader semi-trailer could be loading large-scale engineering equipment’s, bulk cargoes or longer items as well. It can
carry one 20' container, with low loading height.
Product characteristics:
1.The lowboy trailer frame is a step type, the longitudinal beam interface is the type of work, with high rigidity and high strength.
2.The main surface of the platform is low, which guarantees the stability of transportation and is suitable for transportation of all kinds of engineering machinery, large equipment and steel.
3.Carbon dioxide gas protection welding, making vehicles more beautiful, rugged and durable.

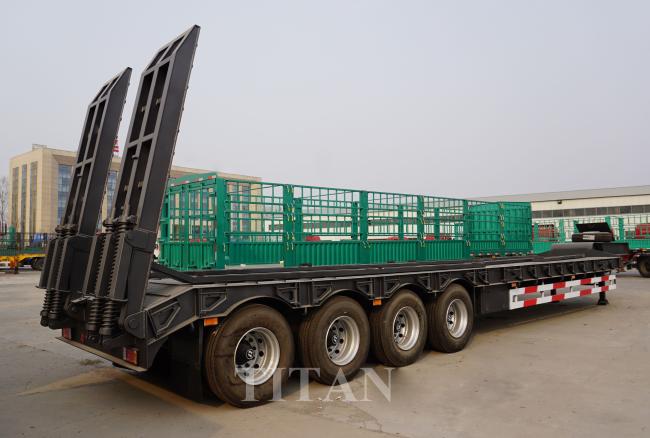

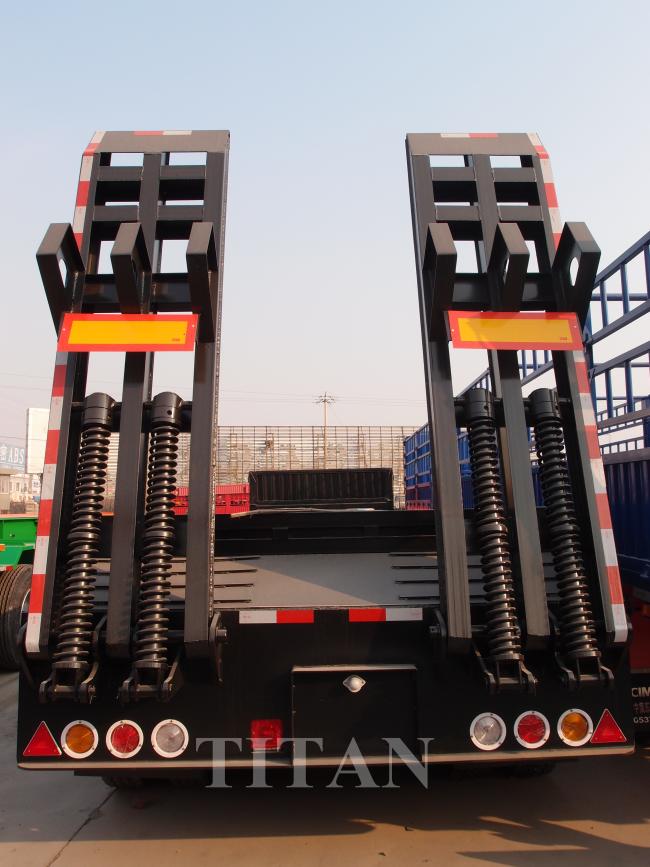

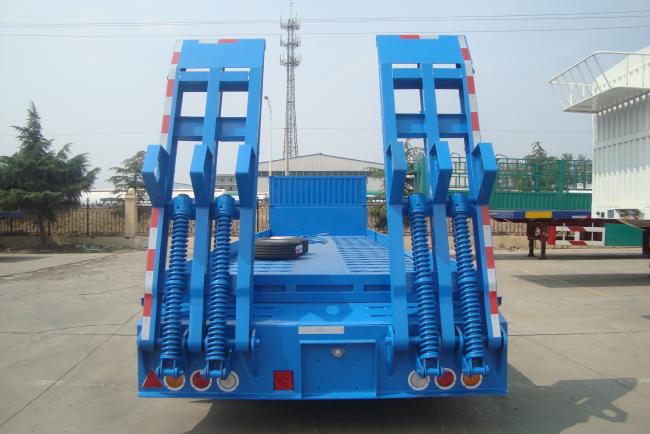

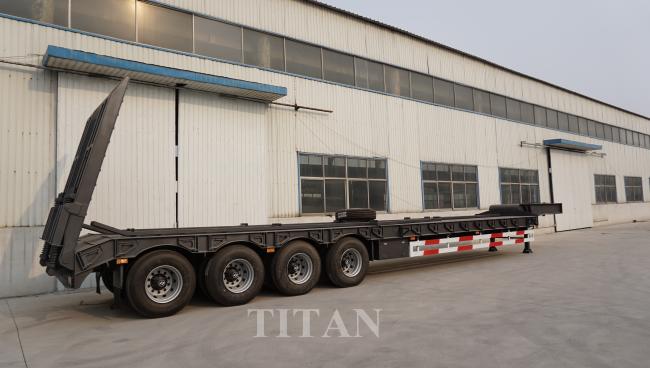

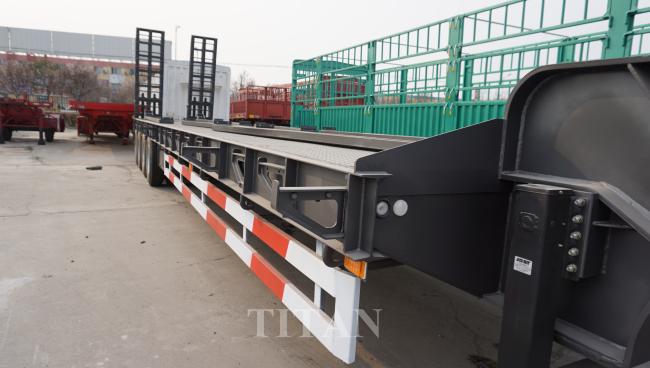

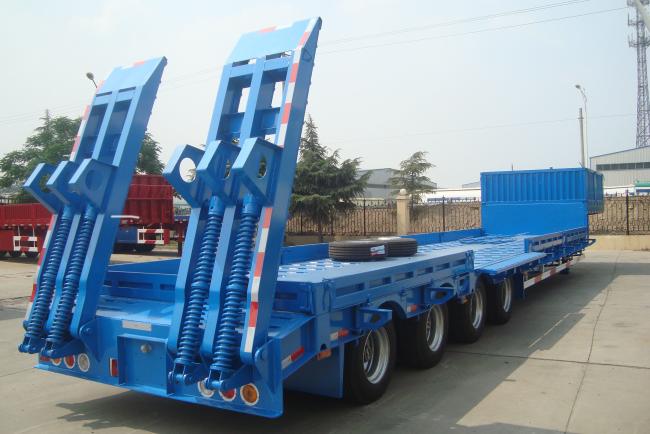

TITAN 4 axles 50 ton to 100 ton lowboy semi truck trailer
TITAN 4 axles 50 ton to 100 ton lowboy semi truck trailer
TITAN 4 axles 50 ton to 100 ton lowboy semi truck trailer
TITAN 4 axles 50 ton to 100 ton lowboy semi truck trailer
TITAN 4 axles 50 ton to 100 ton lowboy semi truck trailer
TITAN 4 axles 50 ton to 100 ton lowboy semi truck trailer
TITAN 4 axles 50 ton to 100 ton lowboy semi truck trailer
TITAN 4 axles 50 ton to 100 ton lowboy semi truck trailer
| Rmark | The specification just for your reference, we can bulid trailer as your specific requirements |
| Dimension | 11000mm-16000mm x 3000-3500mm x 1650 mm (Standard or Customized ) |
| Loading Capatity | 40 T - 150 T |
| Axle | 13T/16T, BPW/FUWA/Chinesebrand |
| Rim | 6.5-20/7.5-20/8.00-20/8.5-20 |
| Tire | 8.25R20/10.00R20/11.00R20/12.00R20 |
| Suspension | 4 axles Mechanical suspension or Air Suspension (Chinese brand or BPW brand) |
| King Pin | JOST brand 2.0 or 3.5 inch (bolted or welded type) |
| Landing Gear | JOST brand or Chinese brand 28 Tons |
| Main Beam | Height:450mm-580mm Q354B steel |
| Side Beam | 16mm-30mm "I" Steel |
| Ladder | Manually operated or Hydraulic type |
| Gooseneck | Optional |
| BrakeChamber | WABCO (brake system) |
| ABS | Optional |
| Light | LED light |
| Voltage | 24V |
| Socket | 7-Pin Socket |
| Customization | Customized heavy duty low bed trailer Available , this specification just for you reference |
Vedio
| 3 Axles 80 Ton Low Bed Trailer | https://youtu.be/YT_SP-4hgO4 |
| Low bed trailer | https://youtu.be/jZ2YvWe5TWA |
| Extendable Lowbed Trailer | https://youtu.be/t690D4ibMqE |
--Our company provide high quality products and reliable after-sale service for customer .
