What is the price on your 3 axle bitumen asphalt crude oil Tanker Trailer
3 axle bitumen asphalt crude oil Tanker Trailer
Titan produces the high quality bitumen asphalt crude oil Tanker Trailer is specially designed to transport bitumen,axle adopted BPW, FUWA or Certificated Chinese Axles and parking leg and king pin adopt JOST or Chinese brand.Compartment sizes, capacities, and bulkhead configurations of fuel tanker semi trailer can be customized according to the requirements of the customers, and we will try their best to meet the needs of customers.
Introduction of bitument tanker trailer
TITAN bitumen tanker trailer are manufactured using carbon steel and offer superior temperature
build up and retention. The use of heavy duty, heat retaining insulation aids in superior heat
preservation within the tanker. Steel bitumen tanker trailer are very durable designs,
and resist corrosion, resulting in a longer, lower whole of life cost. Using a carbon steel rollover
coaming on both designs means no more rust or discolouration down the sides of your tanker.
Designed with optimum functionality in mind, these tankers have pipework created to maximize
flow and minimize product retention.

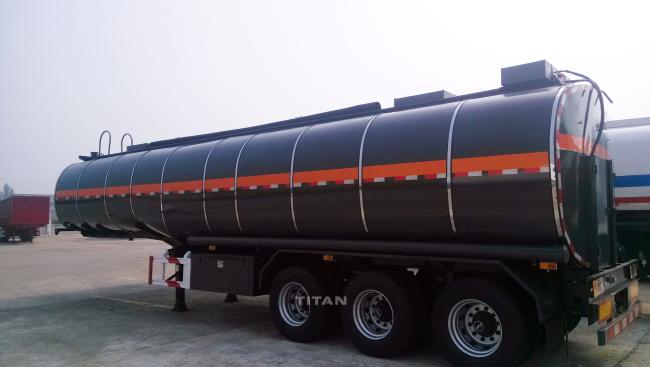

3 axle bitumen asphalt crude oil Tanker Trailer

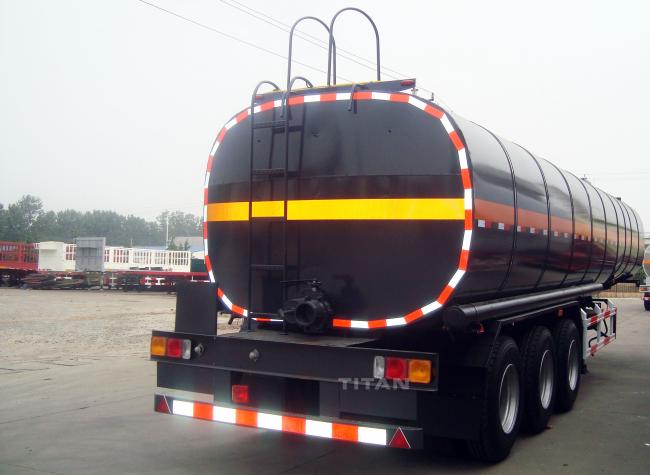

3 axle bitumen asphalt crude oil Tanker Trailer

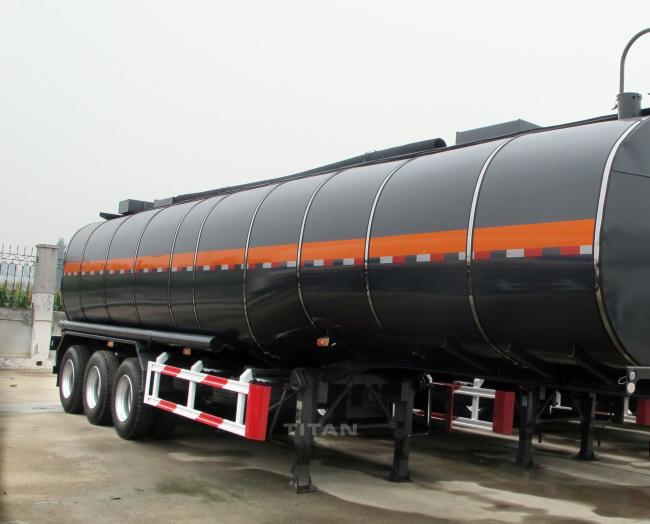

3 axle bitumen asphalt crude oil Tanker Trailer

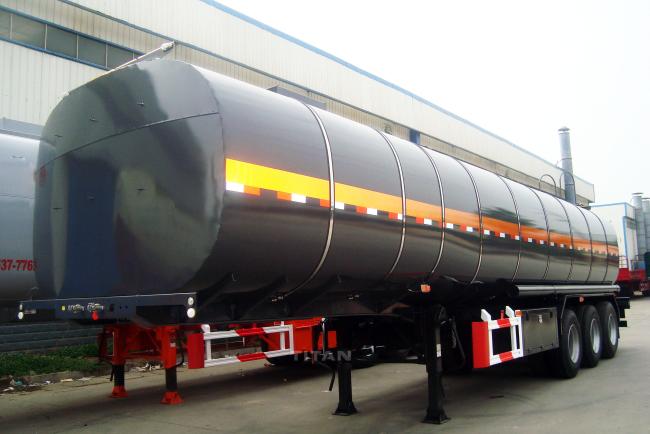

3 axle bitumen asphalt crude oil Tanker Trailer

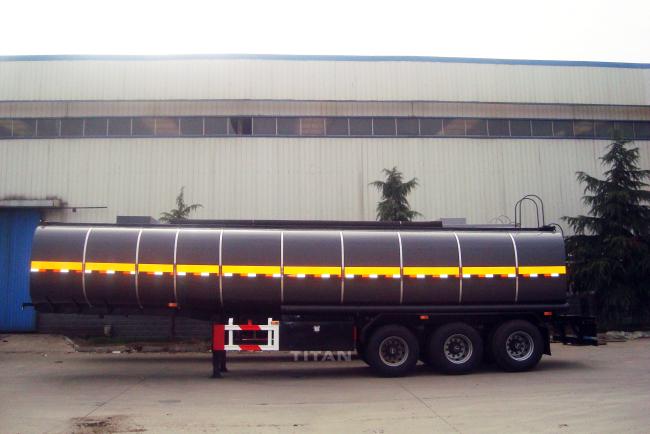

3 axle bitumen asphalt crude oil Tanker Trailer
Specification of bitumen tanker trailer:
| Product | 3 axle bitumen asphalt crude oil Tanker Trailer |
| Dimension | Overall (L*W*H): 12000*2500*3950mm |
| Tank Body | Loading capacity: 40000 liters to 50000 liters loading capacity |
| Compartments: 1 compartments | |
| Material: carbon steel material | |
| Thickness: 5mm | |
| Brake system | Emergency relay valve: WABCO Brand |
| Braking chamber: 6 sets of dual air brake | |
| ABS System: KEMI Brand | |
| Moving Parts | Axle: 3x13ton FUWA axles (16 ton braking performance) |
| Tire/Rim: 11.00R20 radial 12 sets tire /8.0-20 | |
| Suspension System | Reinforced plate spring balanced suspension |
| Leaf-spring: 10pieces with width of 90mm | |
| Electrics | 24 volt electrical system rear lights |
| King pin | 2" (50#) bolted type or 3.5" 90# |
| Landing Leg Support | 28Ton |
| Optional Equipment | Emergency Foot Valve, Oil-gas gathering System, Anti-overflow System |
| Accessories | 2 tool boxes + 2 spare tire racks +bumpers( side and rear) |
Vedio
| 3 axle 42000liters fuel tank trailer | http://youtu.be/5byl2xiVH8c |
| 3 axle Aluminum Alloy | https://youtu.be/hPEqCi0rasw |
| 3 axle 42CBM oil tank trailer | https://youtu.be/eSSMS92w7ZU |
| 2 axle fuel tank trailer | https://youtu.be/xNVyRmyX-HI |
--Our company provide high quality products and reliable after-sale service for customer .
