TITAN 3 axle oil semi trailer tankers with 40,000 Liter capacity for sale
TITAN 3 axle oil semi trailer tankers with 40,000 Liter capacity
The 3 axle oil semi trailer tankers is designed to store and transport gasoline and diesel fuels. It is commonly used in gas station, chemical factories and transportation companies.
Our oil tank trailer is primarily composed of vehicle frame, tank loading and unloading system and various protective devices. It features aesthetical appearance, rational structure and reliable performance.
Liquid, powder, granular objects are mostly in tanks, jars, boxes, bags and other household utensils for packaging, from the factory to use the site, after a lot of loading and unloading, and are almost manual loading and unloading, the intensity of labor is very big. The loading and unloading conditions and labor intensity of the loading and unloading workers are obviously improved.
In order to suit customers' varied demands, the tank body can be made using different types of materials, like carbon steel, stainless steel, aluminum alloy and plastic, etc.
Titan Vehicle 3 axle oil semi trailer tankers-----Specification
| Manufacturer | Titan Vehicle Co.,Ltd |
| Product type | Fuel Tanker Semi Trailer Series |
| Tank Body | |
| Shape | Round or Square (optional) |
| Dimension | 11500*2500*3900mm(Exact size depends on the final design) |
| Tare weight | About 8000kgs-12800kgs |
| Capacity | 45000liters |
| The tank body material | 5mm or 6mm/Q235 Carbon Steel Plate/ Aluminum Alloy 5083/ Stainless Steel |
| The Fore side and back side head | 6mm or 7mm/Q235 Carbon Steel Plate/ Aluminum Alloy 5083/ Stainless Steel |
| Manhole Cover | Stainless steel manhole,diameter 500mm,2/3/4 pieces |
| Bottom Valve | Stainless steel bottom valve |
| Discharging valve | Diameter is 3 or 4 inch |
| Compartments | 8 compartment 6-4-6-4-2-2-4-4 |
| Discharging Pipe | 4”rubber tube ,2 pieces,6m /each |
| Chassis | |
| Main Beams | Steel Q345 or Aluminum Alloy |
| Axle | 13T/16T,FUWA/BPW Brand |
| ABS system | Optional |
| Suspension | Mechanical suspension (Germany type or America type) or Air suspension (china brand or BPW brand ) |
| Leaf Spring | 90(W)mm*13(Thickness)mm*10Layer,optional |
| Tires | 12.R22.5/315 80R22.5/11.00R20/12.00R20 Brand can be optional |
| Rim | 9.00-22.5/8.00-20/8.5-20 China brand |
| King pin | JOST 2.00 or 3.5 inch |
| ABS | Optional |
| Valve | WABCO valve |
| Spare Tire Carrier | 2pieces |
| LED Light | One set |
| Accessories | One standard tool box |
| Shipping terms | By bulk cargo ,RORO or 40HQ containers |
| Note : buyer | According to the requirement of buyer |
| 3 axle 42000liters fuel tank trailer | http://youtu.be/5byl2xiVH8c |
| 3 axle Aluminum Alloy | https://youtu.be/hPEqCi0rasw |
| 3 axle 42CBM oil tank trailer | https://youtu.be/eSSMS92w7ZU |
| 2 axle fuel tank trailer | https://youtu.be/xNVyRmyX-HI |
Titan 3 axle oil semi trailer tankers-----Main featurer :
1. Splice plate machinery: one-side welding two-side forming, beautiful and smooth.
2. Tank Rolling machine: welding tanker body, sealing plate and anti-wave baffles together, greatly improve production efficient.
3. Bending pipe machine: pipe line of tanker can one-time forming, no need welding, Tanker body with carbon steel material, easy repair and low maintenance costs.
4. Professional painting workshop, high paints adhesion.
5. Advanced fuel heating system, so that the heavy fuel oil can be discharged without difficulties.
6. Reinforced ladder for cleaning and repairing oil tanker.
7. Bracket: single-armed strengthen structure, avoid the tanker deformation and welding crack.
8. Anti-wave baffles: adopt T610L high strength steel plate can increase the yield and tensile strength, also low the tare weight of tanker.
9. Plasma cutting machine guarantee the blanking material accuracy.
10.Painting: sand blasting, primer, top coating and spraying wax, ensure the quality and good-looking
11. strengthen main beam structure
12. Professional packing way can save the sea freight cost for customer.
13. Installed valve protection box, in order to prevent the leakage of transport medium from causing environment pollution and personal injuries
14. Low center of gravity, good stability.

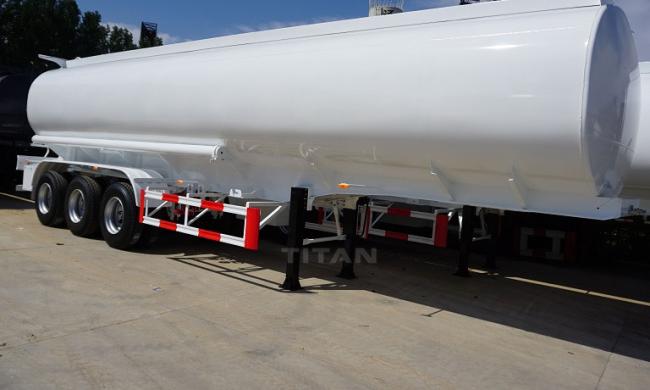

Titan vehicel 3 axle oil semi trailer tankers
Titan vehicel 3 axle oil semi trailer tankers
Titan vehicel 3 axle oil semi trailer tankers
Titan vehicel 3 axle oil semi trailer tankers
Titan vehicel 3 axle oil semi trailer tankers
---If you interested in our product ,please contact us as soon as possible!
---We must provide high quality products and best service to our customers.
