TITAN high quality lubricant oil loading tanker trailer with 3 axle for sale
TITAN high quality lubricant oil loading tanker trailer with 3 axle
TITAN product the high quality lubricant oil loading tanker trailer is used transfer water,petroleum, crude oil, diesel, gasoline fuel, asphalt, chemical, corrosive etc.
The oil tank trailer is designed to store and transport gasoline and diesel fuels. It is commonly used in gas station, chemical factories and transportation companies.
In order to suit customers' varied demands, the tank body can be made using different types of materials, like carbon steel, stainless steel, aluminum alloy and plastic, etc.
Titan Vehicle lubricant oil loading tanker trailer-----Specification
| Manufacturer | Titan Vehicle Co.,Ltd |
| Product type | Fuel Tanker Semi Trailer Series |
| Tank Body | |
| Shape | Round or Square (optional) |
| Dimension | 11500*2500*3900mm(Exact size depends on the final design) |
| Tare weight | About 8000kgs-12800kgs |
| Capacity | 45000liters |
| The tank body material | 5mm or 6mm/Q235 Carbon Steel Plate/ Aluminum Alloy 5083/ Stainless Steel |
| The Fore side and back side head | 6mm or 7mm/Q235 Carbon Steel Plate/ Aluminum Alloy 5083/ Stainless Steel |
| Manhole Cover | Stainless steel manhole,diameter 500mm,2/3/4 pieces |
| Bottom Valve | Stainless steel bottom valve |
| Discharging valve | Diameter is 3 or 4 inch |
| Compartments | 8 compartment 6-4-6-4-2-2-4-4 |
| Discharging Pipe | 4”rubber tube ,2 pieces,6m /each |
| Chassis | |
| Main Beams | Steel Q345 or Aluminum Alloy |
| Axle | 13T/16T,FUWA/BPW Brand |
| ABS system | Optional |
| Suspension | Mechanical suspension (Germany type or America type) or Air suspension (china brand or BPW brand ) |
| Leaf Spring | 90(W)mm*13(Thickness)mm*10Layer,optional |
| Tires | 12.R22.5/315 80R22.5/11.00R20/12.00R20 Brand can be optional |
| Rim | 9.00-22.5/8.00-20/8.5-20 China brand |
| King pin | JOST 2.00 or 3.5 inch |
| ABS | Optional |
| Valve | WABCO valve |
| Spare Tire Carrier | 2pieces |
| LED Light | One set |
| Accessories | One standard tool box |
| Shipping terms | By bulk cargo ,RORO or 40HQ containers |
| Note : buyer | According to the requirement of buyer |
| 3 axle 42000liters fuel tank trailer | http://youtu.be/5byl2xiVH8c |
| 3 axle Aluminum Alloy | https://youtu.be/hPEqCi0rasw |
| 3 axle 42CBM oil tank trailer | https://youtu.be/eSSMS92w7ZU |
| 2 axle fuel tank trailer | https://youtu.be/xNVyRmyX-HI |
Advantages of the lubricant oil loading tanker trailer
1.The cross section of tank is international standard small circle arc so that the stress of tank is more uniform and stronger
2.The thickness of plate can meet international standard
3.The tank structure is low in center of gravity and excellent in stability
4.The heel protection facility is install on top of tank to improve safety of vehicle
5.The loading and unloading system is designed according to European standard ,being safe and environment friendly.
6.The ladder and roof walkway are design for skid resistance.
7.The back protection material is high-strength steel,the distance of which is large to prevent from drilling and collision in order to improve safety of vehicle.

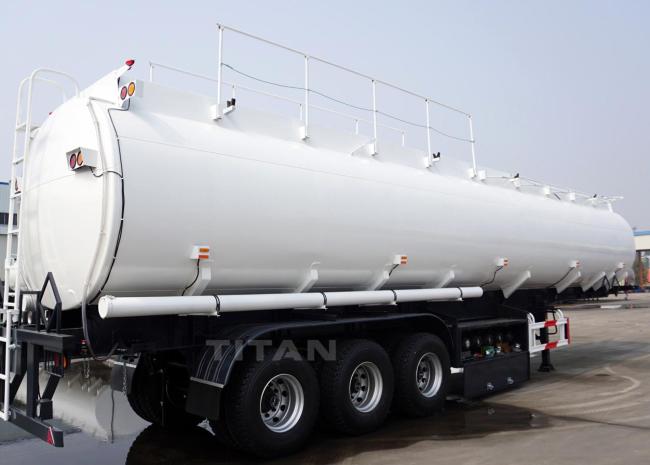

TITAN lubricant oil loading tanker trailer

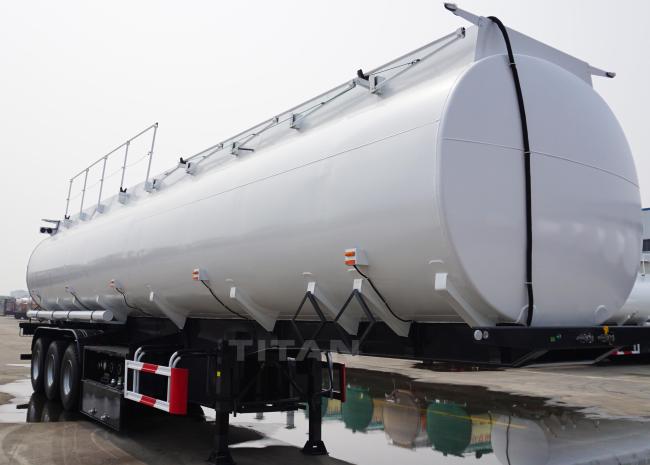

TITAN lubricant oil loading tanker trailer

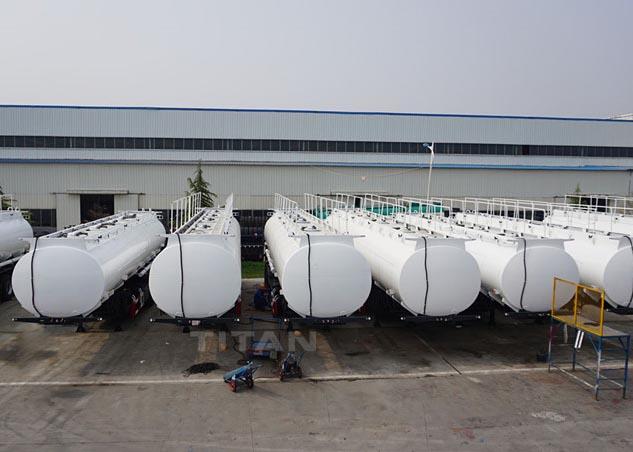

TITAN lubricant oil loading tanker trailer

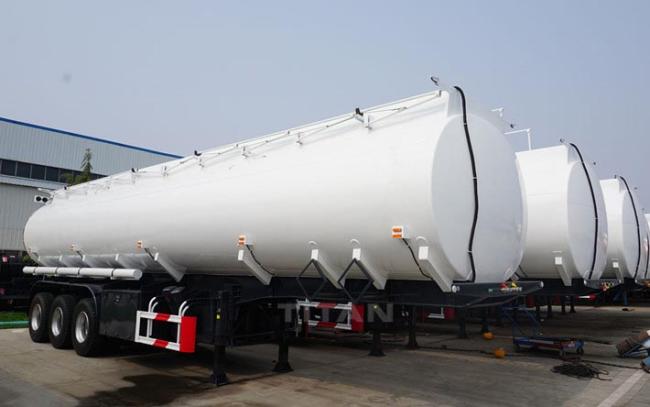

TITAN lubricant oil loading tanker trailer
TITAN lubricant oil loading tanker trailer
---If you interested in our product ,please contact us as soon as possible!
---We must provide high quality products and best service to our customers.
All customers and friends are warmly welcomed to our company for visit and business negotiations TITAN will as always do our best effort to produce the most duarable TITAN Container flat bed Semi trailer with front wall and give the client best service.Welcome to China ,welcome to TITAN.
